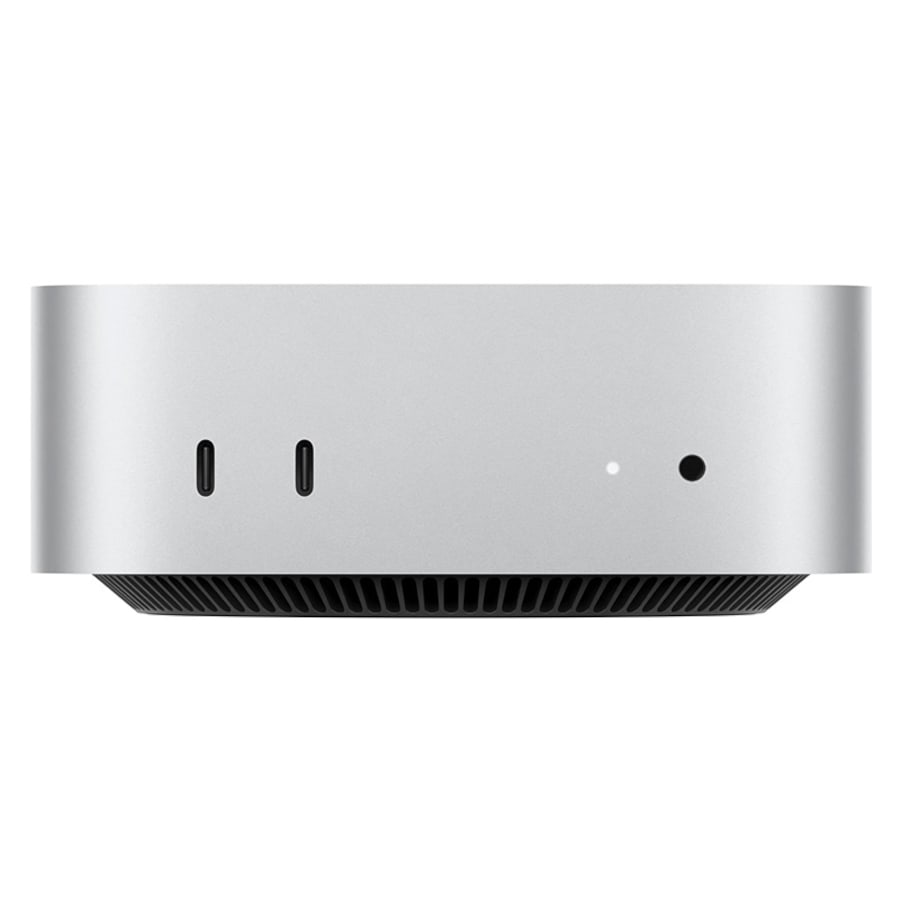

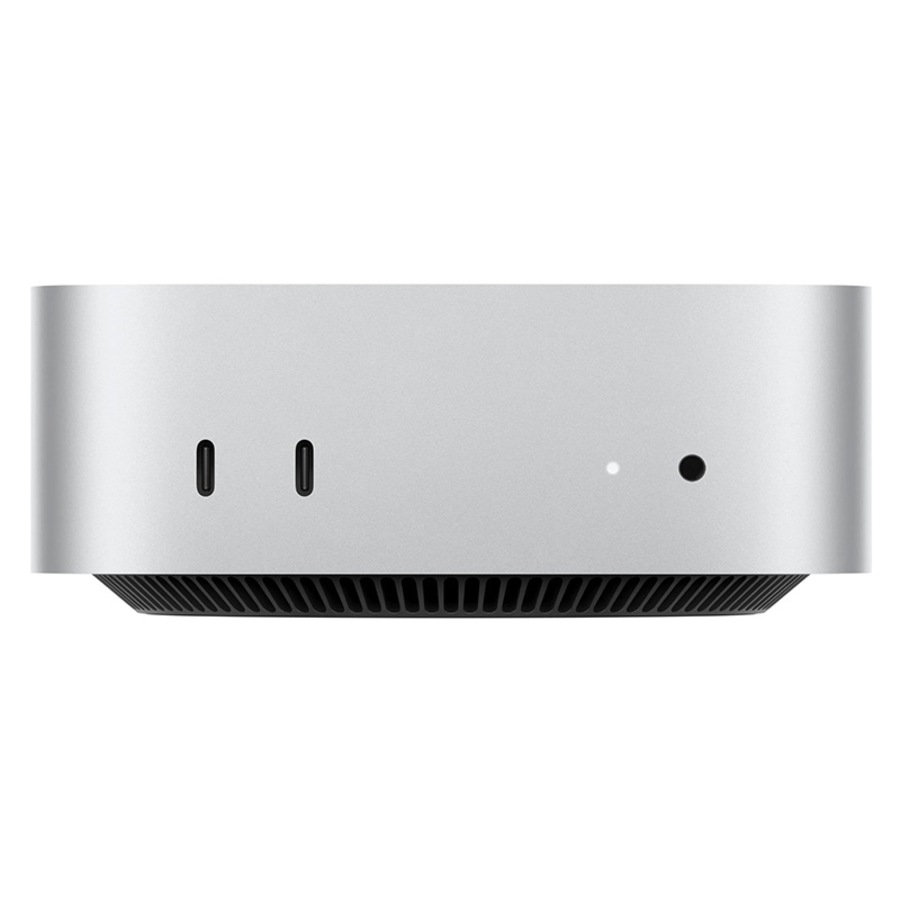

Apple Mac Mini - M4 10-core CPU / 10-core GPU 512GB SSD 16GB RAM - Silver (MU9E3X/A)

Chip

Apple M4 chip

10-core CPU with 4 performance cores and 6 efficiency cores

10-core GPU

Hardware-accelerated ray tracing

16-core Neural Engine

120GB/s memory bandwidth

Media Engine

Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW

Video decode engine

Video encode engine

ProRes encode and decode engine

AV1 decode

Apple Intelligence

Apple Intelligence is the personal intelligence system that helps you write, express yourself and get things done effortlessly. With groundbreaking privacy protections, it gives you peace of mind that no-one else can access your data - not even Apple.

*Apple Intelligence is available in beta on all Mac models with M1 and later, with Siri and device language set to US English, as a macOS Sequoia update.

Memory

16GB unified memory

Storage

512GB SSD

*1GB = 1 billion bytes and 1TB = 1 trillion bytes; actual formatted capacity less.

Display Support

M4

Simultaneously supports up to three displays:

Up to three displays: Two displays with up to 6K resolution at 60Hz over Thunderbolt and one display with up to 5K resolution at 60Hz over Thunderbolt or 4K resolution at 60Hz over HDMI

Up to two displays: One display with up to 5K resolution at 60Hz over Thunderbolt and one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz over Thunderbolt or HDMI

Thunderbolt 4 digital video output

Support for native DisplayPort 1.4 output over USB-C

Video Playback

Supported formats include HEVC, H.264, AV1 and ProRes

HDR with Dolby Vision, HDR10+/HDR10 and HLG

Audio Playback

Supported formats include AAC, MP3, Apple Lossless, FLAC, Dolby Digital, Dolby Digital Plus and Dolby Atmos

Audio

Built-in speaker

3.5-mm headphone jack with advanced support for high-impedance headphones

HDMI port supports multichannel audio output

Connections and Expansion

On front:

Two USB-C ports with support for USB 3 (up to 10 Gbps)

3.5-mm headphone jack

On back (M4):

Gigabit Ethernet port

HDMI port

Three Thunderbolt 4 (USB-C) ports with support for:

Thunderbolt 4 (up to 40 Gbps)

USB 4 (up to 40 Gbps)

DisplayPort

Communications

Wi-Fi

Wi-Fi 6E (802.11ax)3

Bluetooth

Bluetooth 5.3

Ethernet

10/100/1000BASE-T Gigabit Ethernet (RJ-45 connector)

Size and Weight

Height: 5.0 cm (2.0 inches)

Width: 12.7 cm (5.0 inches)

Depth: 12.7 cm (5.0 inches)

Weight (M4): 0.67 kg (1.5 pounds)

Electrical and Operating Requirements

Line voltage: 100-240V AC

Frequency: 50Hz to 60Hz, single phase

Maximum continuous power: 155W

Operating temperature: 5 to 35 C (50 to 95 F)

Storage temperature: -40 to 47 C (-40 to 116 F)

Relative humidity: 5% to 90% noncondensing

Operating altitude: Tested up to 5,000 metres (16,400 feet)

Typical acoustical performance: Sound pressure level (operator position): 5 dBA at idle

*Acoustics measured from typical operator position sitting in front of a standard Mac mini system. Acoustics may vary by configuration.

Operating System

macOS
