[CPE710] 5GHz AC 867Mbps 23dBi High-gain Directional Outdoor CPE IP65

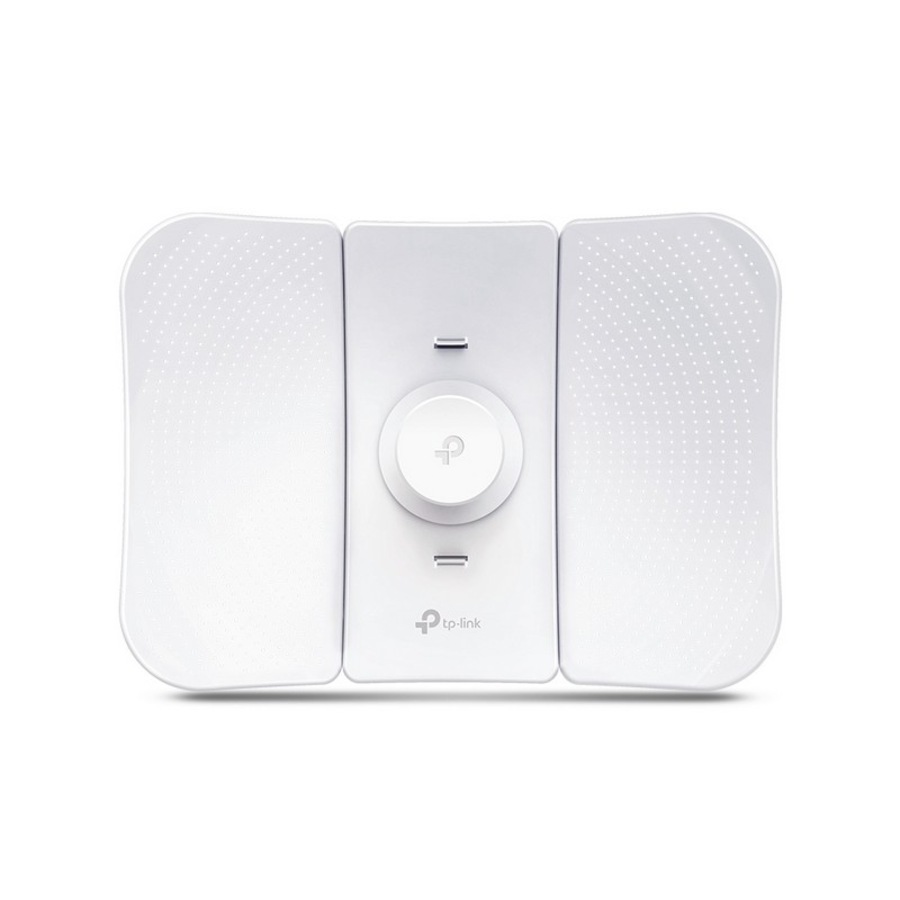

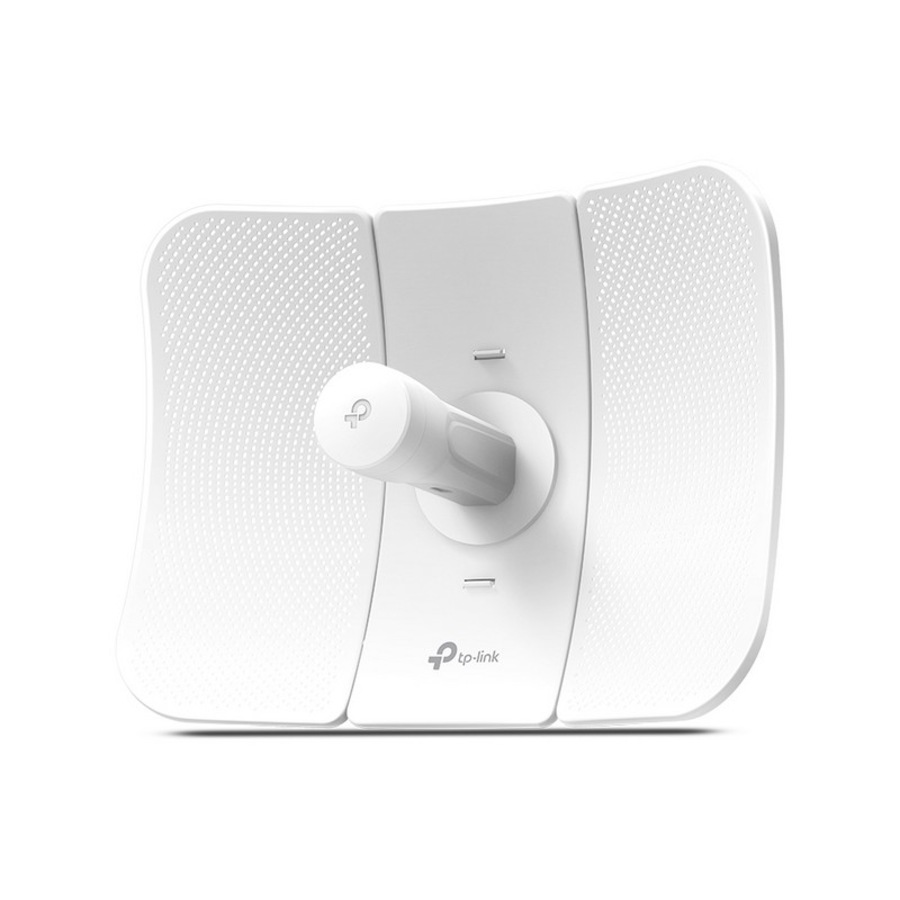

TP-Link CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE

• 802.11ac for up to 867Mbps on 5GHz wireless data rate• 23dBi high-gain directional 2x2 MIMO, ideal for long-distance application• Excellent beam directivity, improved latency and noise cancellation• Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds• Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability• Pharos Control gives administrators a free, centralized management system• Passive PoE supports to allow flexible deployment and convenient installation Learn more about Pharos Control >

HARDWARE FEATURES

• Processor :Qualcomm 750MHz CPU, MIPS 74Kc
• Memory :128 MB DDR2 RAM, 16 MB Flash
• Interface :1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
  1 Reset Button
• Power Supply :Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
  Voltage range: 16-27V DC
• Dimensions ( W x D x H ) :366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
• Antenna Gain :23 dBi
• Antenna Beamwidth :9° (Azimuth)/7° (Elevation)
• Protection :15 KV ESD Protection
  6 KV Lightning Protection
• Enclosure :Material: Outdoor PC stabilized plastic
  Weatherproof: IP65 water and dust proof design

WIRELESS FEATURES

• Wireless Standards :IEEE 802.11a/n/ac
• Wireless Speeds :Up to 867 Mbps (80 MHz, Dynamic)
  Up to 400 Mbps (40 MHz, Dynamic)
  Up to 173.4 Mbps (20 MHz, Dynamic)
• Frequency :5.15-5.85 GHz
• Transmit Power :Max. 27 dBm (Adjustable power by 1dBm)

SOFTWARE FEATURES

• Network Configuration :WAN: Static/ Dynamic/ PPPoE
  LAN: Static/ Dynamic/ DHCP
  Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger
  Security: SPI Firewall/ Ping Forbidden/ DoS Protection
  Access Control
  Static Routing
  Bandwidth Control
  IP & MAC Binding
• Wireless Configurations :Selectable Channel Width: 20/40/80MHz
  Auto Channel Selection
  Transmit Power Control
  Dynamic Frequency Selection(DFS)
  WDS Enable/ Disable
  Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
  SSID Broadcast Enable/ Disable
  Multi-SSID with VLAN Tagging(AP Mode only)
  Distance/ ACK Timeout Setting
  Wireless MAC Address Filter
  Wireless Advanced:
  Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia
  Long Range PtP
• Management :Discovery and Remote Management via Pharos Control application
  HTTP/ HTTPS Web-based management
  System log
  SNMP Agent(v2c)
  Ping Watch Dog
  Dynamic DDNS
  SSH Server
• System Tools :Indicators:Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory
  Monitors: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP
  Spectrum Analyzer
  Speed Test
  Ping
  Traceroute
  Antenna Alignment
• System-level Optimizations :Optimized IGMP Snooping / Proxy for multicast applications

POE ADAPTER FEATURES

• Dimensions(W x D x H) :85.8x43.9x29.7 mm
• Interfaces :1 AC Jack with Earth Ground
  1x 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)
  1x 10/100/1000 Mbps Shielded Ethernet Port (Data)
• Button :Remote Reset Button
• Power Status LEDs :Green
• Input :100-240VAC, 50/60Hz
• Output :24VDC, 0.6A Max
  +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
• Efficiency :>84.29%
• Certifications :CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

OTHERS

• Certification :CE, FCC, RoHS, IP65, IC

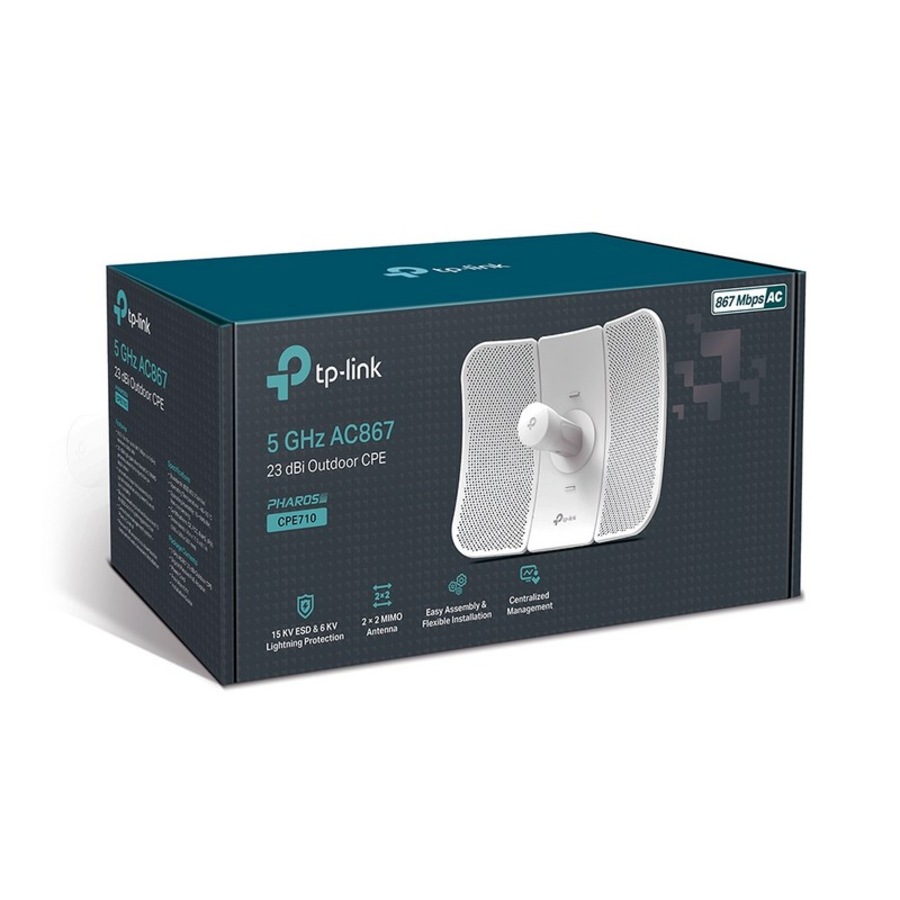

• Package Contents :Outdoor Wireless CPE
  24V 0.5A Passive PoE Adapter
  Pole Mounting Kits
  AC Power Cord
  Installation Guide
• System Requirements :Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
  Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
• Environment :Operating Temperature: -40?~70? (-40?~158?)
  Storage Temperature: -40?~70? (-40?~158?)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~95% non-condensing
