[EAP670] AX5400 Ceiling Mount WiFi 6 Access Point , Omada Mesh

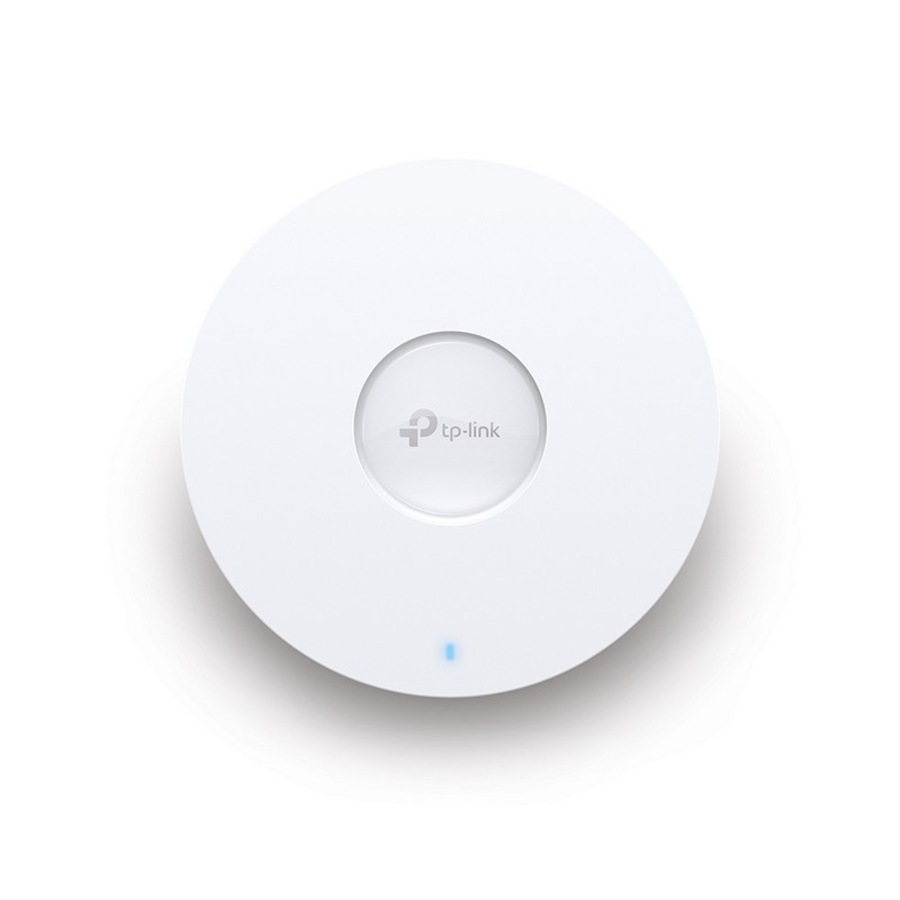

TP-Link EAP670 AX5400 Ceiling Mount WiFi 6 Access Point

• Blazing-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 4804 Mbps on 5 GHz totals 5378 Mbps WiFi speeds.†
• High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
• Centralised Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
• 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.†
• Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.§
• Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
• PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.

Learn more about Omada Wi-Fi 6>?Learn more about Omada Cloud SDN>?

HARDWARE FEATURES

• Interface :1x 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
• Button :Reset
• Power Supply :• 802.3at PoE
  • 12 V / 1.5 A DC (Power Adapter included)
• Power Consumption :• EU: 18.1 W
  • US: 19.8 W
• Dimensions ( W x D x H ) :9.6 x 9.6 x 2.5 in (243 x 243 x 64 mm)
• Antenna Type :Internal Omni
  • 2.4 GHz: 2x 4 dBi
  • 5 GHz: 4x 5 dBi
• Mounting :Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

• Wireless Standards :IEEE 802.11ax/ac/n/g/b/a
• Frequency :2.4 GHz and 5 GHz
• Signal Rate :• 5 GHz: Up to 4804 Mbps
  • 2.4 GHz: Up to 574 Mbps

• Wireless Functions :• 1024-QAM
  • 4x Longer OFDM Symbol
  • OFDMA
  • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS(WMM)
  • MU-MIMO
  • HE160 (160 MHz Bandwidth)†
  • Seamless Roaming §
  • Omada Mesh§
  • Band Steering
  • Load Balance
  • Airtime Fairness
  • Beamforming
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
• Wireless Security :• Captive Portal Authentication§
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Rogue AP Detection
  • 802.1X Support
  • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• Transmission Power :• CE:
  <20 dBm(2.4 GHz, EIRP)
  <23 dBm(5 GHz, , band1 & band2, EIRP)
  <30 dBm(5 GHz, , band3, EIRP)

  • FCC:
  <25 dBm (2.4 GHz)
  <28 dBm (5 GHz)

MANAGEMENT

• Omada App :Yes
• Centralized Management :• Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
  • Omada Cloud-Based Controller
• Cloud Access :Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Email Alerts :Yes
• LED ON/OFF Control :Yes
• Management MAC Access Control :Yes
• SNMP :v1, v2c, v3
• System LoggingLocal/Remote Syslog :Local/Remote Syslog
• SSH :Yes
• Web-based Management :HTTP/HTTPS
• L3 Management :Yes
• Multi-site Management :Yes
• Management VLAN :Yes
• Zero-Touch Provisioning :Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS

• Certification :CE, FCC, RoHS

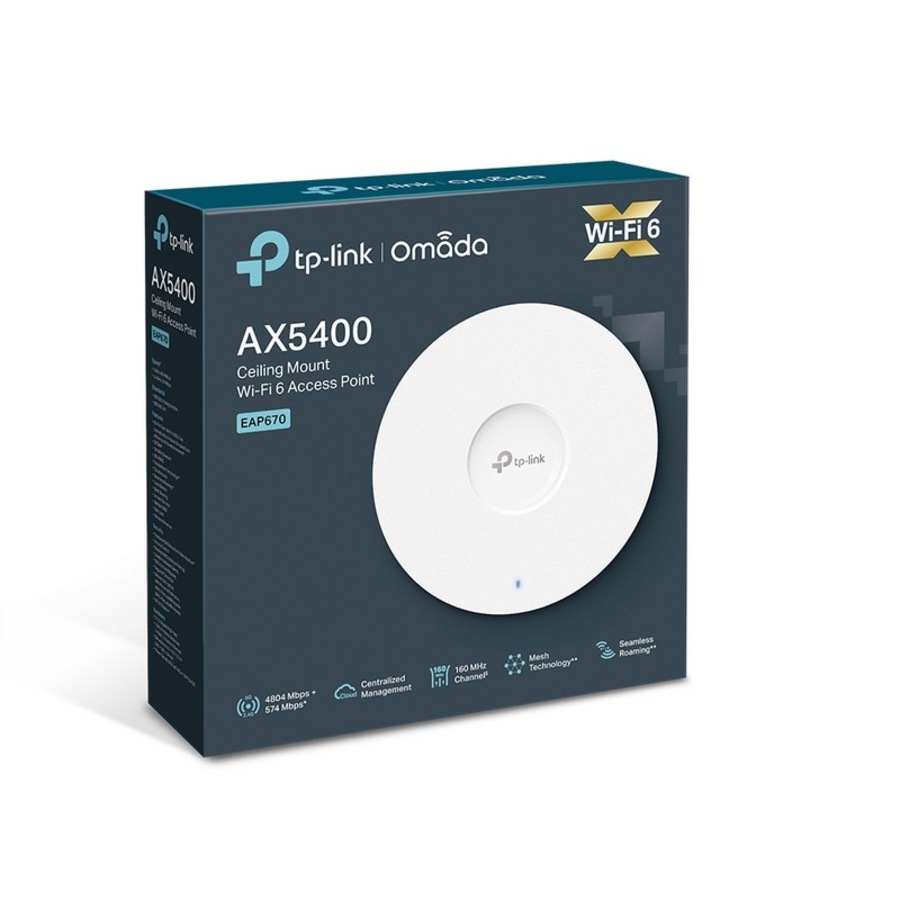

• Package Contents :• EAP670
  • Power Adapter
  • Ceiling/Wall Mounting Kits
  • Installation Guide

• System Requirements :Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
• Environment :• Operating Temperature: 0-40 ? (32-104 ?)
  • Storage Temperature: -40-70 ? (-40-158 ?)
  • Operating Humidity: 10-90% RH non-condensing
  • Storage Humidity: 5-90% RH non-condensing
