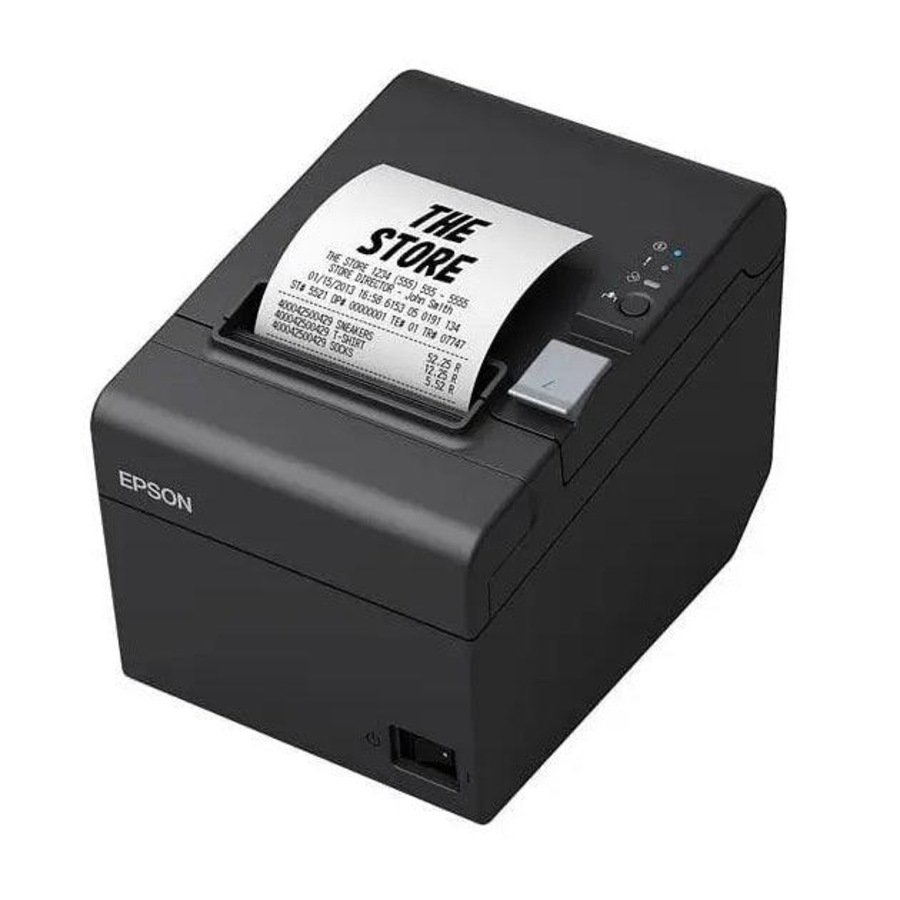

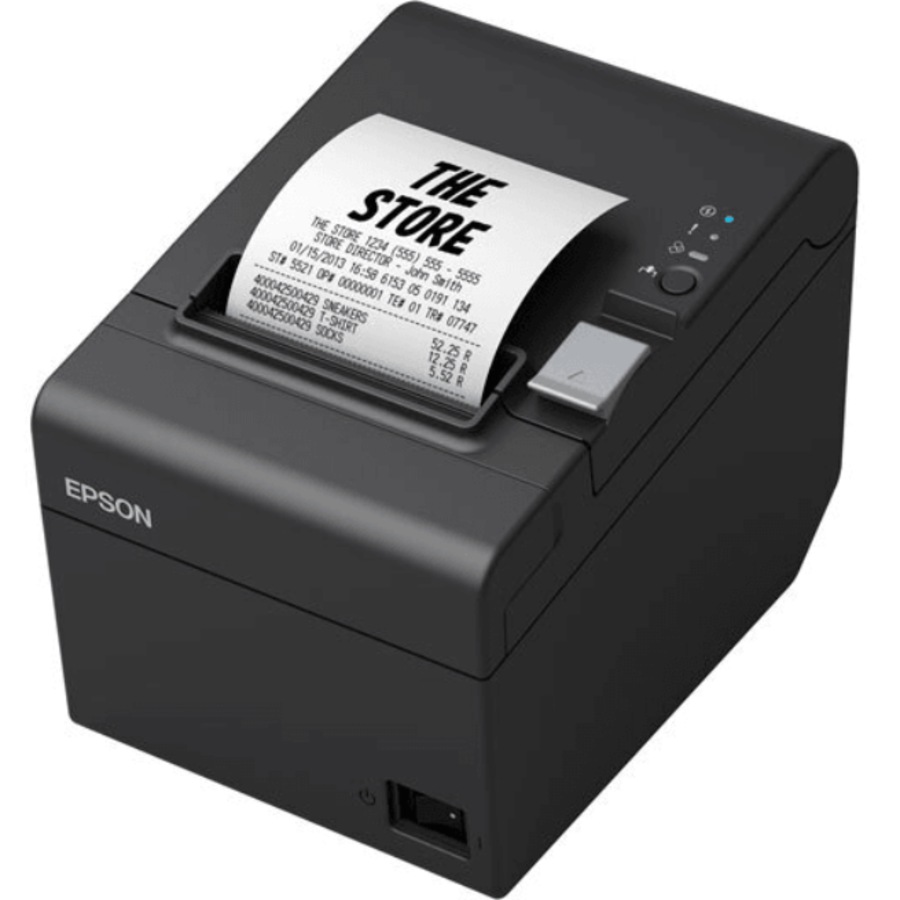

Epson TM-T82III Thermal Receipt Printer Ethernet/USB

Reliability you can count on

With a MCBF of 60 million lines, and an auto cutter life of 1.5 million cuts, the TM-T82III delivers best-in-class reliability so critical in high volume environments.

All-in-one-box convenience
For TM-T82III, all the accessories are included in the box for quick setup and installation. The box includes quick setup guide, paper roll, AC cable, rubber foot, wall hanging bracket, roll paper guide, USB cable (for USB-Serial model), power switch cover and AC adapter.

Quality you can count on
The TM-T82III is the ideal choice for retailers with a low volume of POS transactions but requires fast print speed with enhanced reliability. Based on Epson's advanced printing technology, the TM-T82III delivers the quality and reliability that Epson is known for, which ensures an easy, reliable printing solution for end users.

Fast printing with multiple options
The TM-T82III prints both text and graphics on receipts at speeds up to 250mm/sec. It also features crisp, clear printing of logos, coupons and barcodes. In addition, the TM-T82III offers paper saving options that can reduce paper usage by up to 30%.

Easy to use. Easy to maintain.
The TM-T82III comes with multiple ease-of-use features from drop-in paper loading, partial-cut auto-cutter to status LEDs.

MODEL NAME TM-T82III

PRINT METHOD Line Thermal

DOT DENSITY 203 dpi x 203 dpi

PRINT SPEED 250mm/s

PRINT WIDTH
(80mm paper width) 72±0.5mm

PRINT WIDTH
(58mm paper width) 5±0.5mm

FONTS 12x24 (Font A), 9x17 (Font B)

COLUMN CAPACITY
(80MM PAPER WIDTH) 48 (Font A), 64 (Font B)

COLUMN CAPACITY
(58MM PAPER WIDTH) 35 (Font A), 46 (Font B)

CHARACTER SIZE (mm) 25x3 mm (Font A), 0.88x2.13 mm (Font B)

CHARACTER SET Alphanumeric 95, International character 18 set, Graphics 128x43 page including user-defined page

CHARACTERS ANK, Simplified Chinese

BARCODE UPC-A, UPC-E, JAN8/EAN 8, JAN13/EAN13, Code39, Code93, Code128, ITF, CODABAR(NW-7), GS1-128, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Limited, GS1 DataBar Expanded

2-DIMENTIONAL SYMBOLS PDF417, QR code, Maxi Code, Datamatrix, Aztec, Two-dimensional GS1 DataBar, Composite Symbology

PAPER SIZE
(80mm paper width) 5 ± 0.5mm

PAPER SIZE
(58mm paper width) 5 ± 0.5mm

DIAMETER 83[mm]

PAPER THICKNESS 48-80 μm

AUTO CUTTER Partial cut (cutting with one point in left edge left uncut)

SENSORS Roll paper end / Roll paper near-end / Cover open

MCBF 60 million lines

MTBF 360,000 hours

AUTO CUTTER LIFE 5 million cuts

HEAD LIFE 150km, 15 million lines

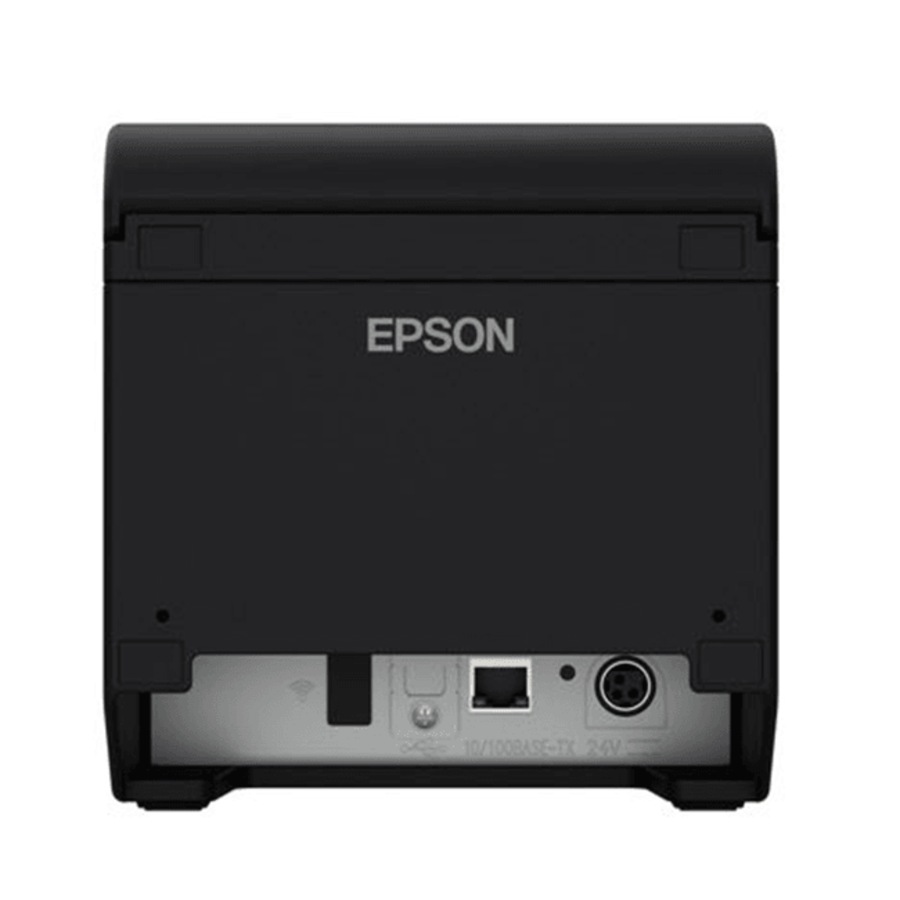

INTERFACES USB 2.0(capped) + Ethernet

K.D. FUNCTIONS 2 drivers

AC ADAPTER AC adapter C1

POWER SOURCE DC 24V±5%

POWER CONSUMPTION Approx 0.80W (Stand-by)
Approx 29.5W (Operating)

TEMPERATURE Operation 5-45? / Storage -10-50?

HUMIDITY Operation 10-90% / Storage 10-90%

NOISE LEVEL 55 dB (bystander position)

OVERALL DIMENSIONS 140mm (W) x 199mm (D) x 146mm (H)

WEIGHT 7Kg

COLOUR EBCK

INSTALLATION Horizontally / Vertically / Wall-mounted

BUZZER Unsupported

OPERATING SYSTEMS Windows, MacOSX, iOS, Android, Linux

DATA BUFFER Selectable as 45 bytes or 4 KB

WHAT'S IN THE BOX Roll paper, User's manual, AC adapter, AC cable, USB cable, Wall hanging bracket, Screws for wall hanging bracket, 58mm-width paper guide plate, Power switch cover, Power switch waterproof cover, Rubber feet for vertical installation

OPTIONS / ACCESSORIES External buzzer OT-BZ20, Wi-Fi dongle OT-WL06
