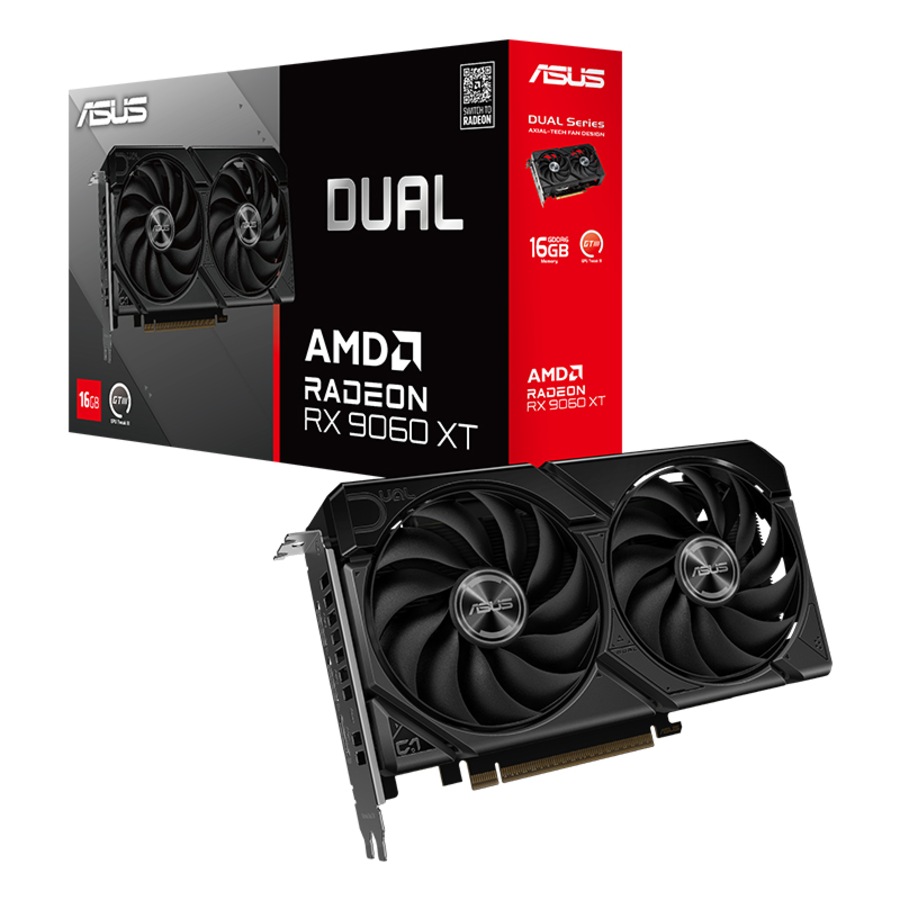

Asus Dual Radeon RX 9060 XT 16G Graphics Card (DUAL-RX9060XT-16G)

Graphic Engine

AMD Radeon RX 9060 XT

Bus Standard

PCI Express 5.0

OpenGL

OpenGL4.6

Video Memory

16GB GDDR6

Engine Clock

OC mode (GPU Tweak III): up to 3250 MHz (Boost Clock)/up to 2640 MHz (Game Clock)

Default mode: up to 3230 MHz (Boost Clock)/up to 2620 MHz (Game Clock)

Stream Processors

2048

Memory Speed

20 Gbps

Memory Interface

128-bit

Resolution

Digital Max Resolution 7680 x 4320

Interface

Yes x 1 (Native HDMI 2.1b)

Yes x 2 (Native DisplayPort 2.1a)

HDCP Support Yes (2.3)

Maximum Display Support

3

NVlink/ Crossfire Support

No

Accessories

1 x Thank you card

1 x Speedsetup Manual

Software

ASUS GPU Tweak III & Drivers: please download all software from the support site.

Dimensions

202 x 120 x 49mm

Recommended PSU

550W

Power Connectors

1 x 8-pin

Slot

2.5 Slot

Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html

* 'Game Clock' is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.

* 'Boost Clock' is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
