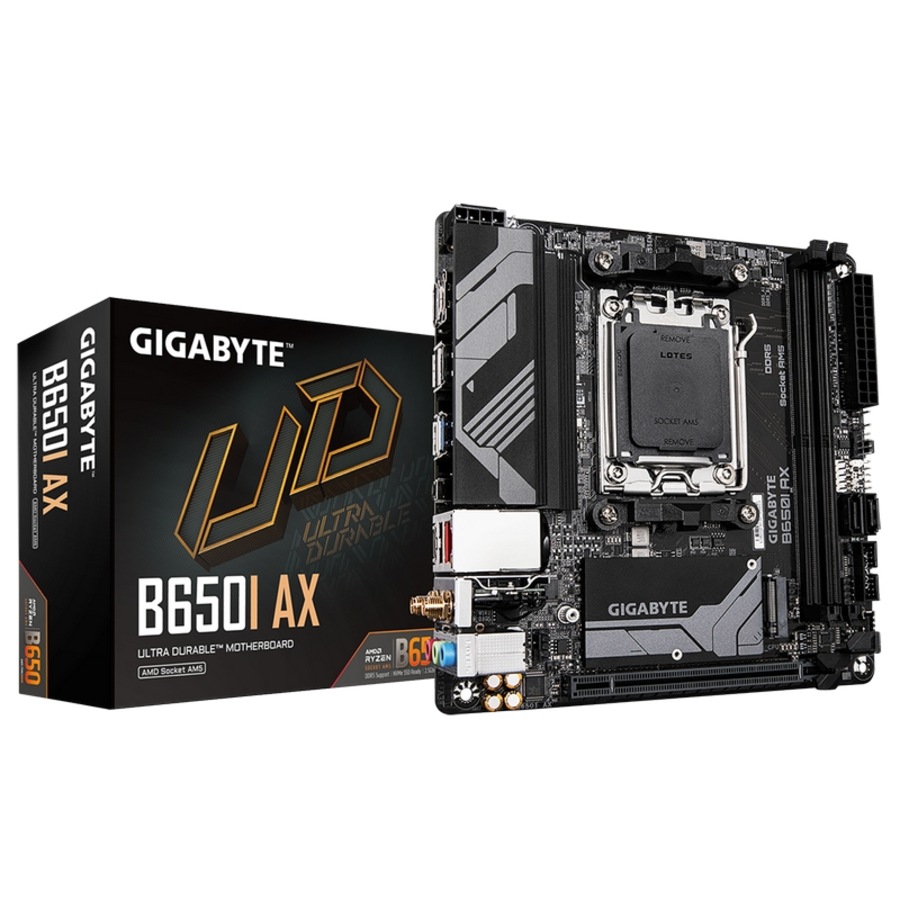

[B650I AX] Gigabyte Motherboard, for AMD CPU, DDR5, AM5, Mini-ITX MB

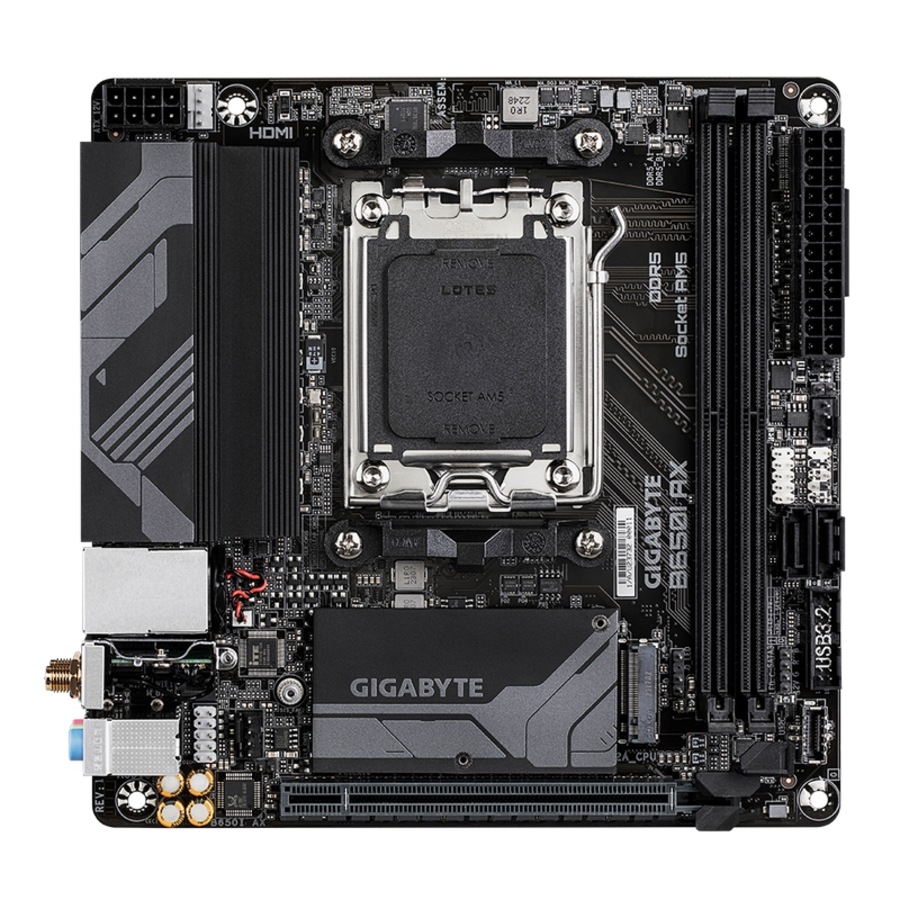

Gigabyte B650I AX(rev. 1.0)

• AMD Socket AM5: Supports AMD Ryzen™ 7000/ Ryzen™ 8000/ Ryzen™ 9000 Series Processors
• Unparalleled Performance: 5+2+1 Phases Digital VRM Solution
• Dual Channel DDR5: 2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
• SuperSpeed Storage: PCIe 4.0 x4 M.2 Connector
• EZ-Latch: PCIe x16 Slot with Quick Release Design
• Fast Networks: Wi-Fi 6E 802.11ax & 2.5GbE LAN
• Extended Connectivity: DP, HDMI
• Smart Fan 6: Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
• • GIGABYTE exclusive circuit design unlocks Native DDR5 voltage control
• • Transforms Native DDR5 memory module to Overclocked DDR5 memory
• • Increases DDR5 memory overclocking performance and capability
• • Supports all PMIC vendors for maximum compatibility
• * Memory overclocking capabiblity will vary based on users' hardware configuration One empty SPD profile can be defined by users and carry to next computer
• Quick memory performance simulation based on user input clock and timing parameters
• Profile save and load function to share your memory parameters online
• STEP 1: Plug 24pin & 8pin power supply cable on motherboard
• STEP 2: Download motherboard BIOS file and rename to ""gigabyte.bin"", save to USB flashdrive, and plug USB flashdrive into Q-Flash USB port
• STEP 3: Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.
• Cooling High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
• Precision Control: Multiple temperature/fan speed control points for precise fan curve
• Dual Curve Mode: Slope/Stair dual mode for different user scenario
• Fan Stop: Fan can stop completely below users' specified temperature point
• Unified software platform for all Gigabyte supported products
• Intuitive user interface for an eased experience
• Modularized control components only for installed hardware
• Auto update function to keep system up to date and support future products

• CPU :
  1. AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
  (Please refer "CPU Support List" for more information.)
• Chipset :
  1. AMD B650
• Memory :
  1. Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
  2. 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
• Onboard Graphics :Integrated Graphics Processor:
  1. 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
     * Support for DisplayPort 1.4 version.
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
     * Support for HDMI 2.1 version and HDCP 2.3.
     ** Support native HDMI 2.1 TMDS compatible ports.
  (Graphics specifications may vary depending on CPU support.)
• Audio :
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
     * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
• LAN :
  1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Wireless Communication module :Realtek® Wi-Fi 6E RTL8852CE
  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  2. BLUETOOTH 5.3
  3. Support for 11ax 160MHz wireless standard
  (Actual data rate may vary depending on environment and equipment.)
• Expansion Slots :1 x PCI Express x16 slot, integrated in the CPU:
  1. AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
  2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
  3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
     * The PCIEX16 slot can only support a graphics card or an NVMe SSD.
• Storage Interface :1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
  1. AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
  2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
  2 x SATA 6Gb/s connectors
  RAID 0 and RAID 1 support for NVMe SSD storage devices
  RAID 0 and RAID 1 support for SATA storage devices
• USB :CPU:
  1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
  2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  3. 1 x USB 2.0/1.1 port on the back panel
  Chipset:
  1. 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  2. 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
  3. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• Internal I/O Connectors :
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 2 x system fan headers
  5. 1 x addressable LED strip header
  6. 1 x RGB LED strip header
  7. 1 x M.2 Socket 3 connector
  8. 2 x SATA 6Gb/s connectors
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x speaker header
  12. 1 x USB Type-C® header, with USB 3.2 Gen 1 support
  13. 1 x USB 3.2 Gen 1 header
  14. 1 x USB 2.0/1.1 header
  15. 1 x Clear CMOS jumper
  16. 1 x chassis intrusion header

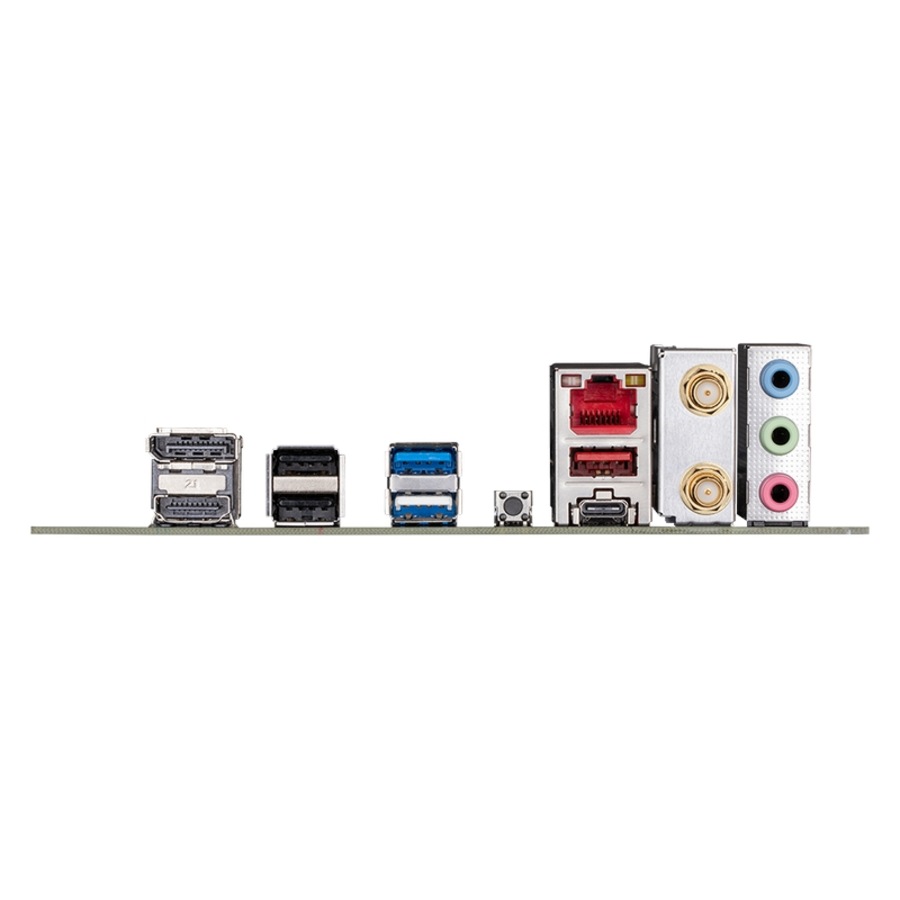

• Back Panel Connectors :
  1. 1 x DisplayPort
  2. 1 x HDMI port
  3. 1 x USB Type-C® port, with USB 3.2 Gen 1 support
  4. 1 x USB 3.2 Gen 2 Type-A port (red)
  5. 1 x USB 3.2 Gen 1 port
  6. 3 x USB 2.0/1.1 ports
  7. 1 x Q-Flash Plus button
  8. 1 x RJ-45 port
  9. 2 x SMA antenna connectors (2T2R)
  10. 3 x audio jacks
• I/O Controller :
  1. iTE® I/O Controller Chip
• H/W Monitoring :
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
     * Whether the fan speed control function is supported will depend on the fan you install.
• BIOS :
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features :
  1. Support for GIGABYTE Control Center (GCC)
     * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  2. Support for Q-Flash
  3. Support for Q-Flash Plus
• Bundled Software :
  1. Norton® Internet Security (OEM version)
  2. LAN bandwidth management software
• Operating System :
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
• Form Factor :
  1. Mini-ITX Form Factor; 17.0cm x 17.0cm
