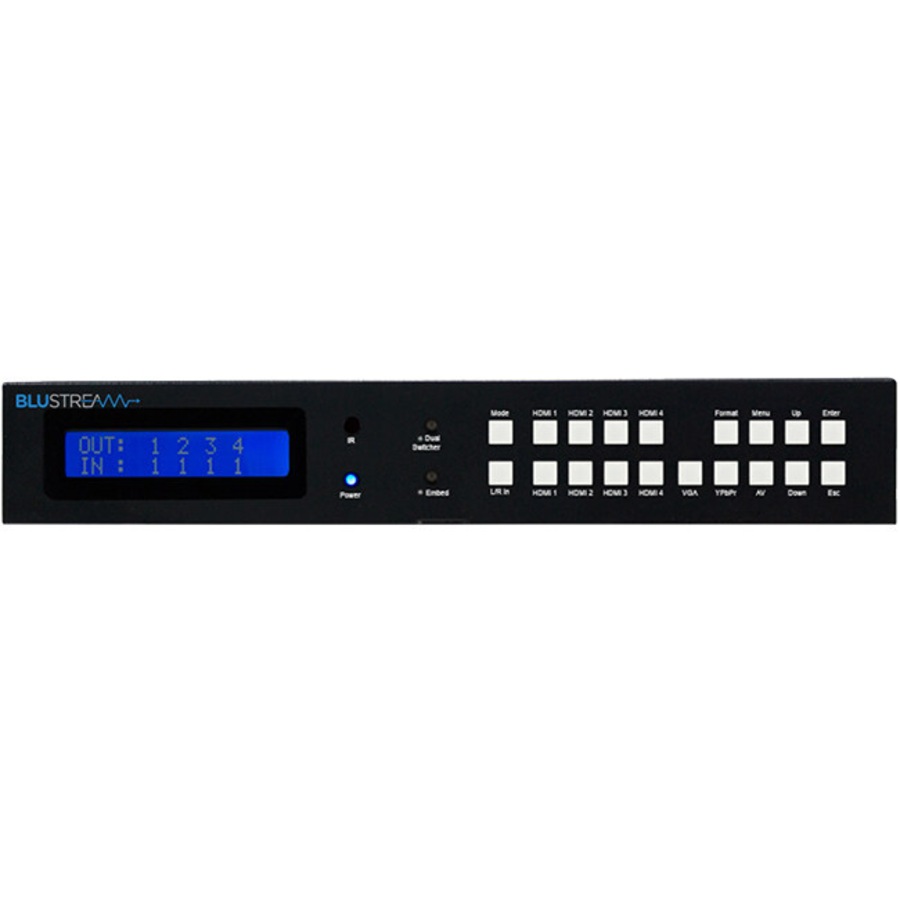

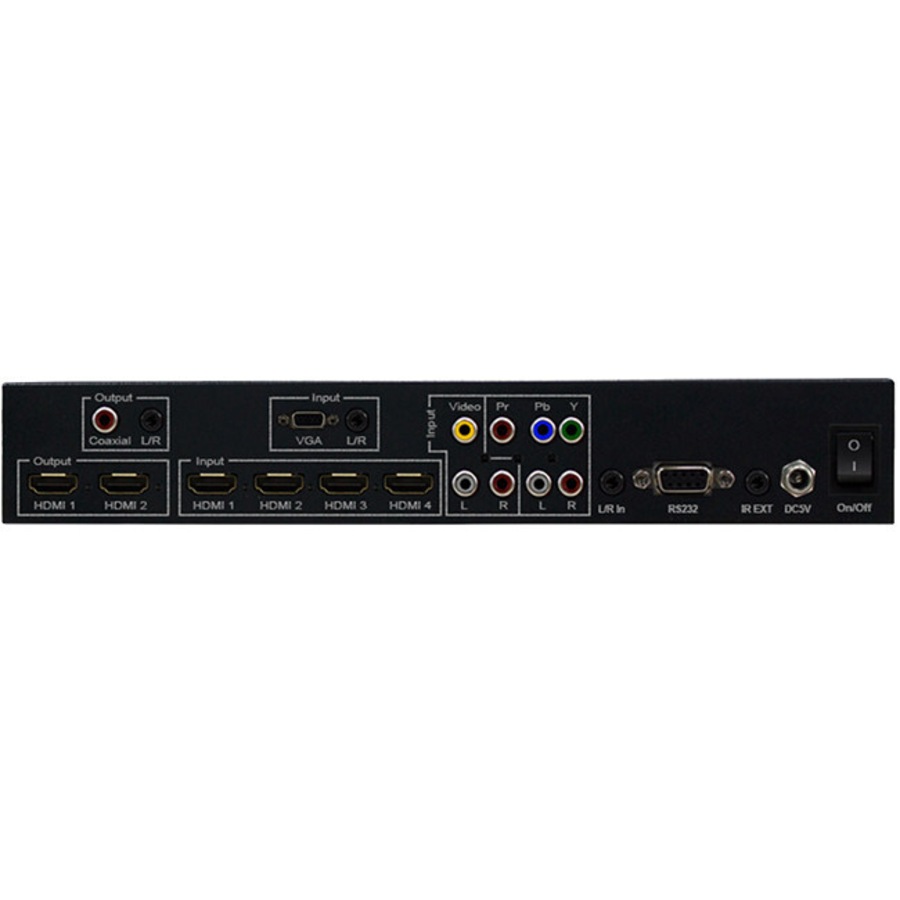

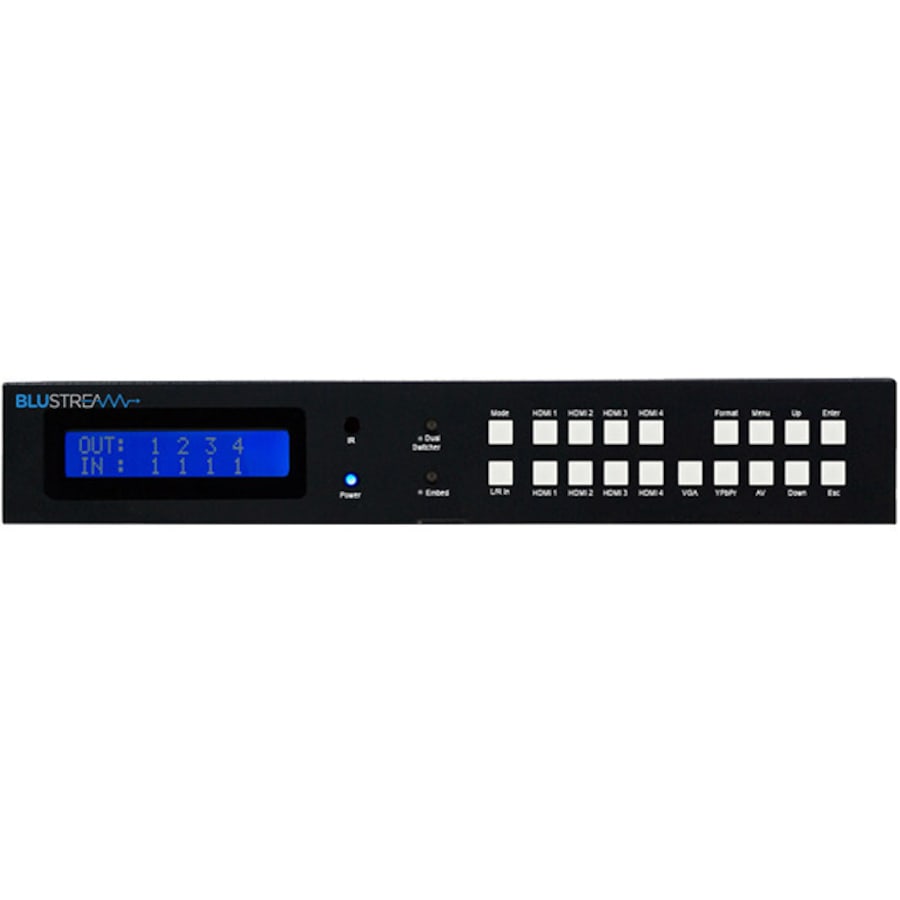

BluStream 7 Input 2 Output Multi-Format Presentation Switch HDMI 1080p 5V

Our MFP72 is a multi-format presentation switcher with in-built video scaling, audio embedding / de-embedding, and advanced EDID management.

The MFP72 works in 2 modes, first as a 7 input dual output switcher (7:1x2), alternatively each output can work independently with Output 1 routing the 4x HDMI inputs only (4:1 up to 4K) and Output 2 switching all 7 video/audio inputs (7:1 up to 1080p).

With control of the switcher using the front-panel push buttons, IR remote control or RS-232 interface it is an ideal solution for commercial installations

Key Features:

• Switcher can function in 2 modes:
  • Splitter mode - Both HDMI outputs display the same image from any video input
  • Switcher mode - HDMI output 1 and 2 are independently controlled
• HDMI output 1 can view only HDMI inputs 1-4 (up to resolutions of 4K)
• HDMI output 2 can view all HDMI and analogue video inputs with associated audio (up to 1080p resolution)
• Built-in video scaling, both up-scaling and down-scaling capabilities
• Video inputs support all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Scaled video output resolutions: 720p, 1080p, 1280x1024, 1024x768, 1360x768, 1440x900, 1680x1050
• Audio embedding - independent analogue L/R audio input can be embedded to HDMI outputs + Analogue L/R audio and Coaxial digital outputs concurrently (feature available for HDMI output 1 + 2 in 'Split mode', 'Switch mode' = HDMI output 2 only).
• HDMI audio breakout to Analogue L/R audio and Coaxial digital outputs concurrently (linked to output 2 in 'Switch mode')
• Volume control - Controls volume output of HDMI, Analogue L/R audio and Coaxial digital outputs
• Supports 3D signal display
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master audio transmission
• Supplied with Blustream IR receiver and IR link cable
• Control via front panel, IR and RS-232
• 3rd Party drivers available for all major home control brands
• Advanced EDID management
• HDCP compliant
• Supplied with Blustream IR receiver and IR link cable
• Control via front panel, IR and RS-232
• 3rd Party drivers available for all major home control brands
• Advanced EDID management
• HDCP compliant


Box Contents:

• 1x MFP72
• 1x 5V / 2A DC power supply
• 1x IR Remote control
• 1x IR receiver
• 1x IR control cable - 3.5mm-3.5mm cable (IRCAB)
• 1x Mounting kit
• 1x User manual
