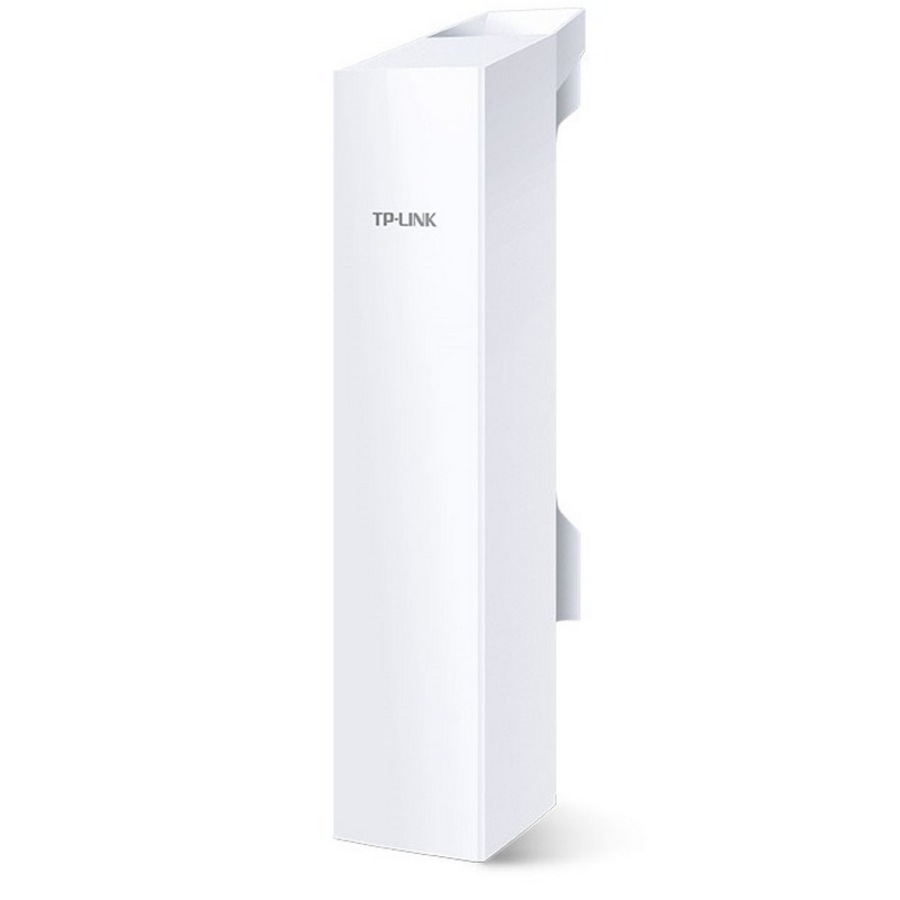

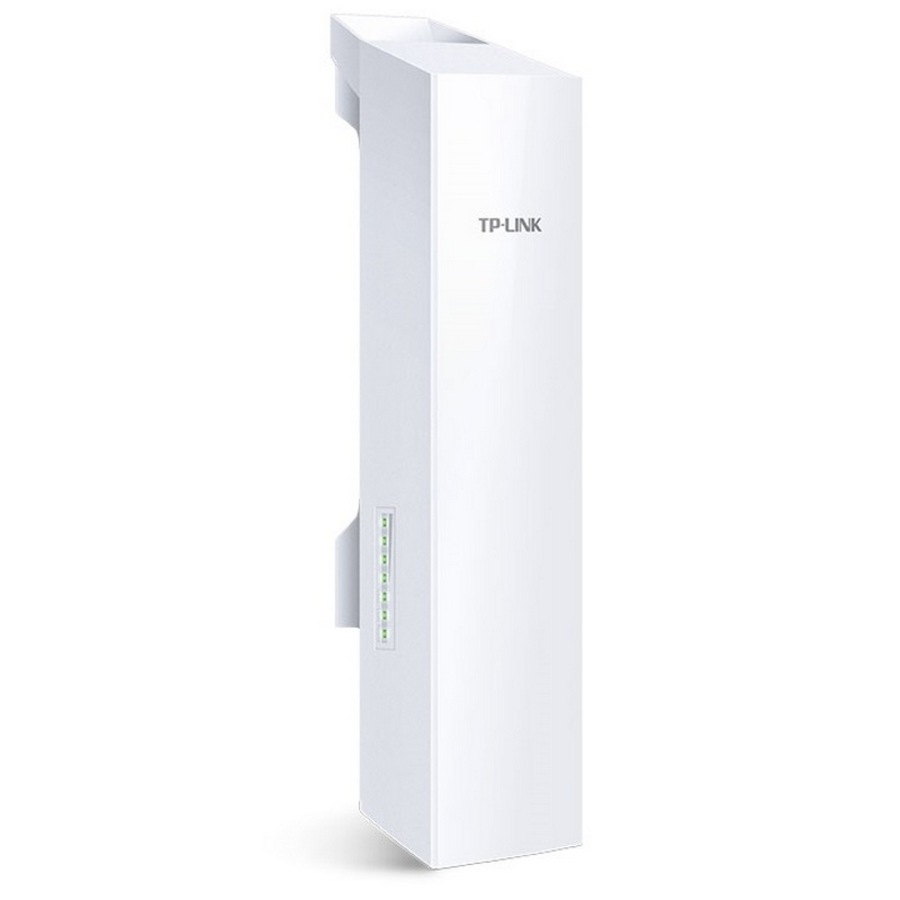

[CPE220] 2.4GHz 300Mbps 12dBi High Power Outdoor CPE Access Point Upto13km

TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE

• Built-in 12dBi 2x2 dual-polarized directional MIMO antenna
• Adjustable transmission power from 0 to 30dBm/1000mw
• System-level optimizations for more than 13km long-range wireless transmission
• TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
• Centralised Management System - Pharos Control
• AP / Client / AP Router / AP Client Router (WISP) operation modes
• Passive PoE Adapter supports up to 60 meters (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

Learn more about Pharos Control >

HARDWARE FEATURES

• Processor :Qualcomm Atheros 560MHz CPU, MIPS 24Kc
• Memory :64MB DDR2 RAM, 8MB Flash
• Interface :1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
  1 10/100Mbps Shielded Ethernet Port (LAN1)
  1 Grounding Terminal
  1 Reset Button

• Power Supply :Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
  Voltage range: 16-27VDC

• Power Consumption :10.8 Watts Max
  Note: When deployed using Passive PoE, the power drawn from the power source will
  be higher by some amount depending on the length of the connecting cable.

• Dimensions ( W x D x H ) :11x3.1x2.1 inch (276x79x60 mm)
• Antenna Type :Built-in 12dBi 2x2 Dual-polarized Directional Antenna
  Beam Width: 60° (H-Plane) / 30° (E-Plane)
  Note: For more details, please refer to datasheet

• Protection :15KV ESD Protection
  6KV Lightning Protection

• Enclosure :Outdoor ASA stabilized plastic material
  IPX5 waterproof Certification


WIRELESS FEATURES

• Wireless Standards :IEEE 802.11b/g/n (with Pharos MAXtream disabled)
• Proprietary Protocol :TDMA Mode (with Pharos MAXtream enabled)
• Wireless Speeds :Up to 300Mbps (40MHz,Dynamic)
  Up to 144.4Mbps (20MHz,Dynamic)
  Up to 72.2Mbps (10MHz,Dynamic)
  Up to 36.1Mbps (5MHz,Dynamic)

• Frequency :2.4~2.483GHz
  Note: Available operating frequency may vary depending on the limitations
  of the countries or regions in which the device is used.

• Transmission Power :30dBm/1000mw (Adjustable power by 1dBm)
  Note: Maximum transmission power may vary across different channels depending
  on the limitations of the countries or regions in which the device is used.


SOFTWARE FEATURES

• Wireless Configurations :Pharos MAXtream TDMA Technology
  802.11b/g/n Modes
  Selectable Channel Width: 5/10/20/40MHz
  Automatic Channel Selection
  Transmission Power Control
  Dynamic Frequency Selection (DFS)
  WDS Enable/Disable
  Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
  SSID Broadcast Enable/Disable
  Multi-SSID with VLAN Tagging (AP mode only)
  Distance/ACK Timeout Setting
  Wireless MAC Address Filter
  Wireless Advanced:
  > Beacon Interval/RTS Threshold/Fragmentation
  >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia

• Management :Discovery and Remote Management via Pharos Control application
  HTTP/HTTPS Web-based management
  System Log
  SNMP Agent(v2c)
  Ping Watch Dog
  Dynamic DDNS
  SSH Server

• System Tools :Wireless Signal Quality Indicators:
  Signal Strength/Noise/Transmit CCQ/CPU/Memory
  Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
  Spectrum Analyzer
  Speed Test
  Ping
  Traceroute

• System-level Optimizations :Optimized IGMP Snooping/Proxy for multicast applications
  Hardware watch dog


POE ADAPTER FEATURES

• Dimensions(W x D x H) :85.8x43.9x31.9 mm
• Interfaces :1 AC Jack with Earth Ground
  1 10/100/1000Mbps Shielded Ethernet Port (Power + Data)
  1 10/100/1000Mbps Shielded Ethernet Port (Data)

• Button :Remote Reset Button
• Power Status LEDs :Green


• Input :100-240VAC, 50/60Hz
• Output :24VDC, 0.5A Max
  +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)

• Efficiency :>80%
• Certifications :CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

OTHERS

• Certification :CE, FCC, RoHS, IPX5
• Package Contents :Outdoor Wireless CPE
  24V 0.5A Passive PoE Adapter
  Pole Mounting Straps
  AC Power Cord
  Installation Guide

• System Requirements :Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7,
  MAC OS, NetWare, UNIX or Linux.
  Note: We recommend you to use one of following Web browsers for an improved user
  experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.

• Environment :Operating Temperature: -40?~70? (-40?~158?)
  Storage Temperature: -40?~70? (-40?~158?)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~95% non-condensing
