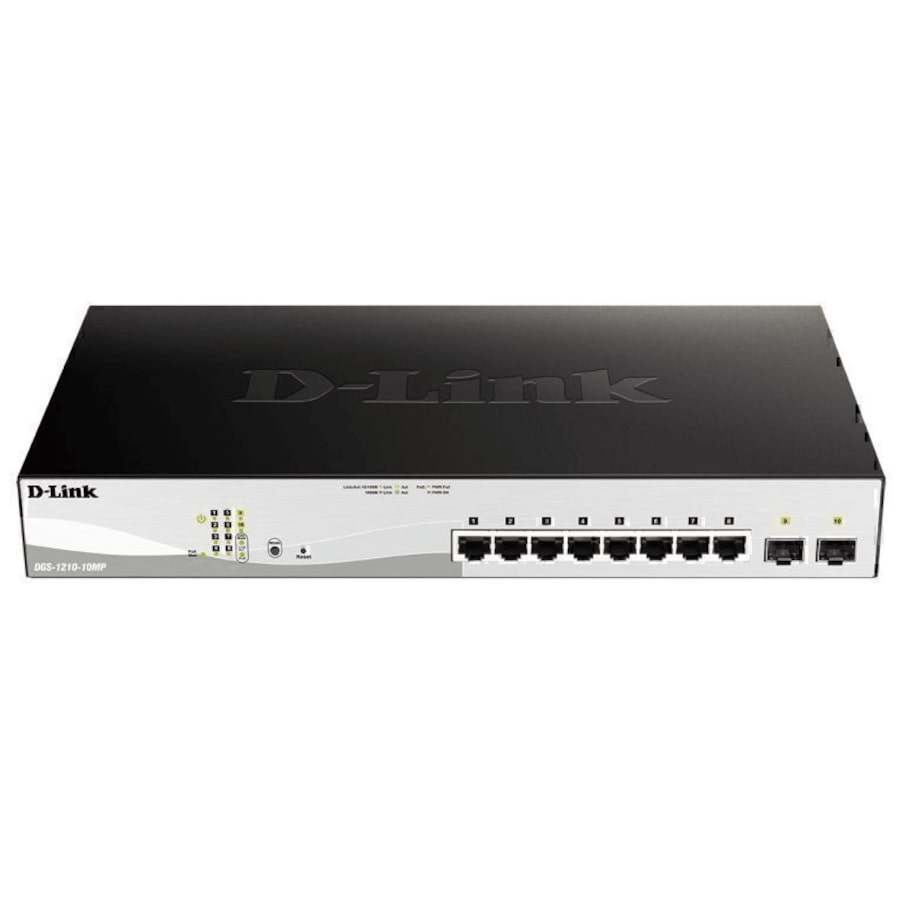

D-Link 10-Port Gigabit Smart Managed 130W PoE Switch with 8 PoE Ports

The D-Link DGS-1210 Series Smart Managed Switches are the latest generation of switches to provide increased Power over Ethernet (PoE) output, a range of physical interface types, multiple management interfaces, and advanced Layer 2 features. With all of these features combined, the DGS-1210 Series provides a cost-efficient and flexible solution for expanding any business network. The DGS-1210-10P comes with a fanless design in a compact 11” desktop enclosure, also offering a 19” rack mounting option with included mounting brackets. A fanless design allows for quiet operation and guarantees an extended lifetime.

Seamless Integration

The DGS-1210 Series includes a wide range of port and media types, including 10/100/1000BASE-T RJ-45 ports, 100/1000 Mbps combo ports, and 100/1000 Mbps SFP ports, allowing you to choose the most suitable media type for your requirements. The DGS-1210-10MP switch comes with eight Gigabit copper ports capable of connecting to existing Cat.5 (or higher) twisted-pair cables. Additionally, the last 2 ports of the DGS-1210-10MP offer SFP connectivity and therefore provide an option for upstream or downstream server connections via fibre interface. Using the default presets, the administrator can quickly set up the switch without reconfiguring any settings.

PoE Support

All DGS-1210 Series PoE switches include support for IEEE 802.3af/at and higher power budgets, allowing more PoE devices to be powered by the switch and for devices to be installed in remote locations without immediate access to power outlets. The DGS-1210-10MP delivers Power over Ethernet (PoE) capabilities, making deployment with IP cameras, VoIP phones, and access points much easier. The DGS-1210-10MP complies with the 802.3af (PoE) and 802.3at (PoE+) standards and offers an extended PoE power budget of 130 Watts.

Extensive Layer 2 Features

Equipped with a complete lineup of L2 features, the DGS-1210-10MP includes IGMP Snooping, Port Mirroring, Rapid Spanning Tree and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. At 2000 Mbps Full Duplex, the Gigabit ports provide high-speed data pipes to servers with minimum data transfer loss. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostic feature, designed primarily for administrators and customer service representatives, can rapidly discover the type of error and determine the cable quality.

QoS, Bandwidth Control

The DGS-1210-10MP is perfect for deployment in a VoIP environment, as it support Auto Voice VLAN and Differentiated Services Code Point (DSCP) QoS for VoIP. Auto Voice VLAN will automatically place voice traffic from an IP phone to an assigned VLAN and by doing so enhance the VoIP service. With a higher priority and individual VLAN, this feature guarantees the quality and security of VoIP traffic. DSCP marks parts of an IP packet, enabling different levels of service to be assigned for network traffic. With Bandwidth Control, network administrators can reserve bandwidth for important functions that require a larger bandwidth or might have high priority.

Features:

• 10 Gigabit ports: 8 RJ45 + 2 SFP
• 8 PoE/PoE+ ports with 130W Power Budget
• 20 Gbps Switching capacity
• True Plug & Play
• QoS with Auto Voice VLANs for VoIP
• Supports IP Interfaces and Static Routes
• Advanced Security Features
• D-Link Green Technology
• IEEE 802.3az Energy Efficient Ethernet
• Fanless Design for Quiet Operation

Switch Type: Layer2+ IP Routing

Type of Port Required: Gigabit Copper | Gigabit Fibre

Number of Ports: 5 - 16

PoE Type Required: PoE | PoE+ | Extended PoE Budget

High Speed Stacking: No

Design: Desktop | Rackmountable | Fanless

1000Base-T ports: 8 Ports

SFP ports: 2 Ports

PoE ports: 8 Ports

PoE Budget: 130 Watts

Switching Capacity: 20 Gbps

QoS: Yes

Spanning Tree Protocol: Yes

Link Aggregation: Yes

VLAN: 256 Groups

Surveillance VLAN: Yes

Jumbo Frame: 10000 bytes

Voice VLAN: Yes

IGMP Snooping: Yes

1X Access Control: Yes

DHCP Server Screening: Yes

SNMP: Yes

Cable Diagnostics: Yes

Energy Saving Technology: EEE Compliant | D-Link Green

19 Inch Rack Mountable: Yes

Fans: Fanless

Built-in PSU: Yes

Dimensions (Size): 330 x 180 x 44 mm

Web-based GUI: Yes

Command Line Interface: Yes

Types of ports: SFP Ports | Gigabit Ports

Static Routing: Yes

Switch Series: DGS-1210 Series

SKU DGS-1210-10MP

Colour Black
