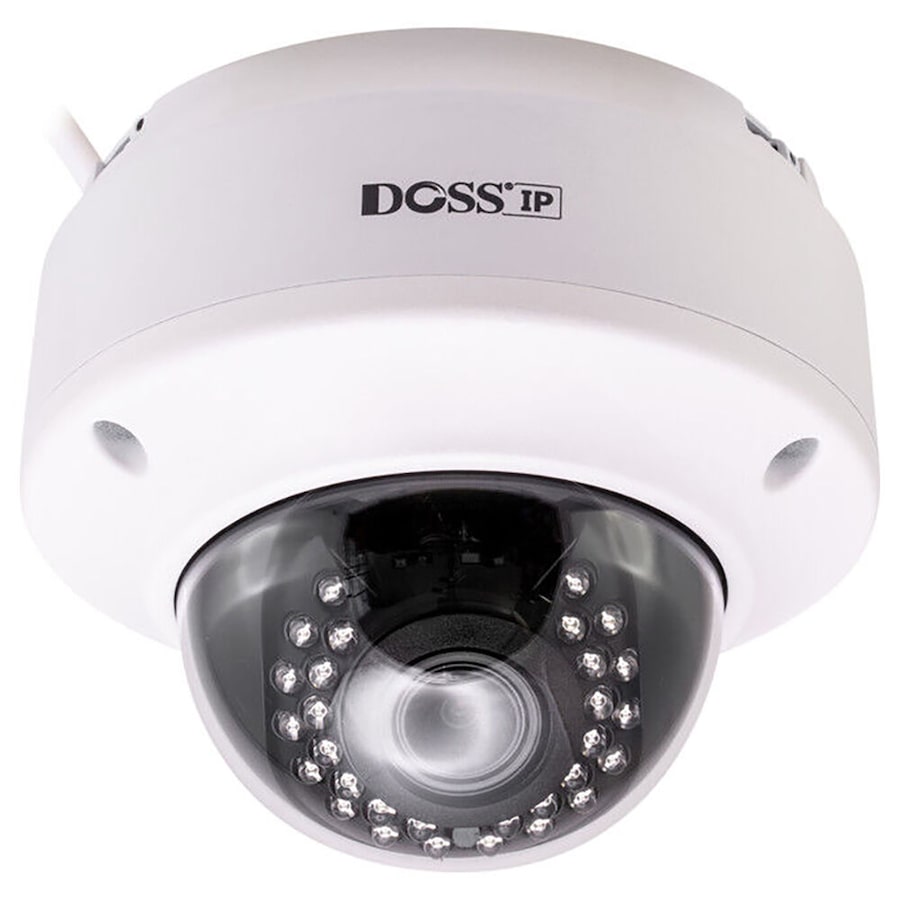

Doss 8MP IR30M IP66 Vandal Proof Dome IP Camera Human Detection CCTV White

Doss 8MP IR30M IP66 Vandal Proof Dome IP Camera Human Detection CCTV White



• 8MP 3840*2160@ 20fps, 5MP(2592*1904@25fps)
• HTML5 supported, no more ActiveX installation required, compatible with Chrome/Edge/Firefox/Safari internet explorer
• Hikvision private protocol supported, plug and play with popular Hikvision NVRs
• The 2.7-13.5mm motorized lens makes easy to adjust the focal length and zoom level
• H.265/H.264 supported, saves bandwidth and storage space
• 1/2.8" SONY Progressive Scan CMOS sensor
• Humanoid detection
• Support human alert voice broadcast
• IR-Cut (Infrared-cut) filters for producing accurate color images
• IP66 rating
• 32x IR Leds, IR distance up to 30-40m
• DC12V or POE power options
• Detection frame 5fps, detect up to 5-10 people at the same time
• Support low bit rate and low latency
• Support Smart IR to avoid Infrared over-exposure at night
• Support ICR auto switch, realize D&N surveillance
• Support 3D DNR and digital WDR
• Support auto-electronic shutter to suit different surveillance environments
• Support HTTPS transmission with the password, default password 123456

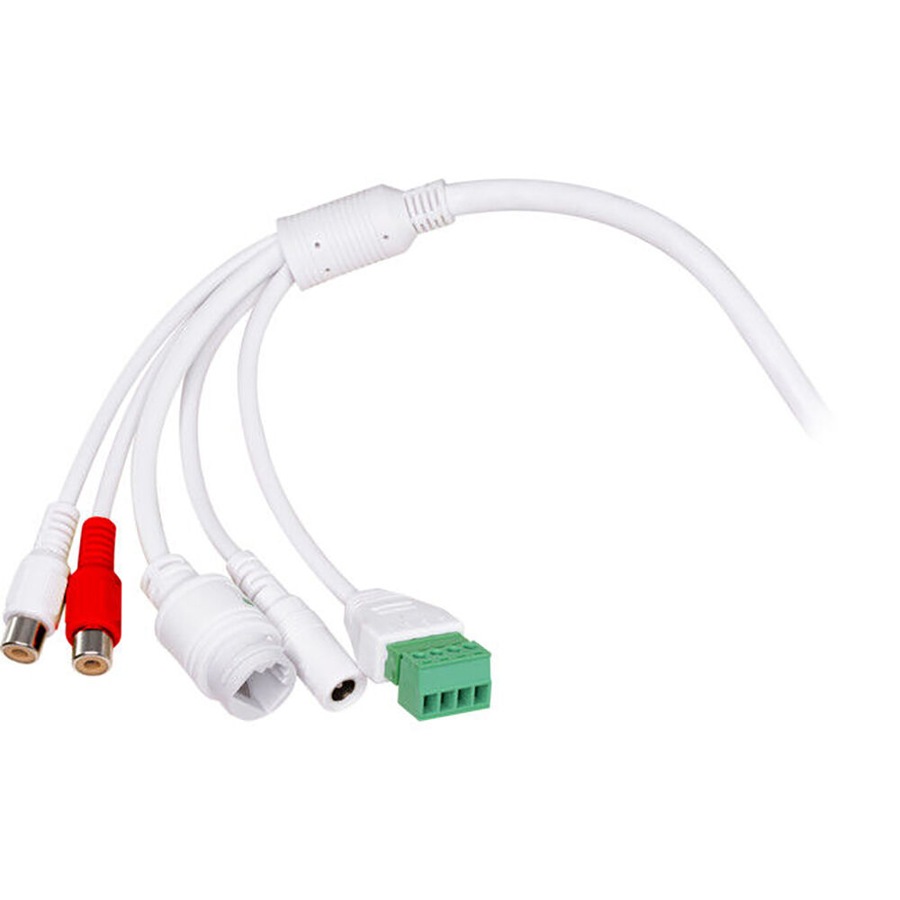

CONNECTIONS

• [DC] 12V DC power input
• [RJ45] Ethernet port
• Alarm input/output
• Audio output
• Audio input





CAMERA
Image sensor	1/2.8" SONY 8MP Progressive Scan CMOS
Min.illumination	0 Lux/F1.4 (IR ON) Color: 0.1Lux/F1.4, B/W: 0.05Lux/F1.4
IR distance	30-40m (32x IR leds)
Electronic shutter	Auto/ Manual (1/25~1/10000),FLK
Day/ Night	ICR switch, auto, color, B/W, ext
Lens	2.7-13.5mm Motorized lens
Lens interface	Φ14
Output	PAL/ NTSC adjustable
WDR	WDR (Off/ Low/ Middle/ High)
Light board control	Auto/ Manual/ Off / Support 0-100 brightness adjust
3D N/R	Off/ Low/ Middle/ High/ Higher
Defog	Off/ Low/ Middle/ High
Mirror	Off/ Horizontal/ Vertical/ 180° rotation/ Corridor mode (90° rotation, 270° rotation)
Slow Shutter	Off/On
Exposure control	Auto/ Manual
Image setting	Brightness, Contrast, Saturation, Sharpness, Hue
Humanoid Detection
Detection Quantity	≤10 person
Humanoid Size	Humanoid pixel≥40X40
Detection Ratio	≥99% (meet above requirement)
Capture Corresponding speed	≤1s
Max Detection Frame	5fps/s
Fault Detection Ratio	≤2%
Detect Part	People with any posture including half body,head,hand shoulder
Track People	Support
Detection Mode	Support static and dynamic humanoid detection
Detection Method	Image detection during day or night time with lights or IR Leds
Detection Area	Appointed area, default full-screen
Upload Method	Upload it under private protocol
Trigger Method	Video trigger
AUDIO/VIDEO ENCODING
Video compression	H.265/H.264
H.265 Encoding	Main Profile
H.264 Encoding	BaseLine / Main Profile / High Profile
Encoding features	Main stream:8MP(3840*2160)20fps,5MP(2592*1904), 4MP(2560*1440)\3MP(2304*1296)\2MP(1920*1080) 25fps Sub-stream:D1(720*576),VGA(640*480),Q720P(640*360),CIF(352*288),QVGA(320*240)
Max. Resolution	3840*2160
Video bit rate	Constant bit rate, variable bit rate (32Kbps~16Mbps)
Video type	Complex stream/ Video stream
Audio compression	G.711u
Audio bit rate	64Kbps
NETWORK
Network protocol	TCP/IP,UDP,HTTP,DHCP,RTSP,DDNS,NTP,PPPoE,UPnP,SMTP,FTP
Access protocol	ONVIF, SLINK, HIK
Browser	Support IE, Chrome, Firefox, Safari
Video web preview	4 users max on web login
User permission	User add/modify/delete, permission management
Safe mode	Authorized user name and password, HTTPS encryption and AES link encryption, RTSP verification
Motion detection	Set detection zone, multi-level sensitivity can be set
Tampering alarm	1 zone
Privacy Mask	4 zones
Event linkage	Snapshot, FTP upload or email sending, alarm output linkage, preset linkage
ANR	Support,match with NVR
Device exception	Support network disconnected, IP conflict, illegal access alarm
OSD	Title, time and date overlay, multi-line OSD, OSD color optional
DST	Support
Snapshot	Support snapshot, snapshot resolution is encoding resolution
System Upgrade	Support remote upgrade
INTERFACE
Network Interface	RJ45 10M/100M network adaptive
Power	12V DC power input
Audio	1ch input/1ch output
Alarm input	1ch
Alarm output	1ch
GENERAL
Operating temperature	-20°C ~ 55°C
Operating humidity	0%-90%
Protection grade	IP66/IK10 and Vandalproof
Power supply	DC12V /PoE
Power consumption (max)	<9W

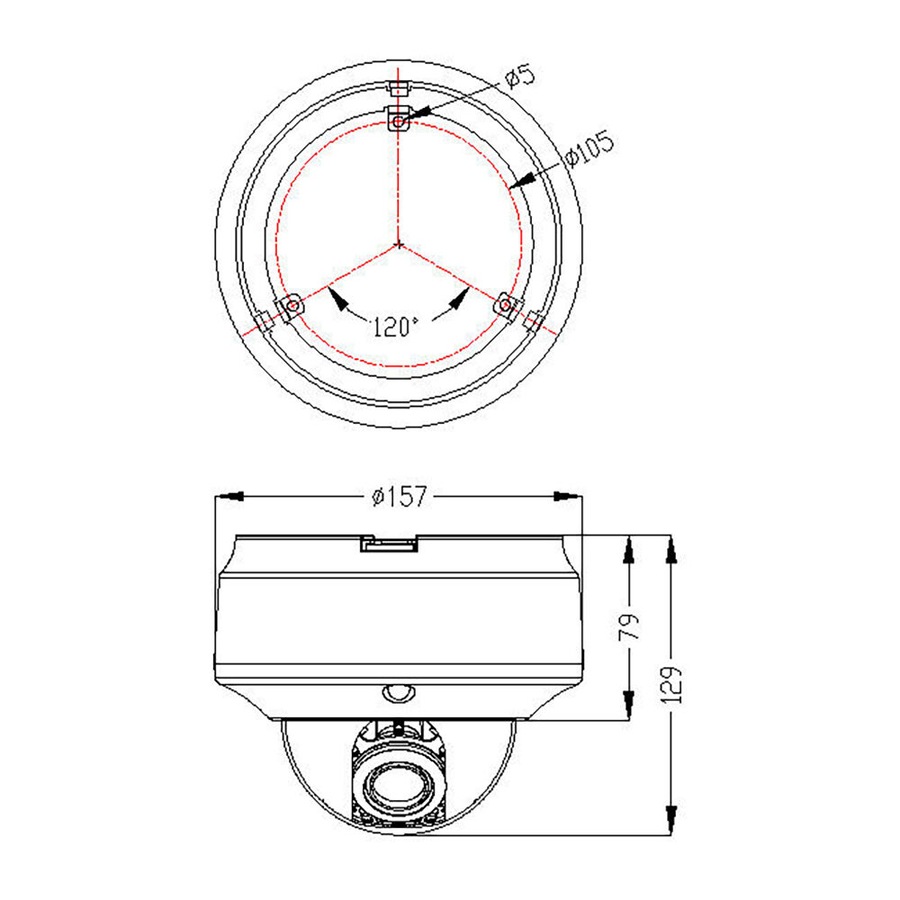

Dimensions(mm)	157mm(w)x129mm(H)

Includes:
1 x Camera
