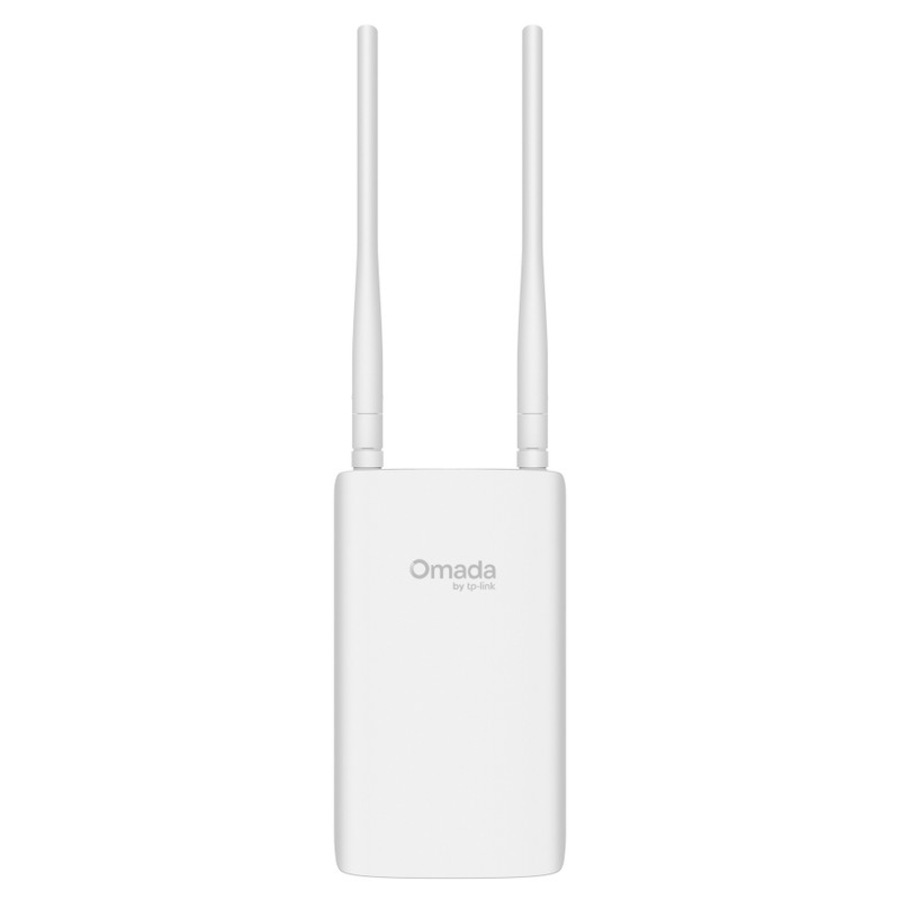

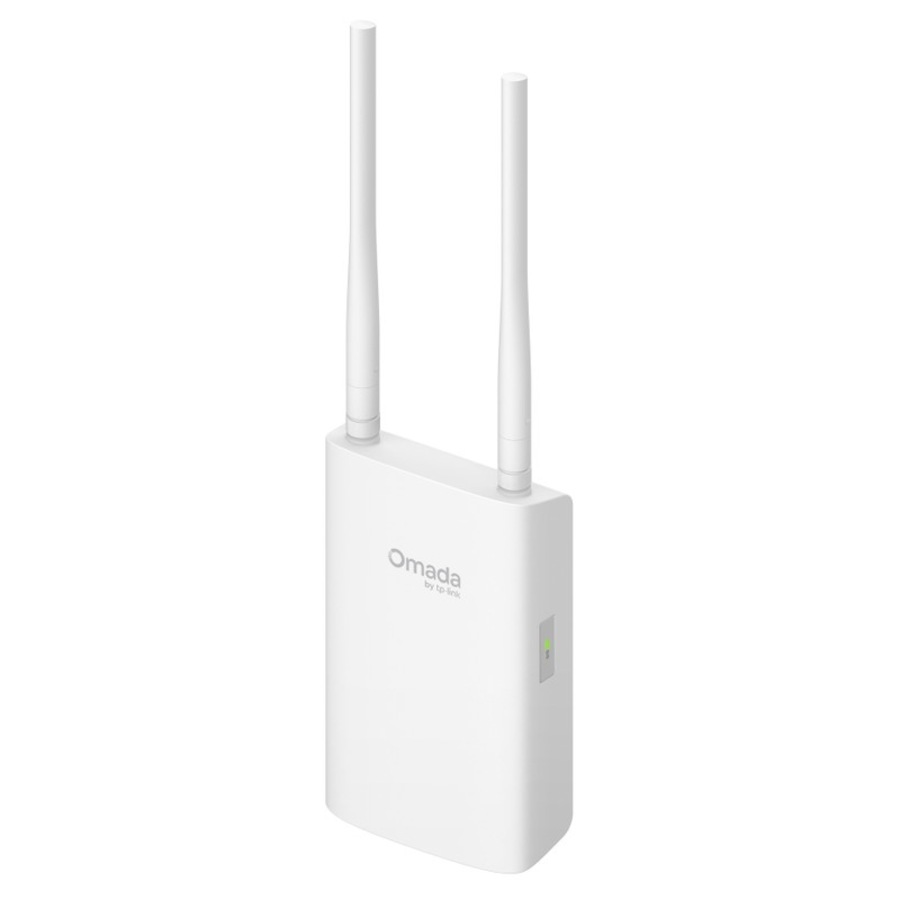

[EAP603-Outdoor] AX1800 Indoor/Outdoor Wi-Fi 6 Access Point
192 pts
Collect a minimum of 1x base points- Shipping fee calculated at checkout
- ETA 21 May 2026 - 27 May 2026Estimated time of arrival Thursday 21 May 2026 to Wednesday 27 May 2026
- Sold and shipped by Australia Tech Gears
TP-Link AX1800 Indoor/Outdoor Wi-Fi 6 Access Point - Powered by the WiFi 6 technology, the AX1800 Indoor/Outdoor WiFi 6 Access Point EAP668-Outdoor HD delivers WiFi speeds of up to 1.8 Gbps, ideal for use in outdoor environments, such as outdoor swimming pools, cafes, and amusement parks.
- Seamless 1.8 Gbps Wi-Fi 6 Speeds:574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz.
- Dual-Band Omnidirectional Coverage:Up to 300 m (984 ft) long-range coverage . *
- PoE+ Powered :Supports both 802.3at PoE and Passive PoE (adapter included) .
- Ideal for Outdoor Environments:IP65 weatherproof, 6 kV lightning protection, and a reliable operating range of -40 °C to +70 °C.
- Easy and Quick Setup:Wall/pole mounting; Omada SDN for one-click setup
- Advanced Features:Omada Mesh, Seamless Roaming, and Centralised Cloud Management.

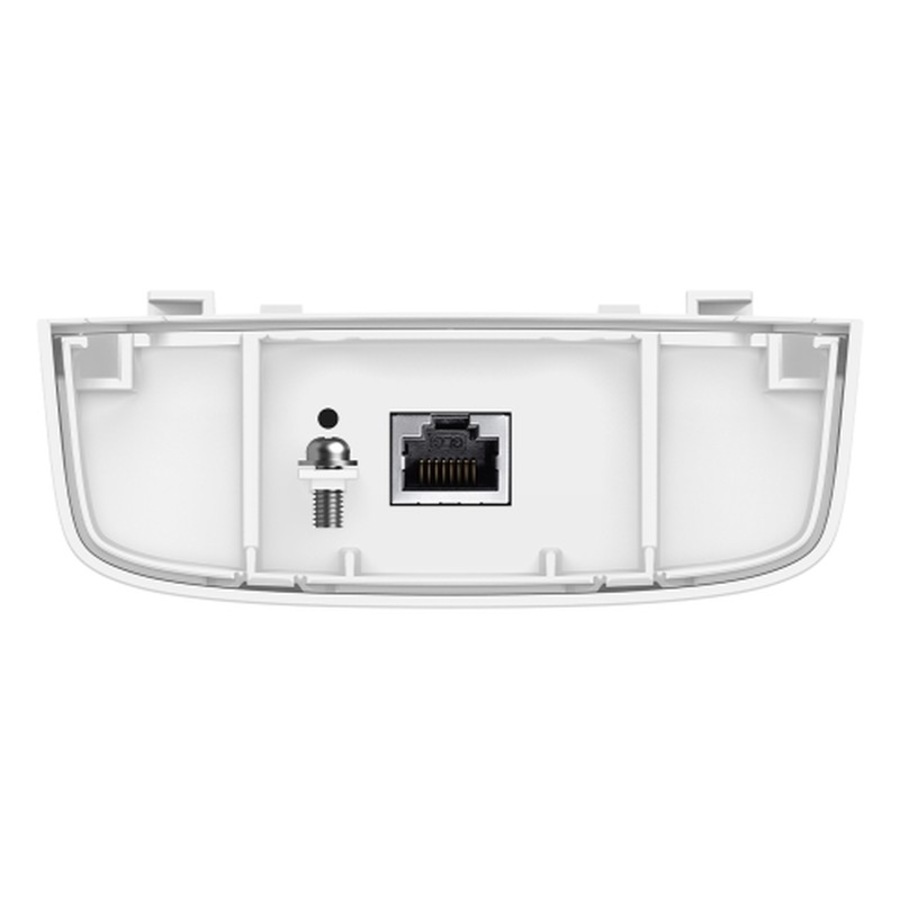

- Interface1x 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE in
1x Grounding Termina - Button1x Reset button: Press the button for longer than 5 seconds to make the device restore to factory settings.
- Power SupplyInput: 802.3at PoE+: 42.5 - 57 V, 0.36A
- Max. Power Consumption802.3at (PoE+): 15.8w, 2.4GHz radio 2x2, 5GHz radio 2x2, wired link rate can be up
to 1 Gbps, etc.
Idle mode: 4.8W(PoE) - Dimensions ( W x D x H )Main Unit: 230 x 207.5 x 69.7 mm (9.06 x 8.17 x 2.74 in.)
Shipping Unit: 324 x 104 x 245 mm (12.76 x 4.09 x 9.65 in.) - AntennaWi-Fi
2.4 GHz: 2 x 4 dBi (peak gain), external omnidirectional antennas
5 GHz: 2 x 5 dBi (peak gain), external omnidirectional antennas
*Note: The gains above are the single-antenna peak gains.
IoT
Bluetooth: 1 x 4 dBi (peak gain), internal omnidirectional
antennas - BluetoothYes
- Weatherproof EnclosureIP66 for Wall Mount

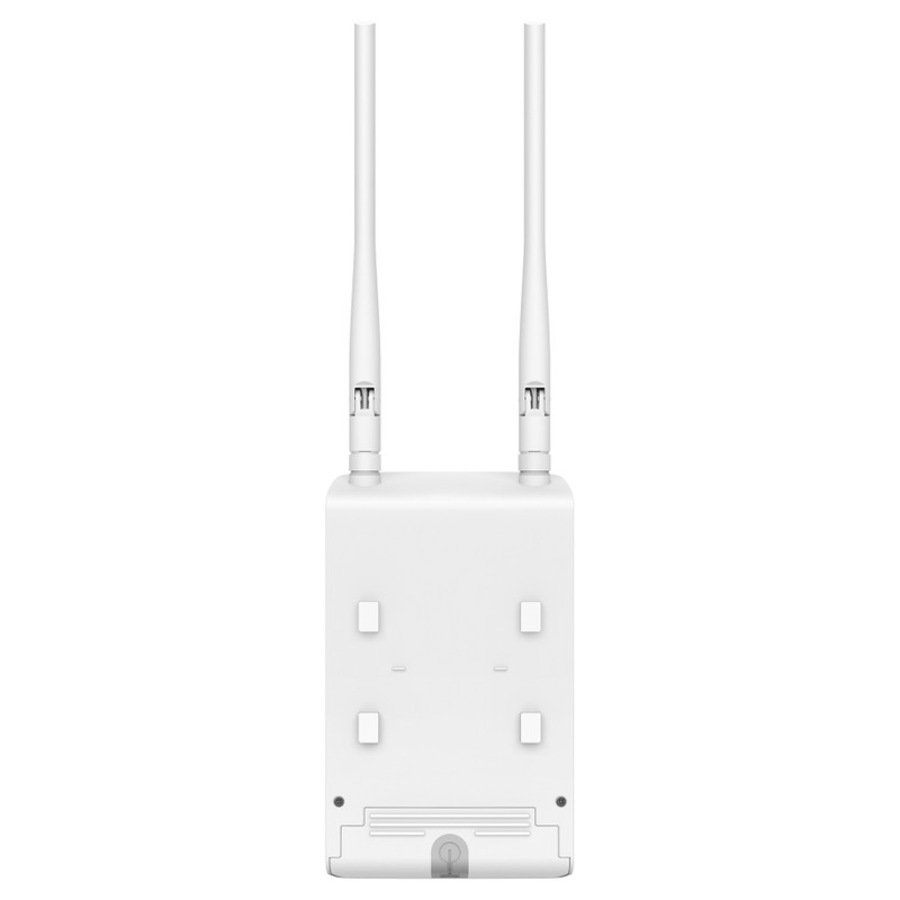

IP65 for Pole Mount - MountingPole Mount (Kits included)
Wall Mount (Kits included)
- Coverage2.4 GHz: up to 2,150 ft (200 m)
5 GHz: up to 3,200 ft (300 m) - Wireless Standards5 GHz: IEEE 802.11a/n/ac/ax
2.4 GHz: IEEE 802.11b/g/n/ax - Frequency5 GHz
2.4 GHz - Signal Rate2.4 GHz: up to 573 Mbps
5 GHz: up to 1201 Mbps
*Note: Country-Specific Restriction Apply - Wireless FunctionsMaximum number of BSSIDs: 16 (8 on each band)
Maximum number of associated STAs: 250+
Guest Network
ACS (Automatic Channel Selection)
Airtime Fairness
Band Steering
802.11 Rate Control
Rogue AP Detection
URL Filtering
WLAN Optimization
Lock to AP
SSID/Client Rate Limit
Load Balance
Seamless Roaming (802.11k/v/r, Non-Stick Roaming, Ping-Pong Roaming Suppression, AI Roaming)
Multicast/Broadcast Management (Multicast-to-Unicast Conversion, ARP-to-Unicast Conversation, Multicast Filtering, Multicast/Broadcast Rate Limit)
QoS (Quality of Service) - Wireless SecurityACL
MAC Filter
802.1X Authentication
MAC-Based Authentication
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, Enhanced Open, and None
Radius Accounting
PPSK without Radius, PPSK with Radius (Generic Radius with bound MAC/EKMS/Generic Radius with unbound MAC)
Captive Portal: No Authentication, Simple Password, Hotspot (Voucher / Local User / SMS / RADIUS / Form Auth), RADIUS Server, External LDAP Server, External Portal Server, Pre-Authentication Access, and Authentication-Free Client
EAP Types: EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-CHAP, EAP-SIM, EAP-AKA, EAP-GTC, EAP-FAST, EAP-PEAP, EAP-MD5, EAP-MSCHAPv2, PEAPv0, PEAPv1 - Transmission PowerMaximum transmit power:
CE (ERIP)
2.4 GHz: 20 dBm
5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 29 dBm in U-NII-2C,
FCC (Conducted Power)
2.4 GHz: 25 dBm
5 GHz: 27 dBm in U-NII-1, 24 dBm in U-NII-2A, 24 dBm in U-NII-2C, 27 dBm in U-NII-3
Minimum transmit power
CE (ERIP)
2.4 GHz: 7 dBm
5 GHz: 6 dBm in U-NII-1, 6 dBm in U-NII-2A, 6 dBm in U-NII-2C, 6
dBm in U-NII-3
FCC (Conducted Power)
2.4 GHz: 4 dBm
5 GHz: 4 dBm in U-NII-1, 4 dBm in U-NII-2A, 4 dBm in U-NII-2C,
4dBm in U-NII-3
Adjustable power increment: 1 dBm
*Note: MIMO combined power, excluding antenna gains. The actual
transmit power depends on local laws and regulations
- Omada AppYes
- Restore & BackupYes
- Firmware update via WebYes
- NTPYes
- Centralized ManagementOmada Hardware Controller
Omada Software Controller
Omada Central (Cloud-Based)
Omada App - Cloud AccessYes. Require the use of an Omada controller.
- Email AlertsYes
- LED ON/OFF ControlYes
- Management MAC Access ControlYes
- SNMPv1, v2c, v3
- SSHYes
- Web-based ManagementYes
- CertificationCE, FCC, RoHS
- Package ContentEAP603-Outdoor
Passive PoE Adapter
Power Cord
Installation Guide
Mounting Kit - EnvironmentOperating Temperature: -30 °C-70 °C (-22 °F-158 °F);
Storage Temperature: -40 °C-70 °C (-40 °F-158 °F);
Operating Humidity: 10%-90% non-condensing;
Storage Humidity: 5%-90% non-condensing
