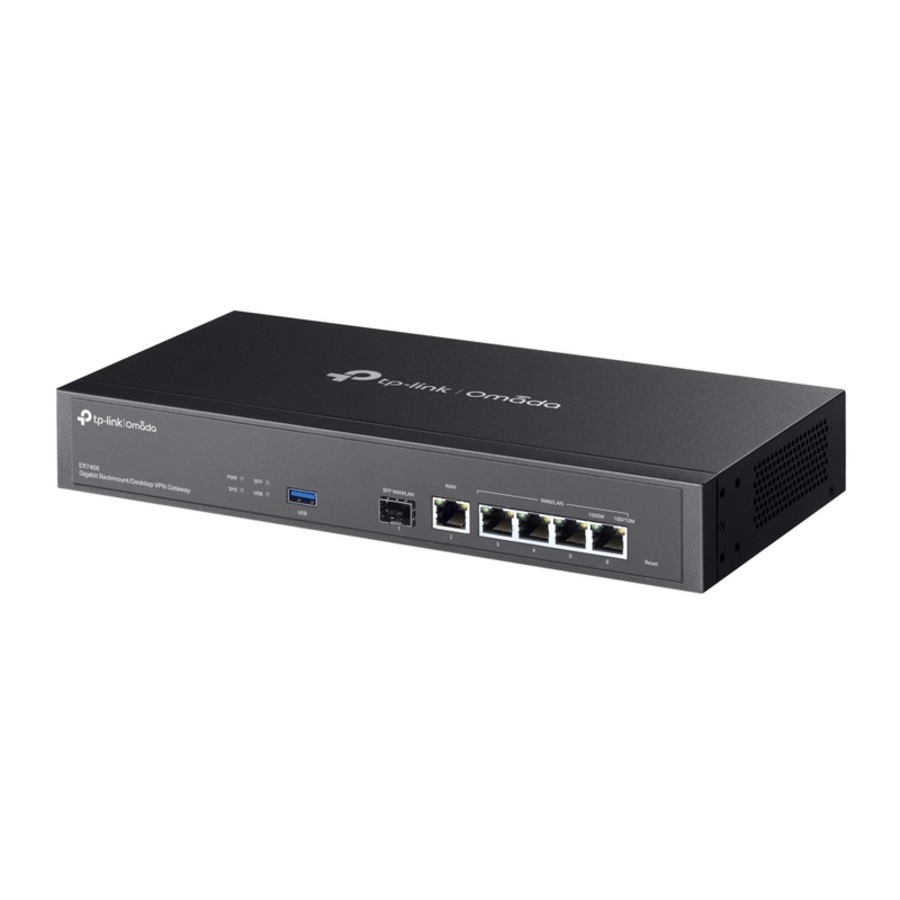

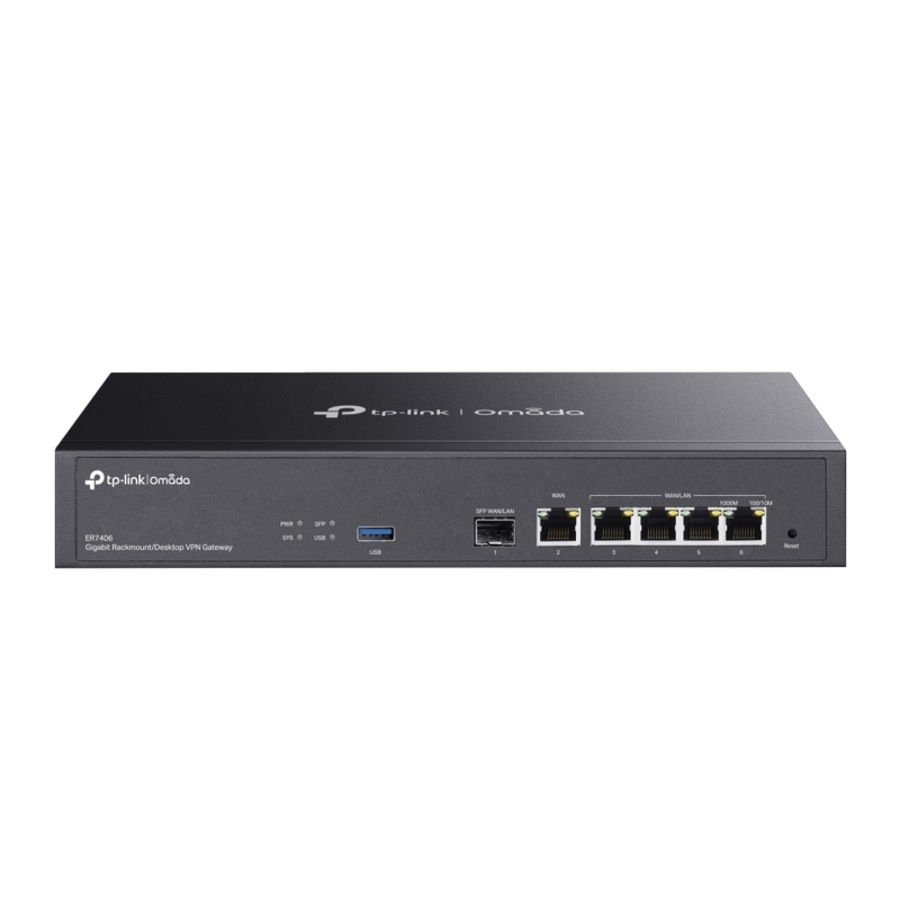

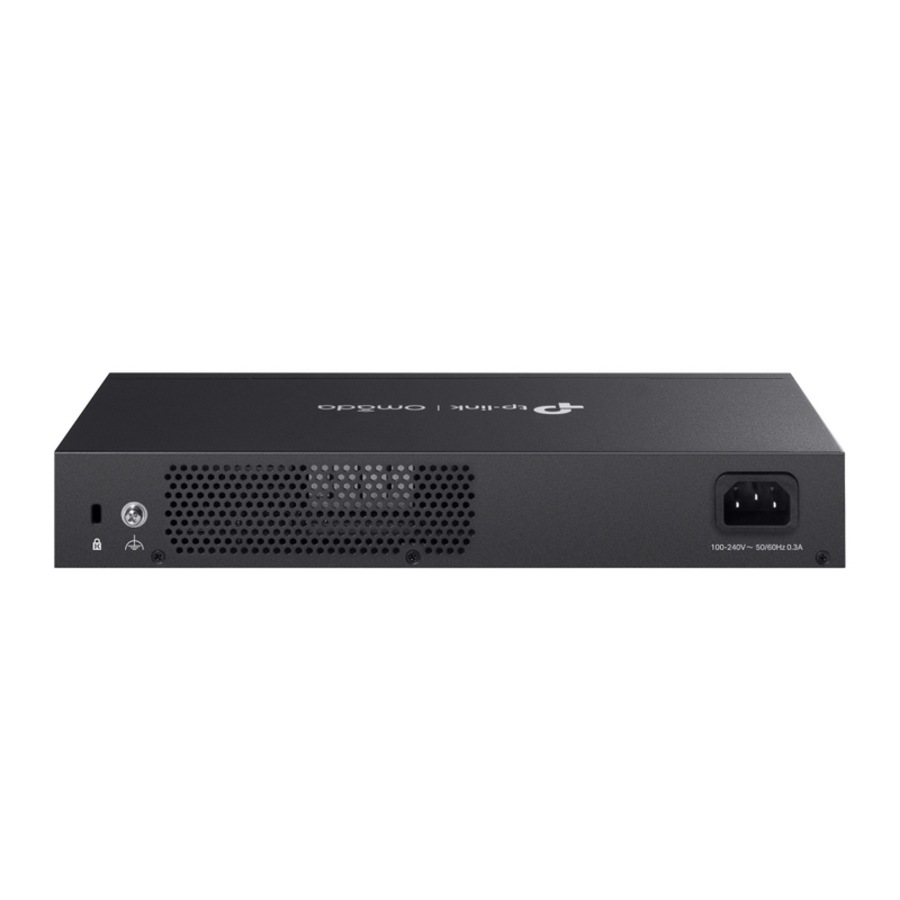

[ER7406] Omada Gigabit Rackmount/Desktop VPN Gateway, SFP WAN/LAN port

TP-Link ER7406, Omada Gigabit Rackmount/Desktop VPN Gateway

• 1x Gigabit SFP WAN/LAN port
• 5x Gigabit RJ45 ports (1x WAN, 4x WAN/LAN)
• 1x USB 3.0 port (Supports USB storage, and LTE backup with LTE dongle)
• Load Balancing on up to 5WAN ports raisesthe utilisation rate of multi-line broadband
• High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
• Centralised cloud management via the web or the Omada app*
• DoS defense, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security.
• Rackmount/Desktop
• Learn more about Omada Cloud SDN>?

SECURITY

• Access Control :Source/Destination IP Based Access Control
• Filtering :WEB Group Filtering^§
  URL Filtering
  Web Security^§
• ARP Inspection :Sending GARP Packets
  ARP Scanning^§
  IP-MAC Binding
• Attack Defense :TCP/UDP/ICMP Flood Defense
  Block TCP Scan (Stealth FIN/Xmas/Null)
  Block Ping from WAN

HARDWARE FEATURES

• Standards and Protocols :IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
  TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP
• Interface :1 Gigabit SFP WAN/LAN Port
  1 Gigabit WAN Port
  4 Gigabit LAN/WAN Ports
  1 USB 3.0 Port (supports USB LTE dongle and USB storage)
• Network Media :10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
  100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
  1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
• Fan Quantity :Fanless
• Button :Reset Button
• Power Supply :100-240VAC, 50/60Hz
• Flash :128 MB NAND
• DRAM :512 MB DDR4
• LED :PWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
• Dimensions ( W x D x H ) :11.6 x 5.5 x 1.7 in (294 x 140 x 44 mm)
• Protection :4 kV surge protection
• Enclosure :Steel
• Mounting :Desktop
  Rackmountable
• Max Power Consumption :7.5 W (with USB 3.0 connected)
  4.5 W (without USB 3.0 connected)

PERFORMANCE

• IPS Throughput :TCP: 229 Mbps;
  UDP: 188 Mbps
• DPI Throughput :TCP: 933 Mbps;
  UDP: 927 Mbps
• GRE :Unencrypted: 611.9 Mbps
  Encrypted: 325.0 Mbps
• WireGuard VPN :341.3 Mbps
• Concurrent Session :150,000
• New Sessions /Second :5,300
• NAT (Static IP) :945.3 Mbps / 940.5 Mbps
• NAT(DHCP) :939.6 Mbps / 940.9 Mbps
• NAT(PPPoE) :943.6 Mbps / 940.9 Mbps
• NAT (L2TP) :880.1 Mbps / 859.0 Mbps
• NAT (PPTP) :855.0 Mbps / 907.2 Mbps
• IPsec VPN Throughput :ESP-SHA1-AES256: 617.1 Mbps
  ESP-SHA256-AES256: 592.8 Mbps
  ESP-SHA384-AES256: 592.4 Mbps
  ESP-SHA512-AES256: 604.5 Mbps
• OpenVPN :139.1 Mbps
• L2TP VPN Throughput :Unencrypted: 977.4 Mbps
  Encrypted: 334.6 Mbps
• PPTP VPN Throughput :Unencrypted: 1064.1 Mbps
  Encrypted: 206.8 Mbps
• SSL VPN Throughput :131.6 Mbps
• 66 Byte Packet forwarding rate :1,453,489 pps / 1,453,488 pps
• 1,518 Byte Packet forwarding rate :81,279 pps / 81,275 pps

BASIC FUNCTIONS

• WAN Connection Type :Static IP
  Dynamic IP
  PPPoE(supports MRU Configuration)
  PPTP
  L2TP
• MAC Clone :Modify WAN/LAN MAC Address (LAN MAC Address can be modified only in Standalone Mode)
• DHCP :DHCP Server
  DHCPv6 PD Server (only in Standalone Mode)
  DHCP Options Customization
  DHCP Address Reservation
  Multi-IP Interfaces
  Multi-Net DHCP
• IPv6 :StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode
• VLAN :802.1Q VLAN
• IPTV :IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FUNCTIONS

• Advanced Routing :Static Routing
  Policy Routing
  RIP (available in Standalone Mode)
  OSPF (available in Standalone Mode)
• Bandwidth Control :IP-based Bandwidth Control
• Load Balance :Intelligent Load Balance
  Application Optimized Routing
  Link Backup (Timing, Failover)
  Online Detection
• NAT :One-to-One NAT
  Multi-Net NAT
  Port Forwarding
  Port Triggering^§
  NAT-DMZ
  FTP/H.323/SIP/IPSec/PPTP ALG
  UPnP
• Session Limit :IP-based Session Limit

VPN

• GRE :? (Only in Standalone Mode)
• SSL VPN :50 Tunnels
• IPsec VPN :100 IPSec VPN Tunnels
  LAN-to-LAN, Client-to-LAN
  Main, Aggressive Negotiation Mode
  DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
  IPsec Failover
  IKE v1/v2
  MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
  NAT Traversal (NAT-T)
  Dead Peer Detection (DPD)
  Perfect Forward Secrecy (PFS)
• PPTP VPN :PPTP VPN Server
  PPTP VPN Client (10)**
  50 Tunnels
  PPTP with MPPE Encryption
• L2TP VPN :L2TP VPN Server
  L2TP VPN Client (10)**
  50 Tunnels
  L2TP over IPSec
• OpenVPN :OpenVPN Server
  OpenVPN Client (5)**
  55 OpenVPN Tunnels
  "Certificate + Account" Mode
  Full Mode

AUTHENTICATION

• Web Authentication :No Authentication
  Simple Password*
  Hotspot (Local User /Voucher*/ SMS/Radius*)
  External Radius Server
  External Portal Sever<*
  LDAP^§

MANAGEMENT

• Omada App :Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management :Omada Cloud-Based Controller
  Omada Hardware Controller
  Omada Software Controller
• Cloud Access :Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Service :Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
• Maintenance :Web Management Interface
  Remote Management
  Export & Import Configuration
  SNMP v1/v2c/v3
  Diagnostics (Ping & Traceroute) (only in Standalone Mode)
  NTP Synchronize (only in Standalone Mode)
  Port Mirroring
  CLI (only in Standalone Mode)
  Syslog Support
• Zero-Touch Provisioning :Yes. Requires the use of Omada Cloud-Based Controller.
• Management Features :Automatic Device Discovery*
  Batch Configuration*
  Batch Firmware Upgrading*
  Intelligent Network Monitoring*
  Abnormal Event Warnings*
  Unified Configuration*
  Reboot Schedule*

OTHERS

• Certification :CE, FCC, RoHS
• Package Contents :ER7406
  Power Cord
  Quick Installation Guide
  Rackmount Kit
• System Requirements :Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10
  MAC OS, NetWare, UNIX or Linux
• Environment :Operating Temperature: 0 °C to 50 °C (32 °F to 122°F)
  Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
  Operating Humidity: 10% to 90% non-condensing
  Storage Humidity: 5% to 90% non-condensing
