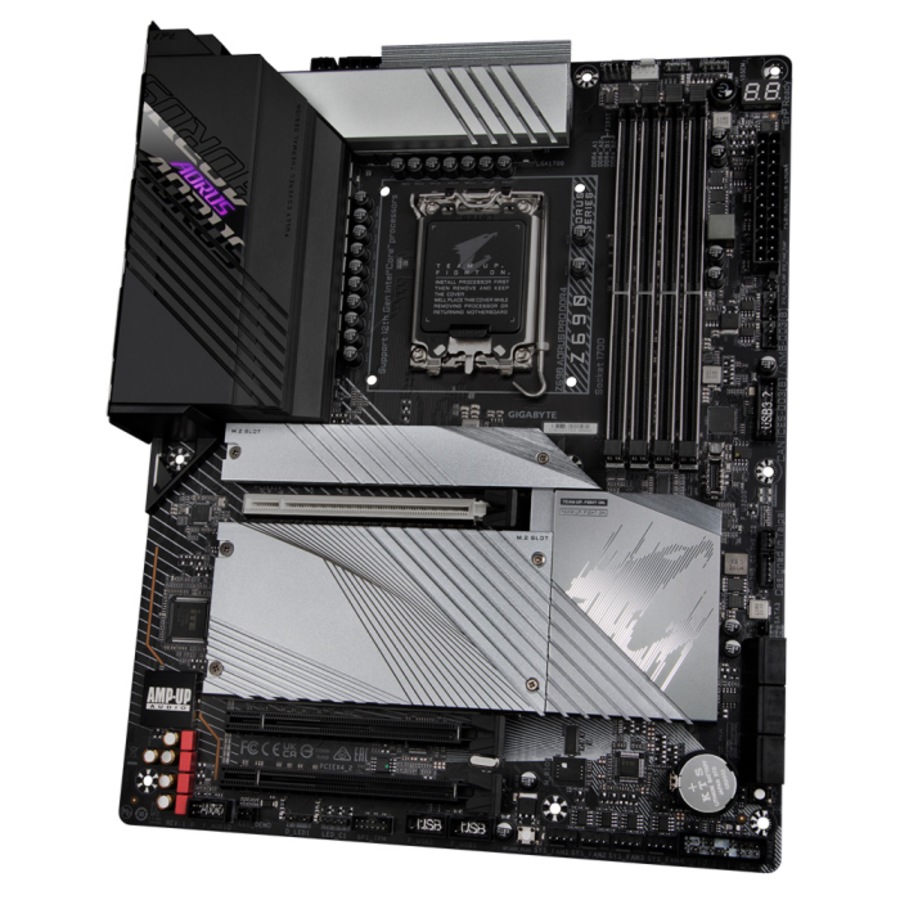

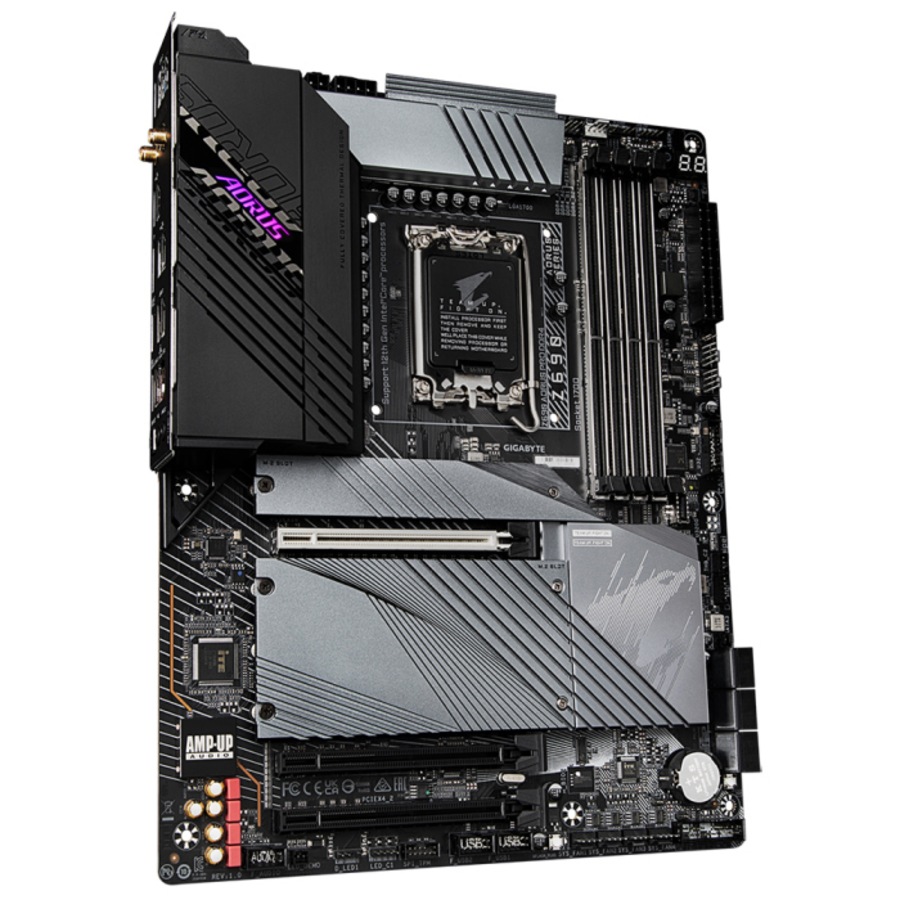

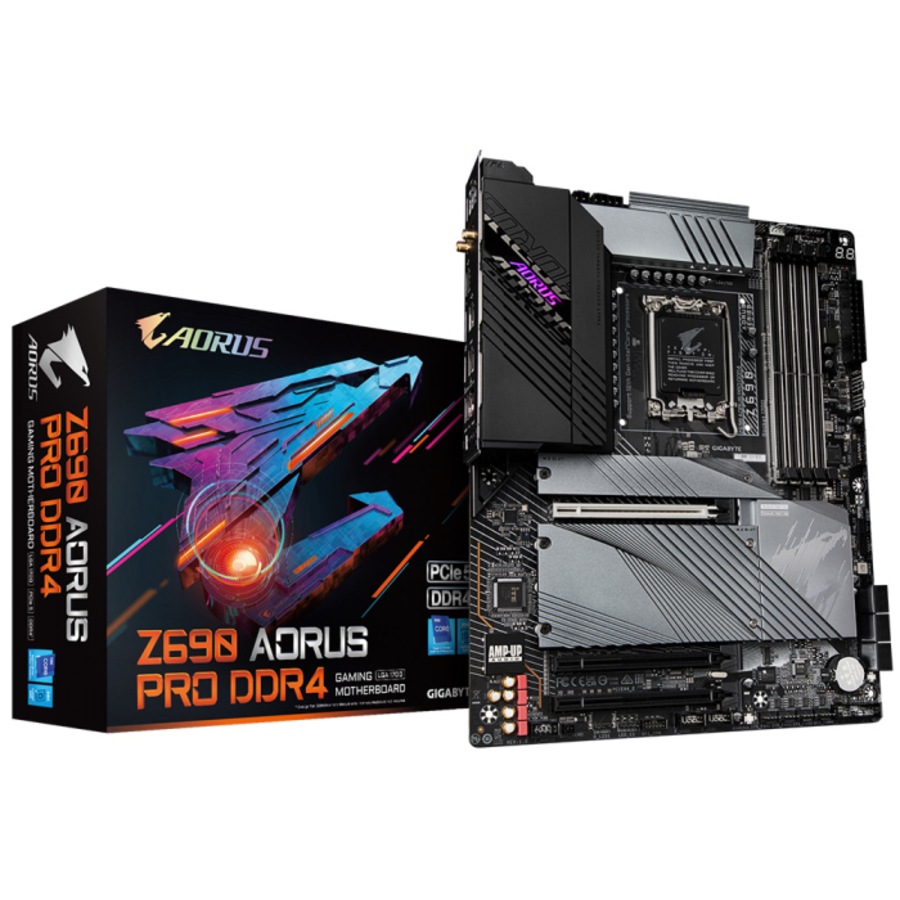

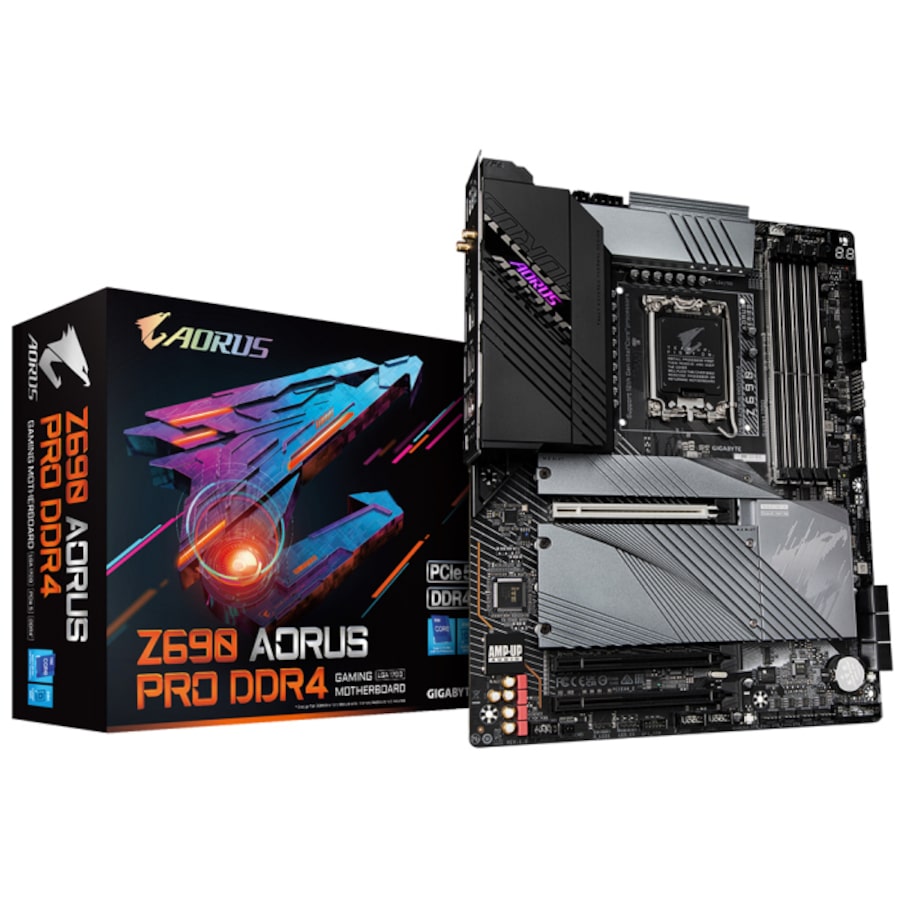

Gigabyte Z690 Aorus Pro DDR4 12th Gen Intel ATX Motherboard For PC/Desktop CPU
0 pts
Collect a minimum of 1x base points- Free shipping on this item
- ETA 05 May 2026 - 10 May 2026Estimated time of arrival Tuesday 05 May 2026 to Sunday 10 May 2026
- Sold and shipped by KG Superstore
Gigabyte Z690 AORUS PRO DDR4 Intel ATX Motherboard, 4x DDR4 ~128GB, 3x PCI-E x16, 4x M.2, 6x SATA3, 1x USB-C, 8x USB 3.2, 4x USB 2.0
Features:
-
Supports 12th Gen Intel® Core™ Series Processors
-
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
-
16+1+2 Direct Digital VRM Design with 90A Power Stage* and Tantalum Polymer Capacitor
-
Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
-
Intel® WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna
-
Hi-Fi Audio with ALC4080 and WIMA Audio Capacitors
-
Fast 2.5GbE LAN with Bandwidth Management
-
4x Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Enlarged Thermal Guard
-
SuperSpeed USB 3.2 Gen2x2 TYPE-C delivers up to 20Gb/s transfer speeds
-
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
-
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
-
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Includes:
-
1x Gigabyte Z690 Aorus Pro DDR4 Intel ATX Motherboard
CPU
- LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
- L3 cache varies with CPU
- Chipset: Intel® Z690 Express Chipset
Memory
- DDR4 5600(O.C.)/ 5400(O.C.)/ 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
- 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory module
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)
Audio
- Realtek® ALC4080 CODEC
- High Definition Audio
- 2-channel analog output
- Support for S/PDIF Out
7.1-channel digital signals
* Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.
- LAN: Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
This item comes with a 36-month warranty.
