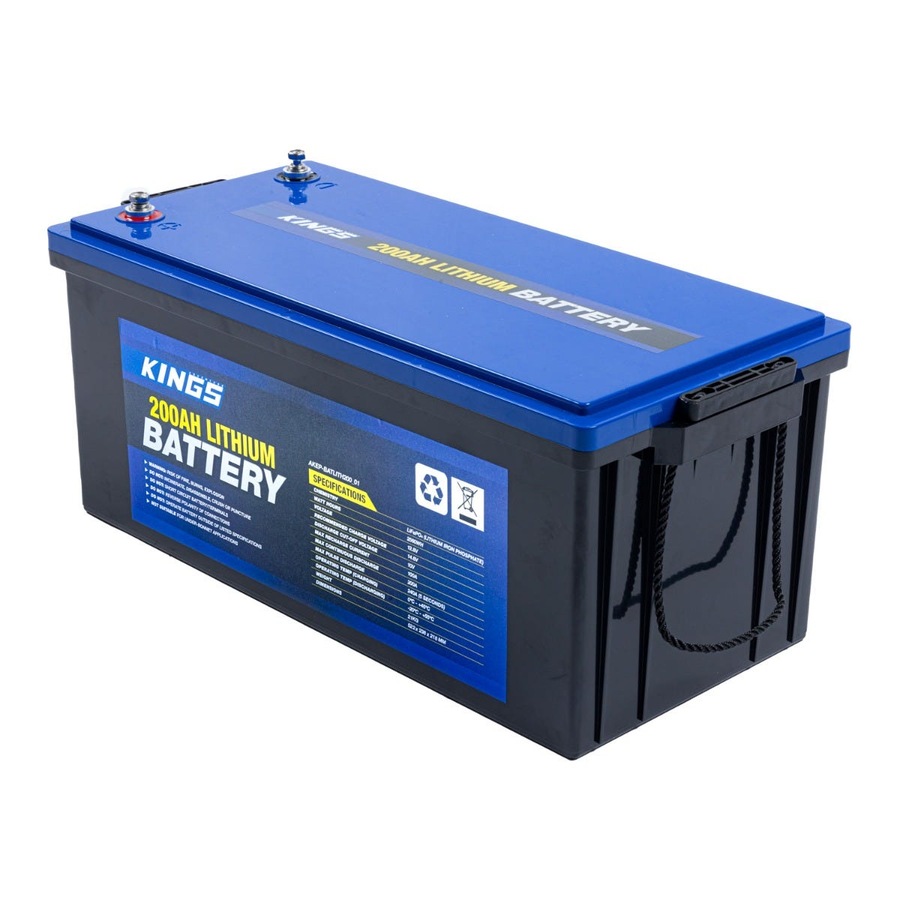

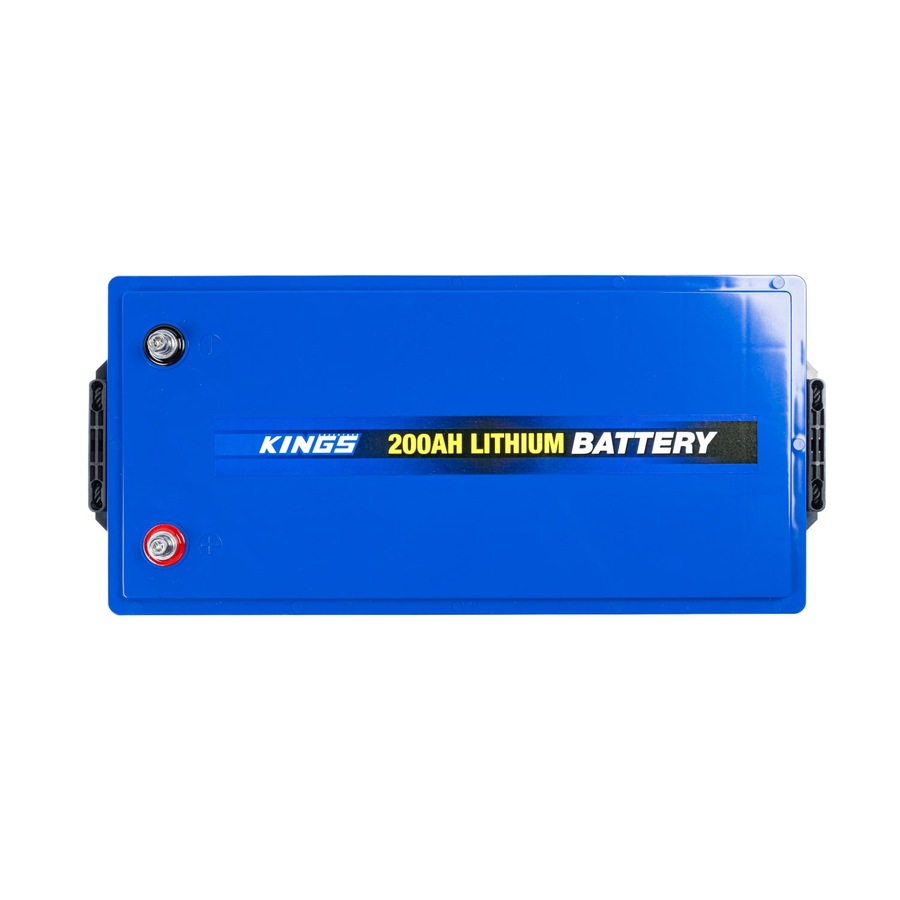

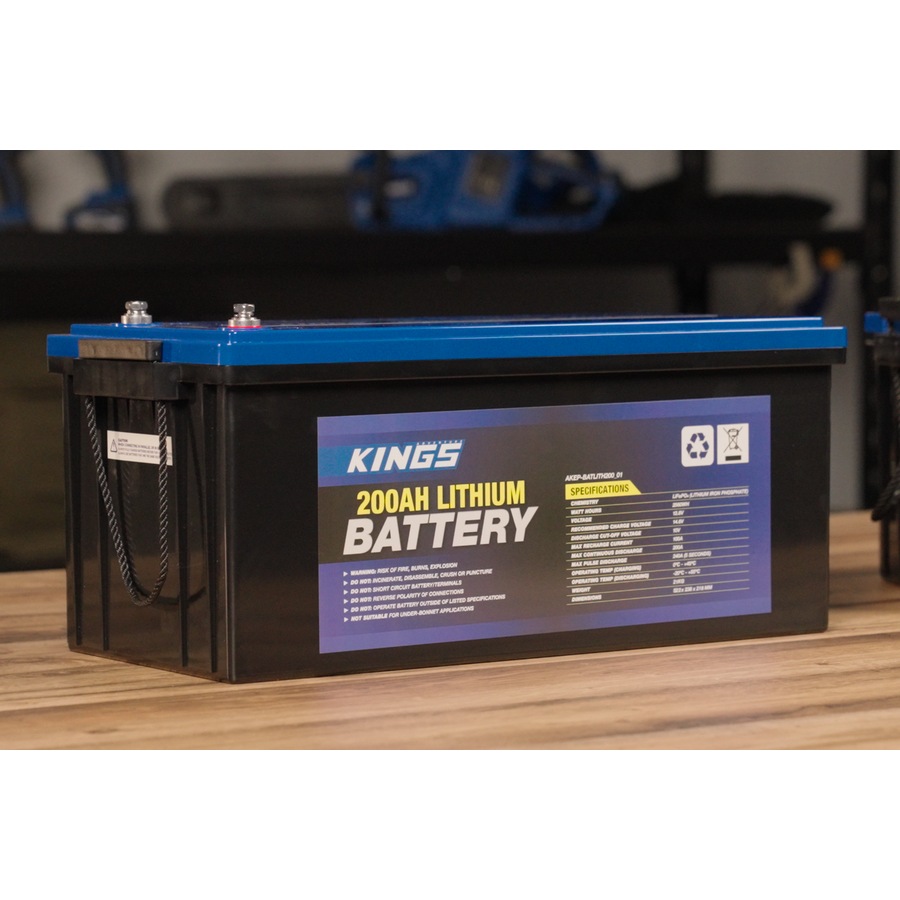

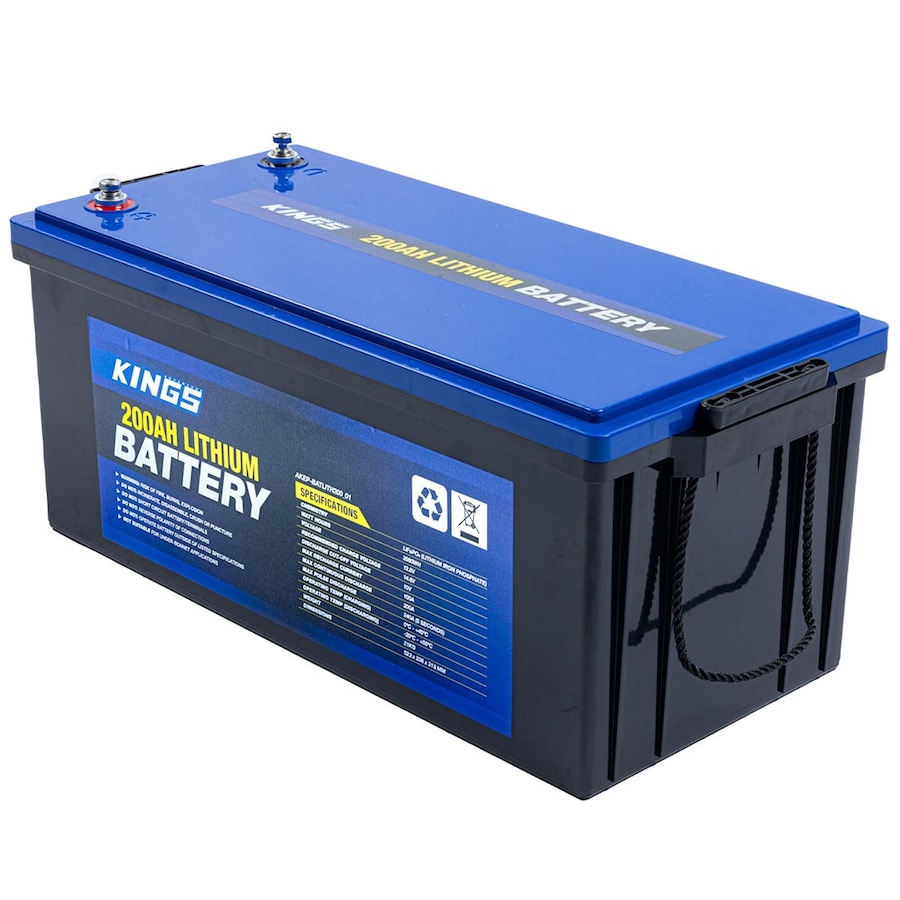

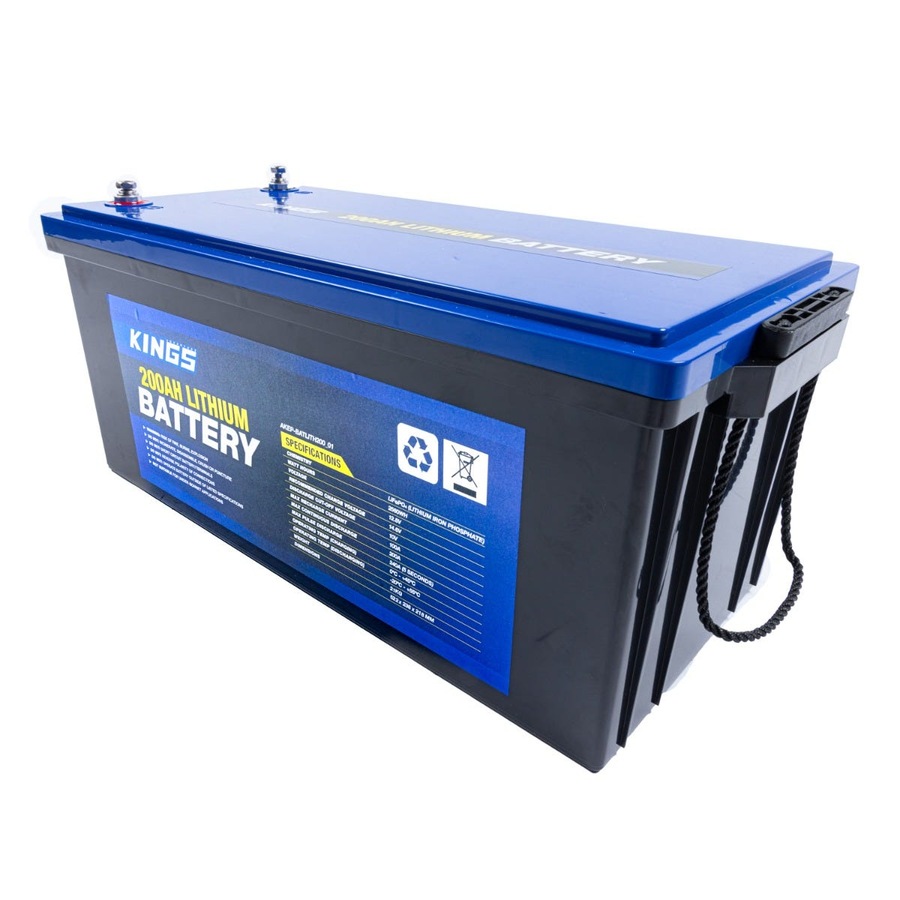

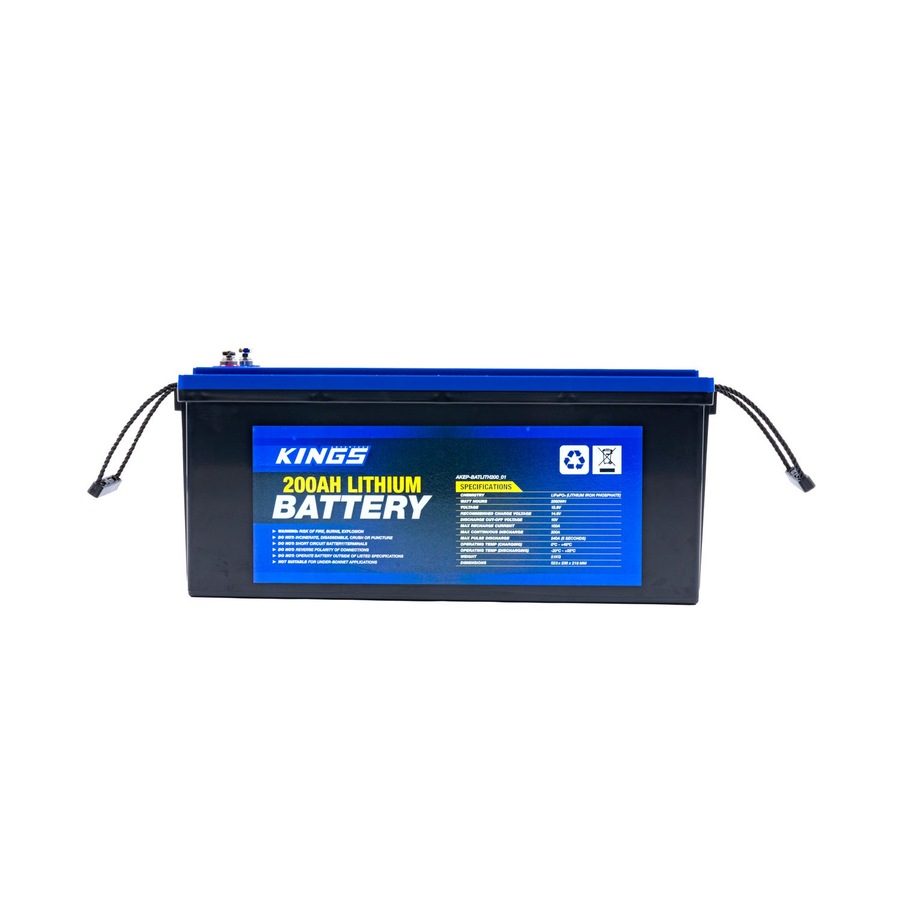

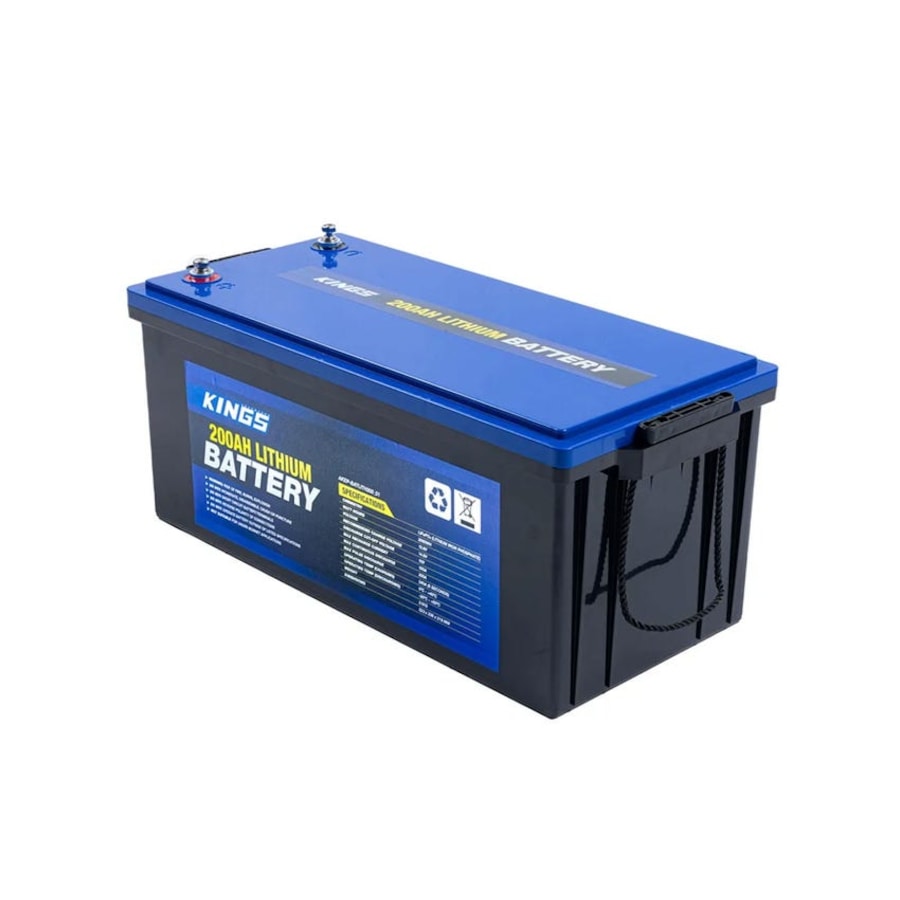

Kings 200Ah Lithium Battery 12V LiFePO4 Prismatic Cell Quality integrated BMS

Kings 12V 200Ah Deep Cycle Lithium LiFePO4 Battery | Quality integrated BMS | Long Life


Product includes:
----------------------------------
12V 200Ah Deep Cycle Lithium LiFePO4 Battery x 1
----------------------------------



• Lightweight! Just ~23kg for 200Ah Capacity
• 2000+ Cycles at 80% Depth of Discharge
• Integrated High Quality Battery Management System (BMS)
• Safe Lithium Iron Phosphate LiFePO4 Chemistry
• Thermal, Overload, High/Low Voltage Cutoff & Short Circuit Protection
• 3 Year warranty

KINGS 12V 200AH BATTERY

Chemistry LiFePO4
Rated Capacity 200Ah
Rated Energy 2560Wh
Nominal Voltage 12.8V
Recommended Charging Voltage 14.6V
Rated Float Charge Voltage 14.2V
Low Voltage Cut-off 10V
Max Continous Discharge Current 200A
Max Pulse Discharge Current (5 Seconds) 500A
Max Recommended Charge Current 100A
Max Charging Current 200A
Operating Temperature - Charging 0 to 50°C
Operating Temperature - Discharging -20 to 60°C
Life Cycles >2000
Cell Construction Prismatic
Case Material ABS

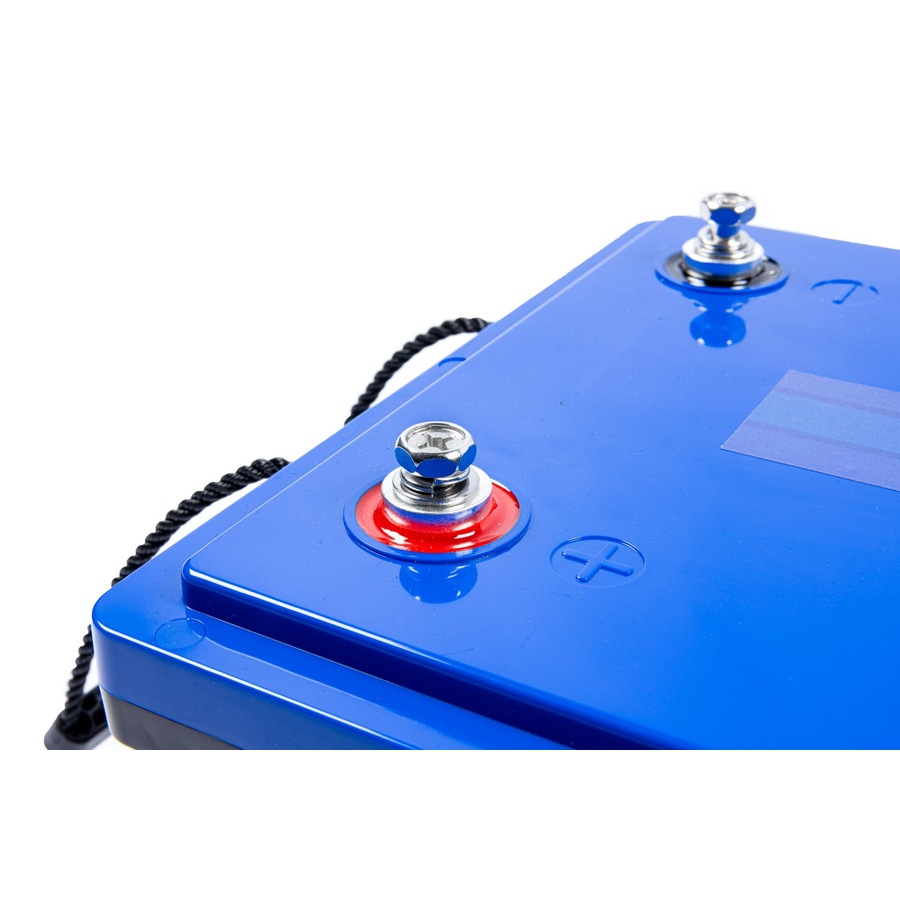

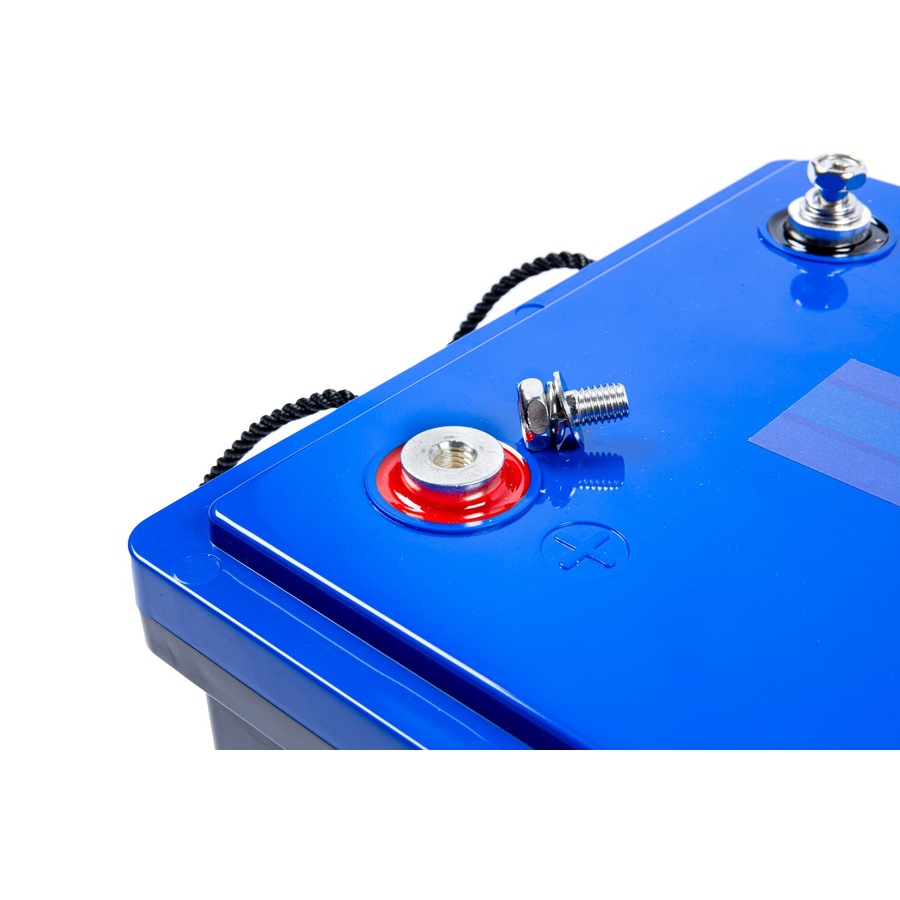

Terminals M8 Threaded
Hardware Included 2 X M8 Bolts, 2 x Flat Washers, 2 x Spring Washers
Included Wiring N/A
Allowed Batteries Connected in Series Bank (Same Batch) 4
Allowed Batteries Connected in Parallel (Same Batch) 2

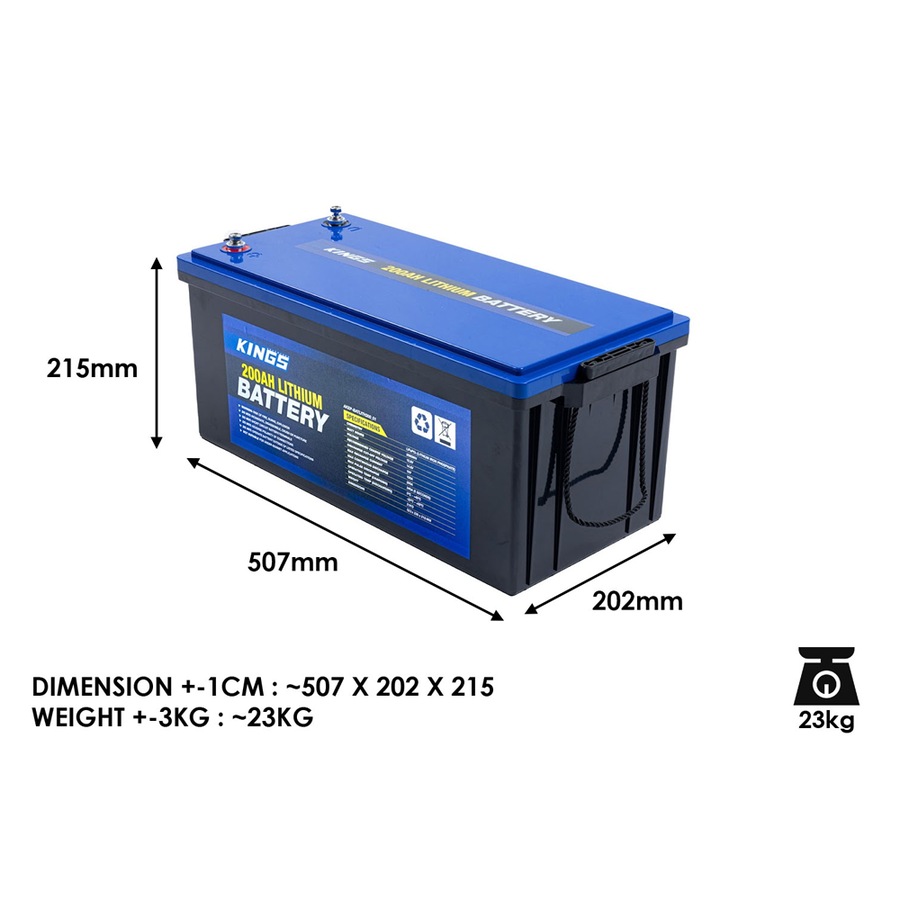

Dimension (LxWxH) ±5mm 525 x 220 x 220mm (520x241x224 or 530x206x216)
Weight ±1kg 20.2kg
Warranty 3 Years

Title: Kings 12V 200Ah Deep Cycle Lithium LiFePO4 Battery
Chemistry: LiFePO4
Rated Capacity: 200Ah
Rated Energy: 2560Wh
Nominal Voltage: 12.8V
Recommended Charging Voltage: 14.6V
Rated Float Charge Voltage: 14.2V
Low Voltage Cut-off: 10V
Max Continous Discharge Current: 200A
Max Pulse Discharge Current (5 Seconds): 500A
Max Recommended Charge Current: 100A
Max Charging Current: 200A
BMS Protections: Over Charge Voltage, Over Discharge Voltage, Over Charge Current, Over Discharge Current, Short Circuit, Over Temperature, Under Temperature
Operating Temperature - Charging: 0 to 50°C
Operating Temperature - Discharging: -20 to 60°C
Life Cycles: >2000
Cell Construction: Prismatic
Case Material: ABS
Terminals: M8 Threaded
Hardware Included: 2 X M8 Bolts, 2 x Flat Washers, 2 x Spring Washers
Included Wiring: N/A
Allowed Batteries Connected in Series Bank (Same Batch): 4
Allowed Batteries Connected in Parallel (Same Batch): 2
Dimension (LxWxH) ±5mm: 525 x 220 x 220mm (520x241x224 or 530x206x216)
Weight ±1kg: 20.2kg
Warranty: 3 Years
