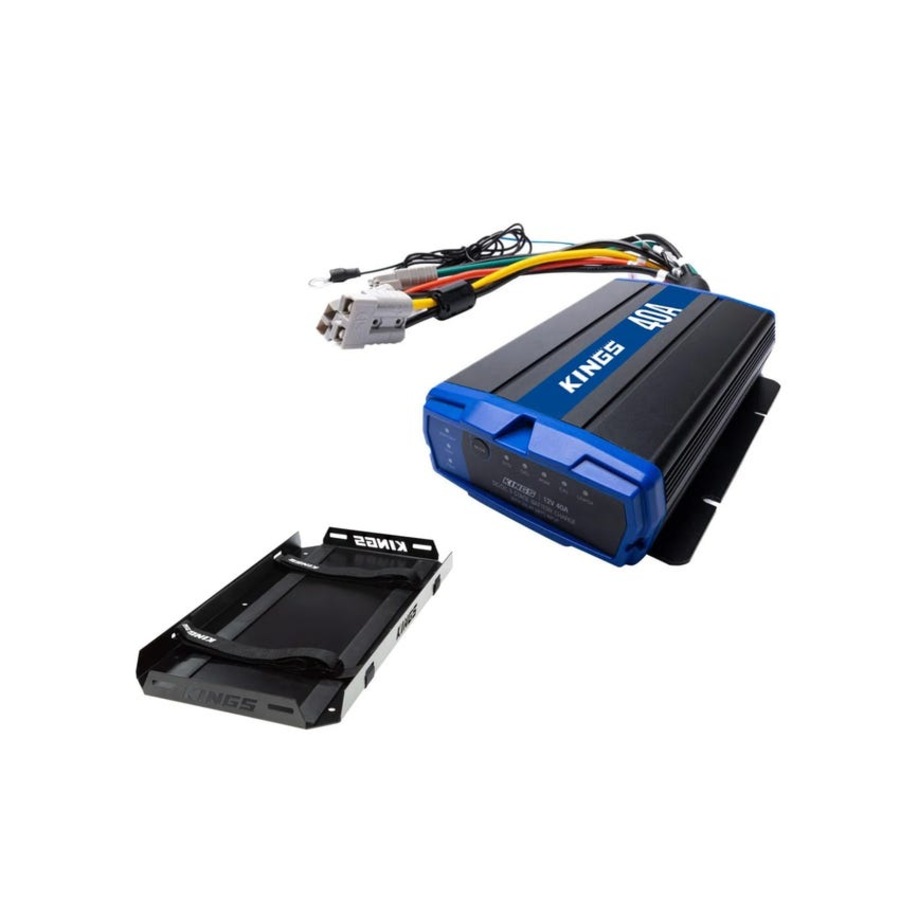

Kings 40A DC-DC Charger + 200AH Battery Tray Powder Coated Steel

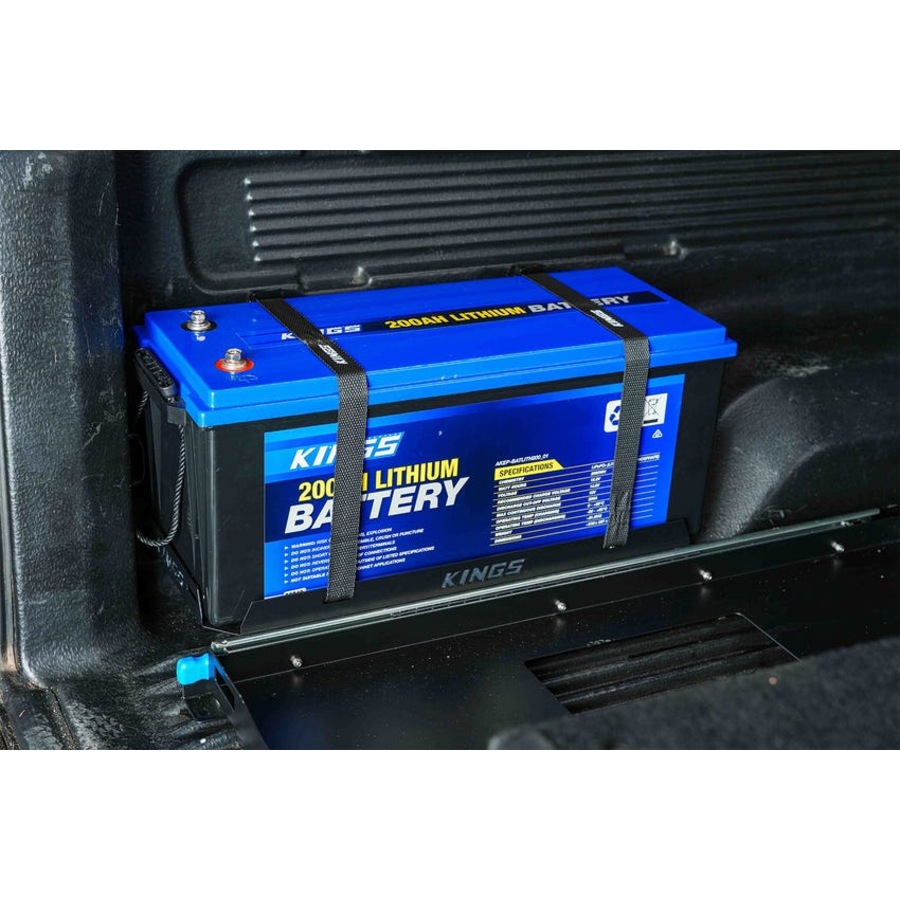

The Adventure Kings Battery Tray is designed to securely mount the Kings 200Ah Battery. The provided mounting hardware and pre-drilled holes ensure a safe set-up. 1.2mm powder-coated steel tray keeps your battery secure and stable. Included are padded strips for vibration protection, adjustable cambuckle tie-down straps (2 x 1m), and it features a handy cable cut-out for neat, easy wiring. Not suitable as a spill tray for trailers or caravans. Suitable batteries : AKEP-BATLITH200_01

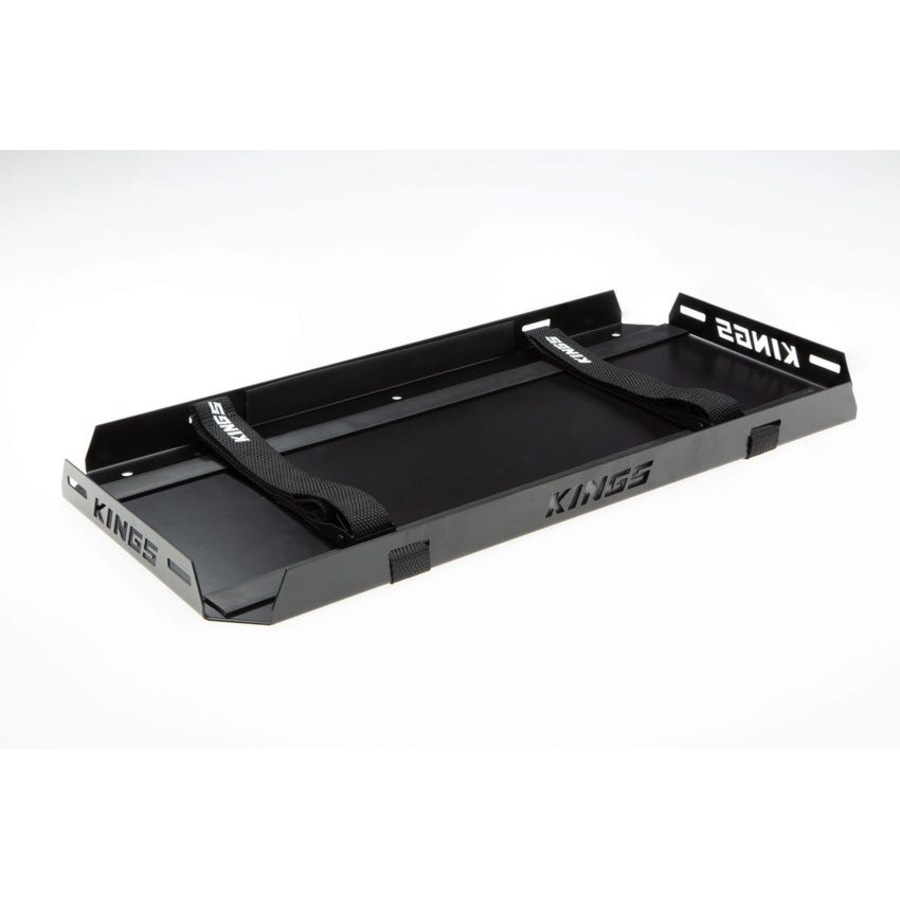

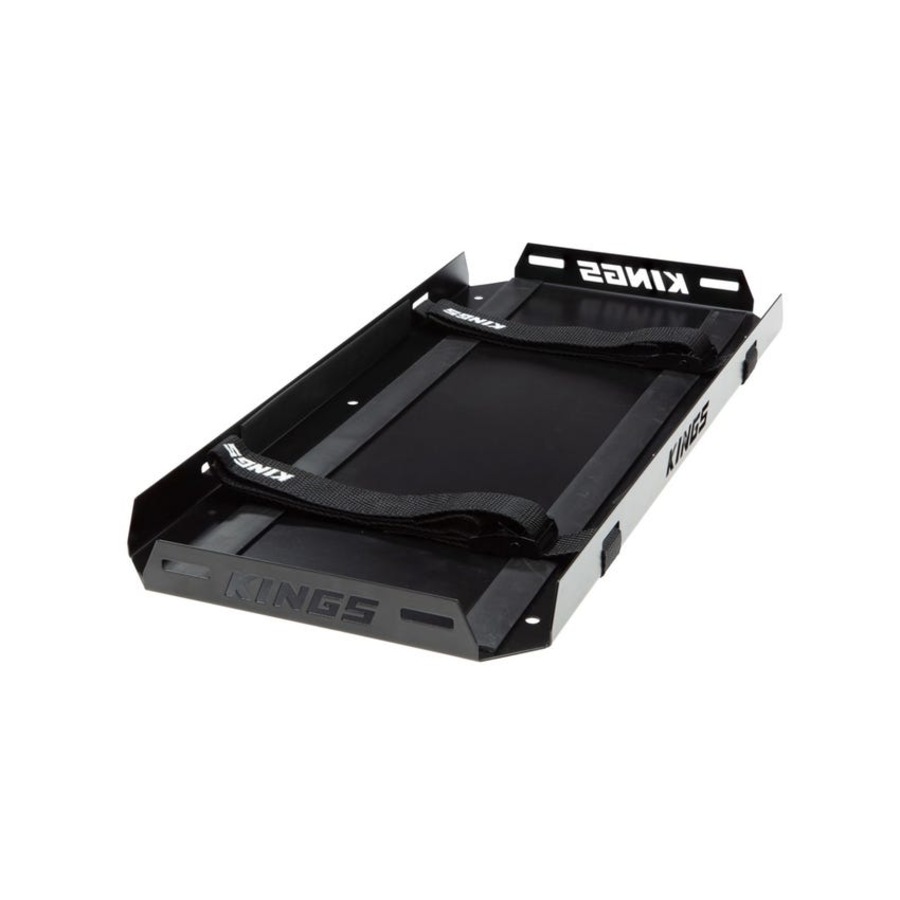

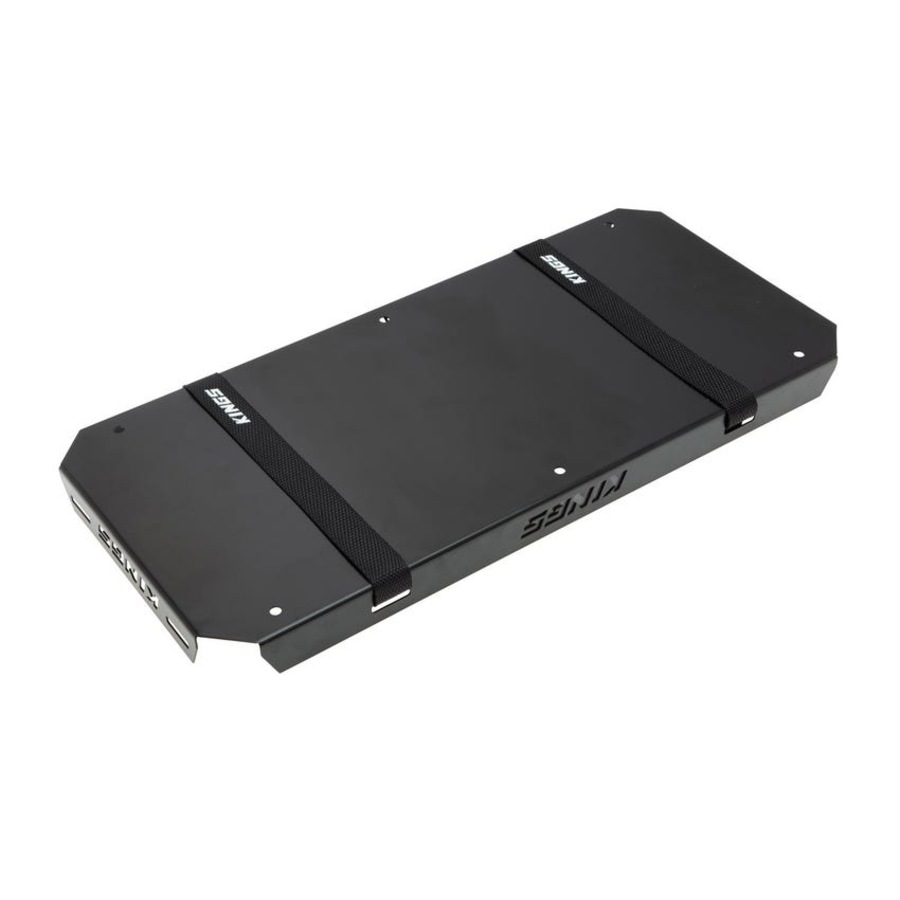

KINGS 200AH BATTERY TRAY

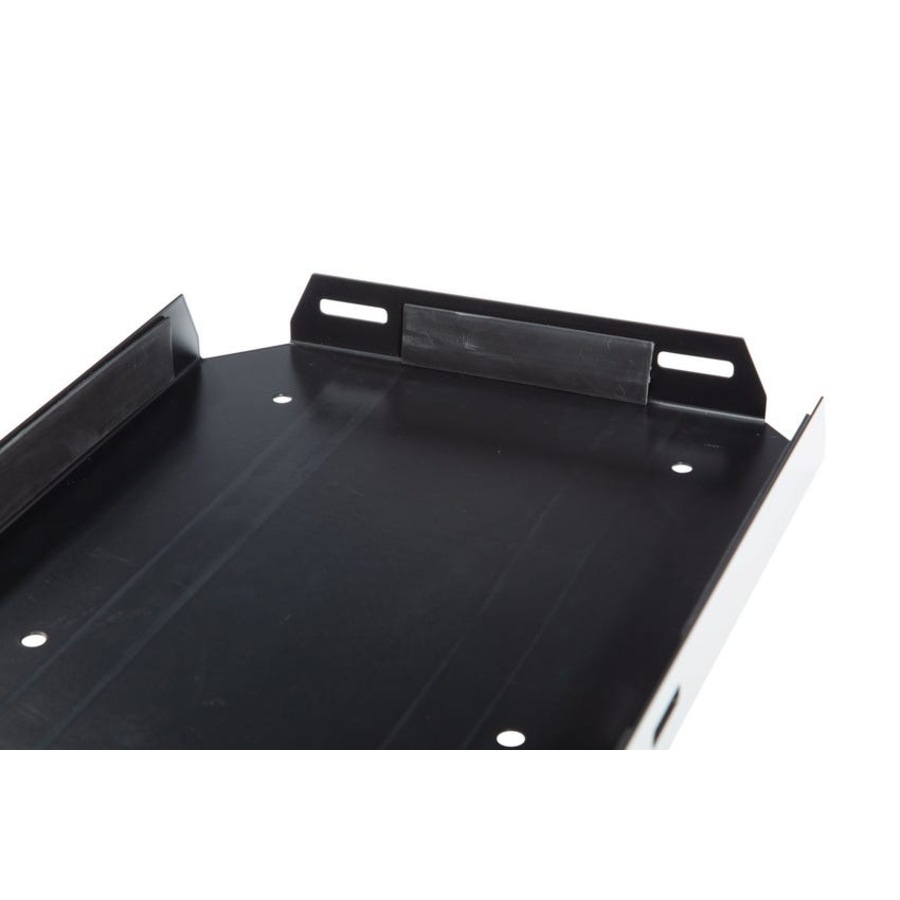

This 1.2mm powder-coated steel tray keeps your battery secure.



Tray Dimensions 501 (L) x 234 (W) x 31(H) mm
Material 1.2mm Powder Coated Steel
Accessories Padded, glued rubber strips
Included Hardware 2 x 1m Straps
X 6 M8 mounting bolts and Nyloc nuts
Weight 1.7 kg
Warranty 1 Year

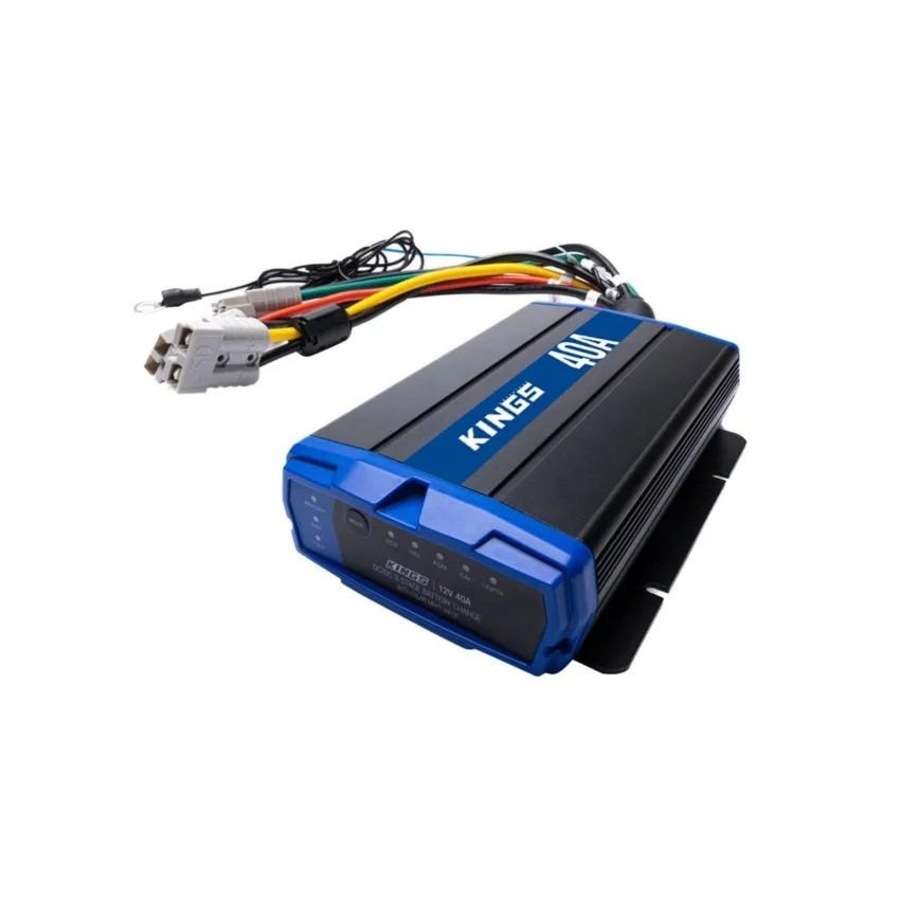

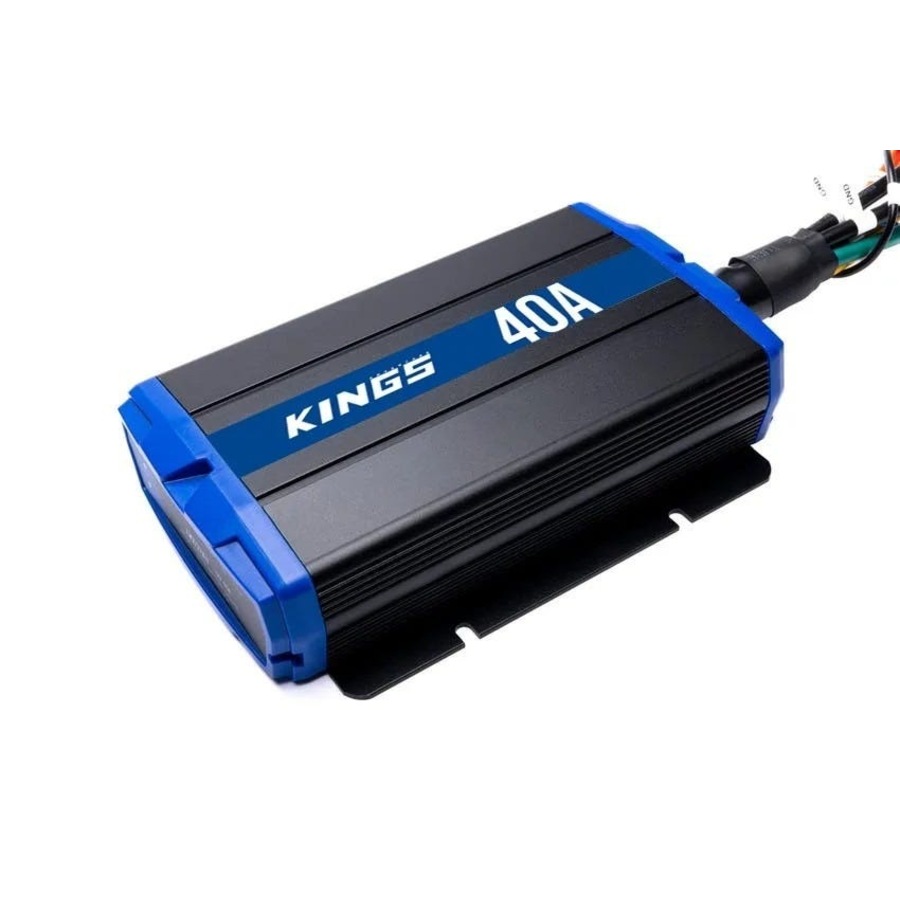

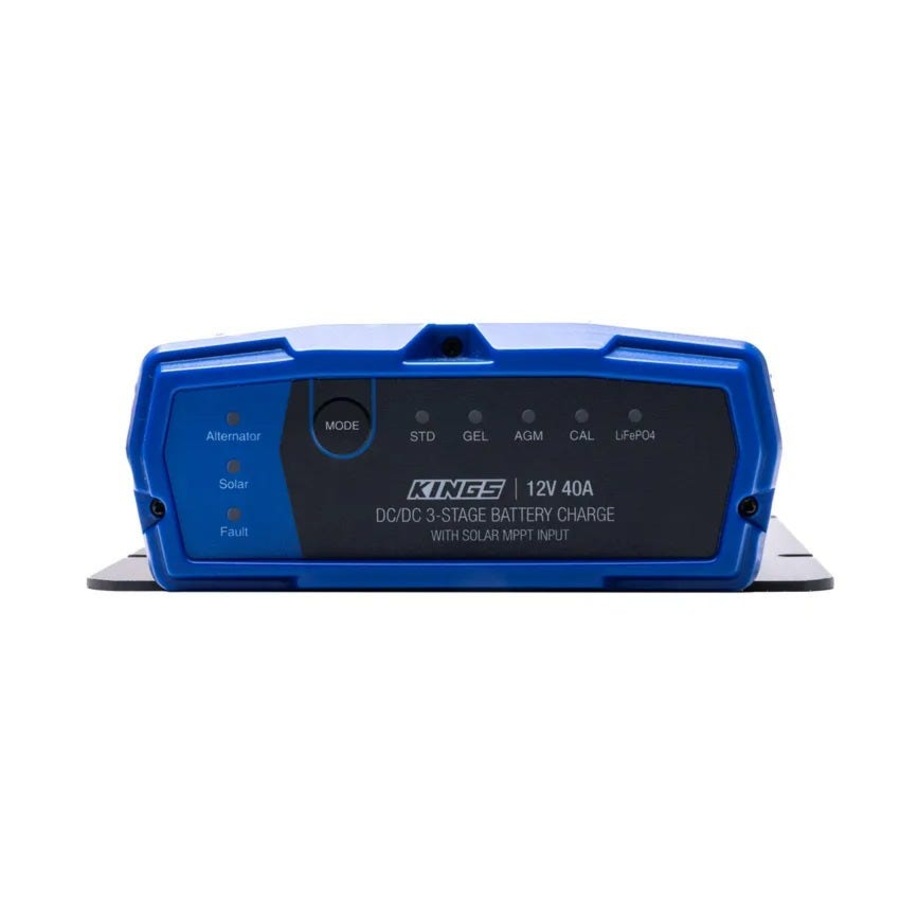

40A DCDC CHARGER



The 40A DCDC Charger has built in MPPT Solar Regulator that tracks the maximum power point of a connected solar panel (at minimum of 30W input).

At night, the charger will pull only from your alternator.

When you stop at camp and turn off your vehicle, the DCDC will automatically swap over to solar charging.

If you're driving in the sun with both alternator and solar input, the DCDC will automatically prioritise solar input once it reaches the changeover threshold of 350W of solar power input.



Max. Continuous Charging Current 40A
Max. Output Power 500W
Max. Input Current 47A
Vehicle Input Working Voltage Range (12V) 11.8 - 18V
Vehicle Input Working Voltage Range (24V) 23.6 - 32V
Solar Input Range 10 - 32V (Minimum 12V to start)
Min. Input start-up Voltage - Vehicle (Ign Wire NOT fitted) 13.8V
Min. Aux Battery Voltage (Lithium) 0V (Wake Function)
Min. Aux Battery Voltage (Lead Acid) 4V
Idle Current Draw 15mA
Operating Temperature -20°C to 80°C (with automatic 5-stage current derating)
Dimensions (LxWxH) 191mm x 131mm x 47mm
Weight ~1.3kg
Temperature Compensation Yes ±18mV/°C
Housing Powder coated aluminium
LED Indicator lights Yes - for connection, charging status and errors
Battery Chemistry Selection Yes - Lithium (LiFePO4), AGM, wet lead acid, gel, calcium
Fuses required Yes - not supplied (50A Suggested)
IP Rating IP66
