Kings UHF CB Radio - 5W -80 Channel UHF- Remote Display Unit + UHF Aerial

The In-Cab UHF offers 80 channels and 5W of transmitting power, giving you the highest legal public access to radio channels available in Australia. The Adventure Kings In-Cab UHF is an essential part of any 4WD, and you can be rest assured knowing you're always within reach, whether it's a quick check-in with your convoy or an emergency call.

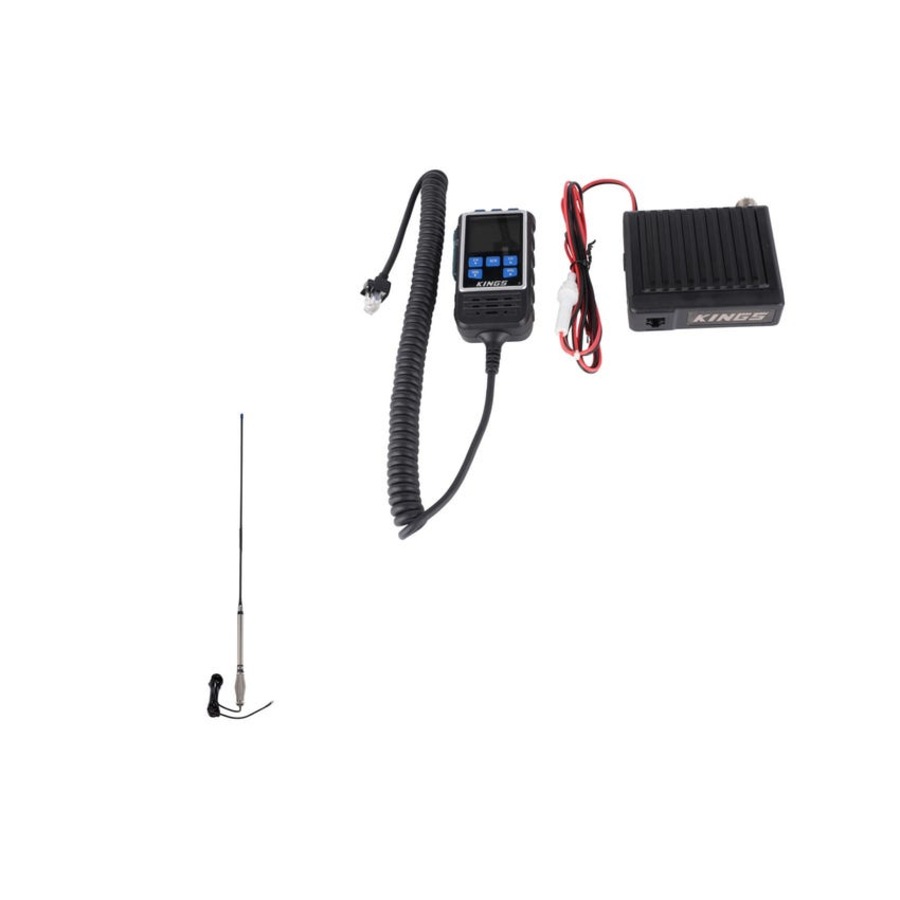

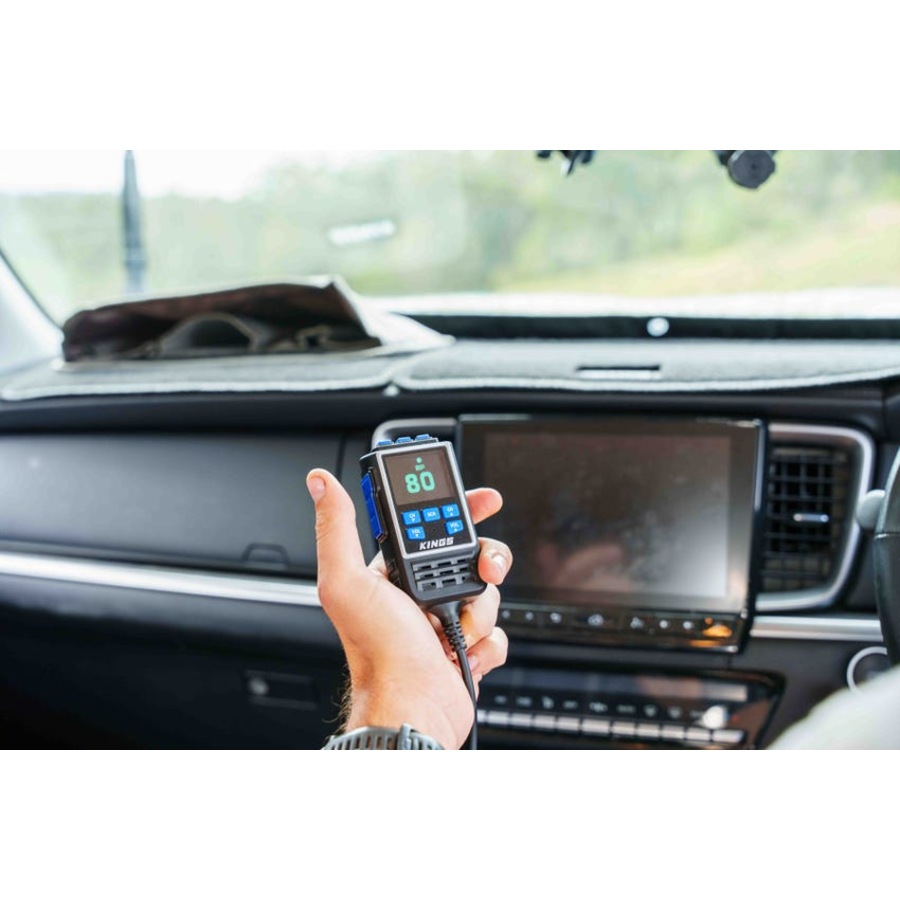

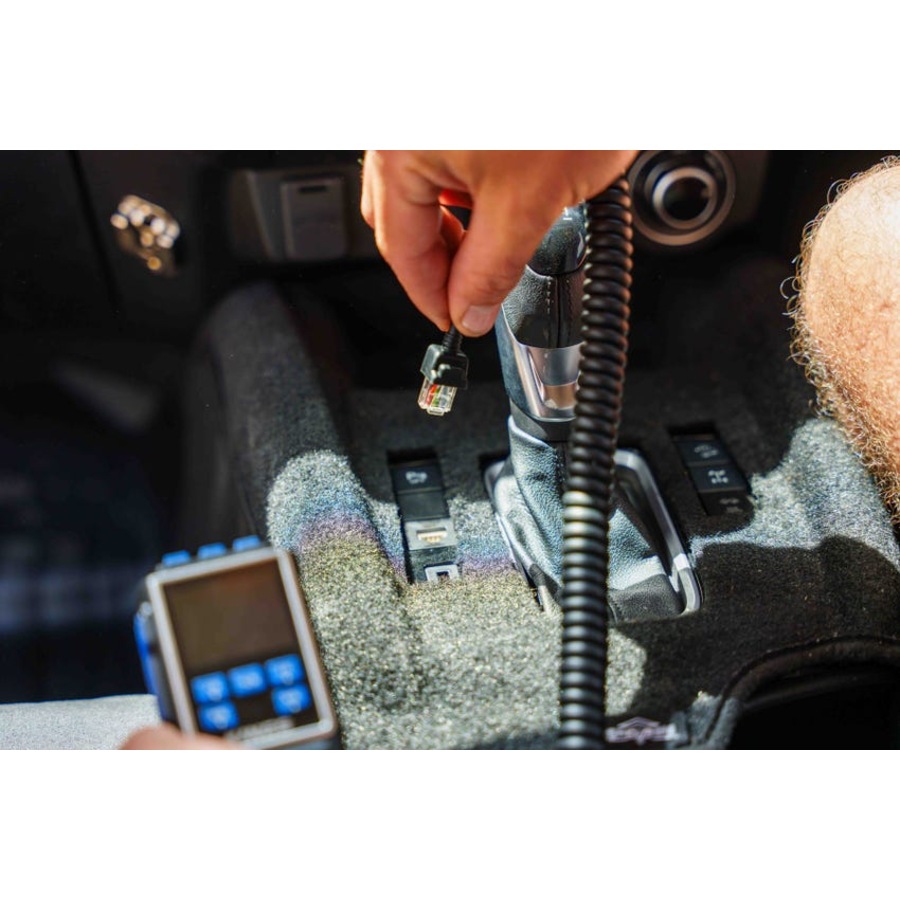

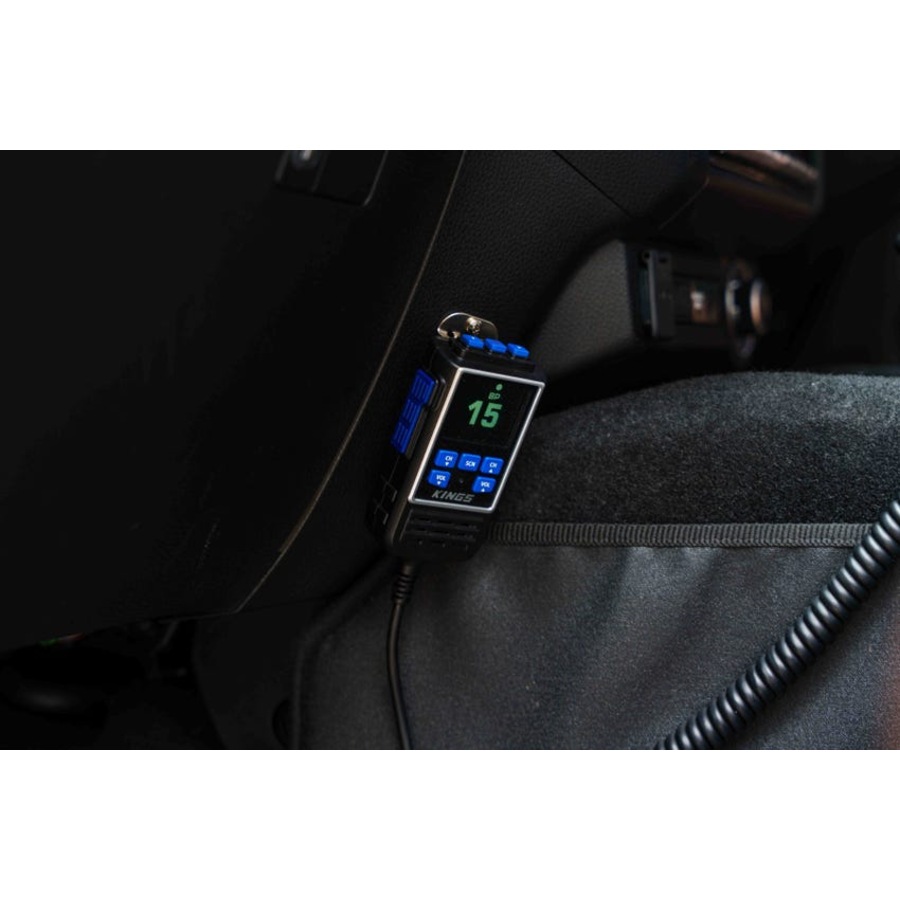

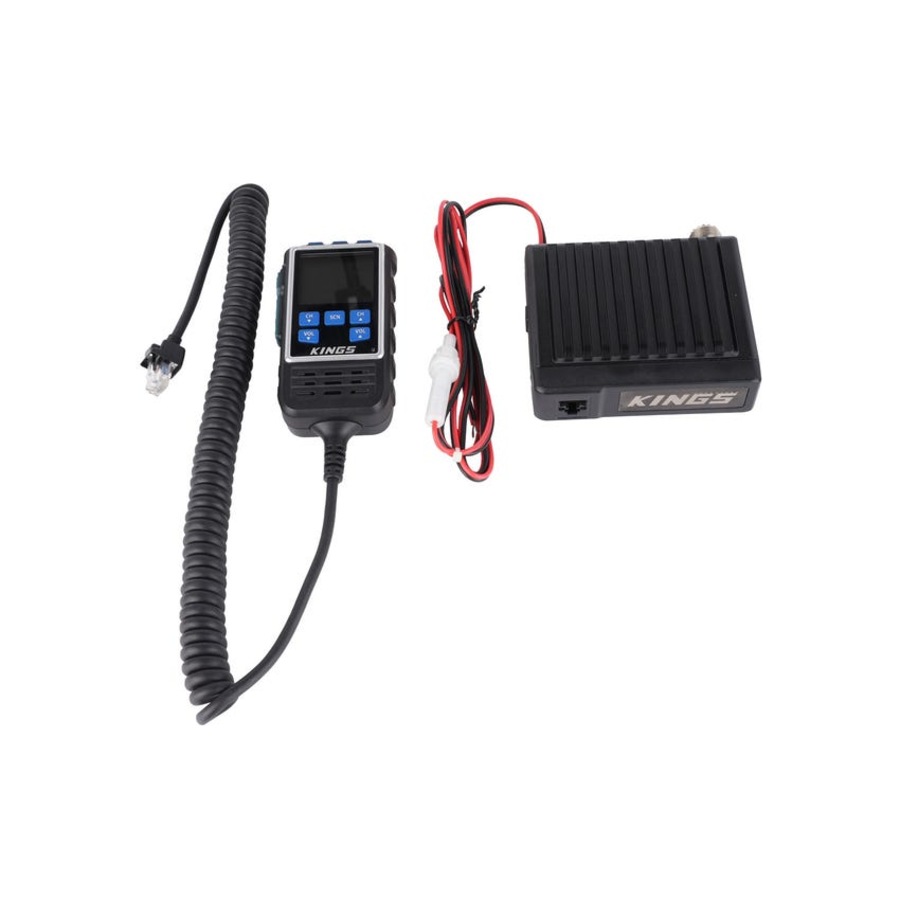

• The UHF Radio comes with all you need to wire it in and get the radio turned on. The included wiring has an inbuilt fuse and a handpiece extension cable, allowing you to mount the transceiver behind the dash and run a port to a switch blank on your vehicle's dash. The included hand-pieced mount allows you to set your radio up on the dash at an easy-to-reach location

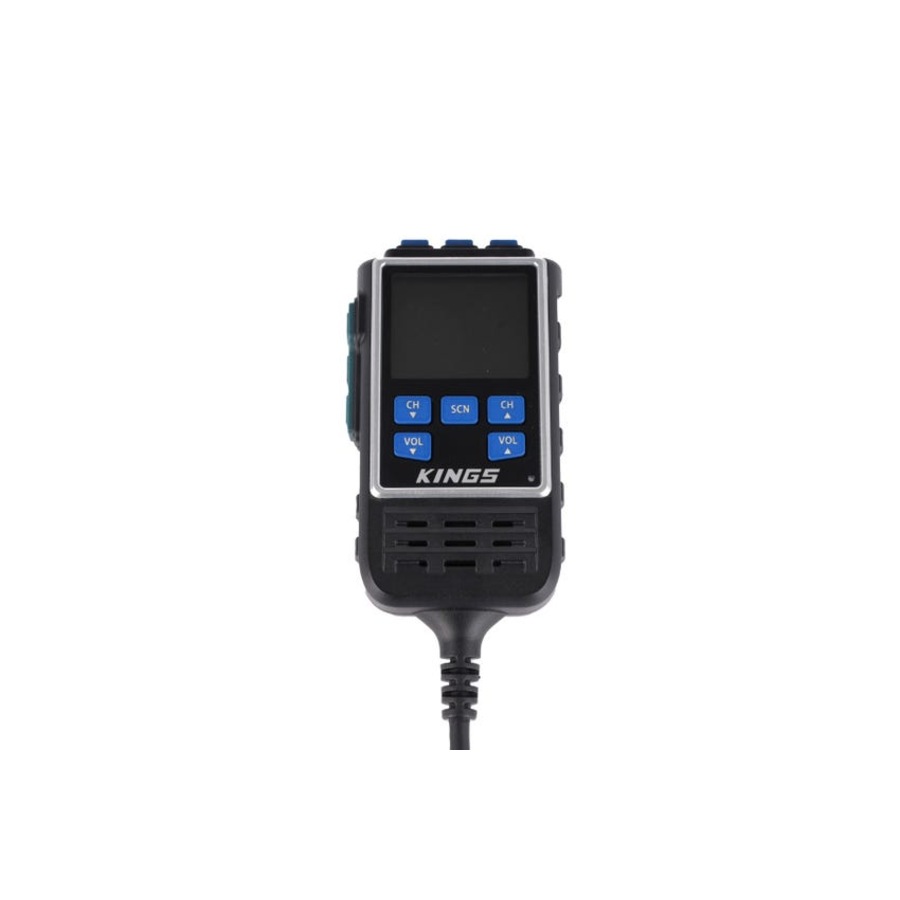

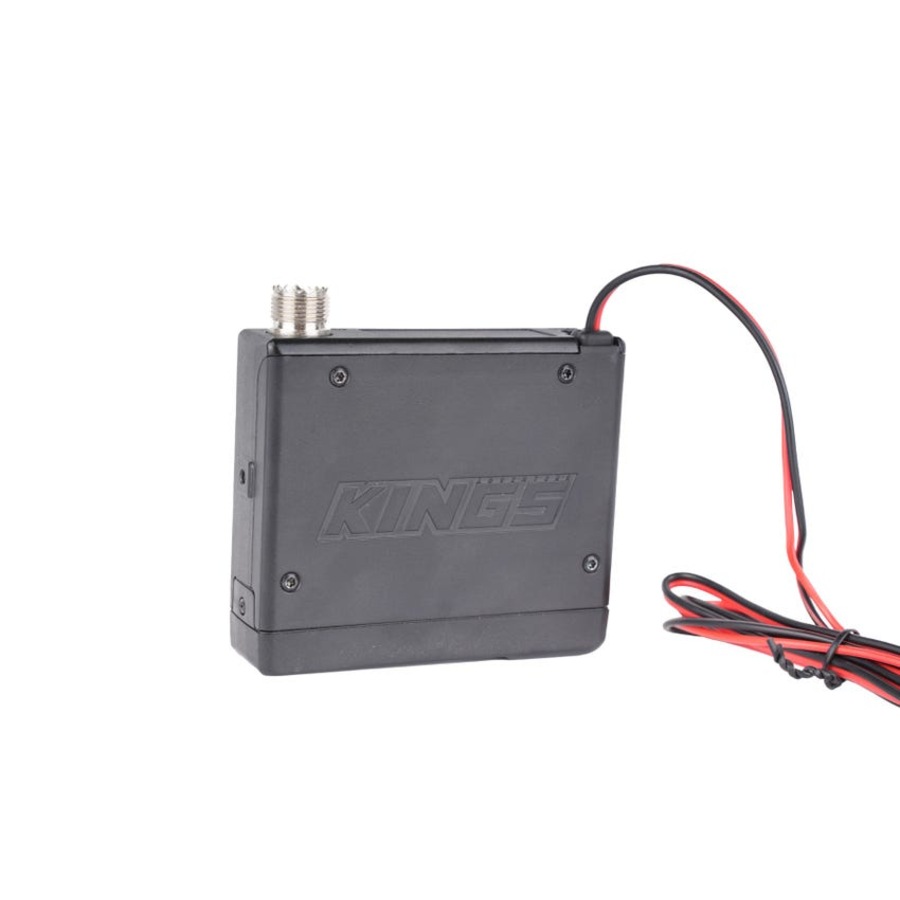

• The Radio transmitter measures 102x97x27mm (including antenna plug). The hand piece is a compact 127x57x32mmc(include plug) with a cable length of 550mm. The optional extension cable extends this cable by up to 2000mm.

UHF CB RADIO - 5W  SPECIFICATIONS



Transmission Range 476.425 - 477.4125 MHz
Channel Capacity 80 UHF CB channels (75 voice channels)
Channel Spacing 12.5 kHz
Operating Modes Simplex and Repeater (with +750 kHz offset)
Scan Rate 150ms milliseconds per channel
Antenna Impedance 50 Ohms
Voltage Range 10-29V DC
Over-Current Protection 5 Amp fuse
Polarity Protection Reverse polarity safeguard
Frequency Stability ±5 ppm

RECEIVER

Sensitivity -119dBm≥12dB SINAD
Audio Output Power 1Watts into an 16Ω
Audio De-emphasis +6 dB per octave from 300 Hz to 3 kHz
Spurious Response Rejection Greater than -57 dBm


TRANSMITTER

RF Output Power 5 Watts
Modulation Type FM (F3E)
Maximum Deviation ±2.5 kHz
Spurious Emissions Less than -30 dBm
Audio Pre-emphasis +6 dB per octave from 300 Hz to 3 kHz
Current Draw (Transmit) 1.7 Amps with a 50 Ohm antenna load
Warranty 2 Year

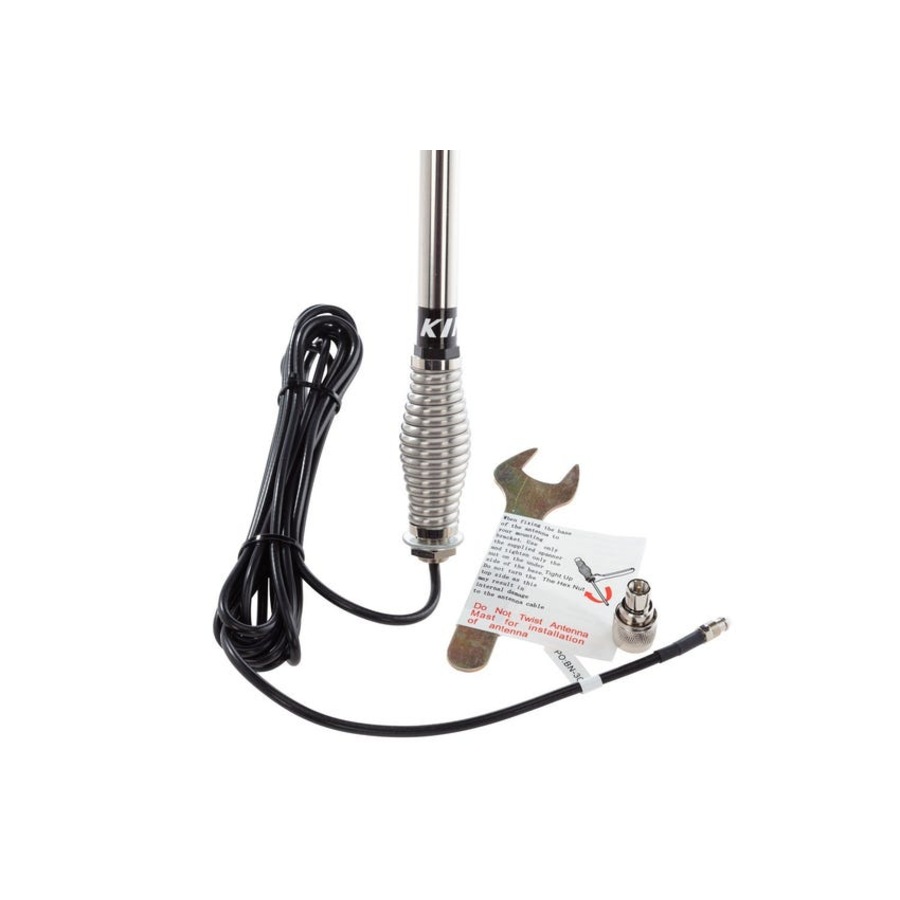

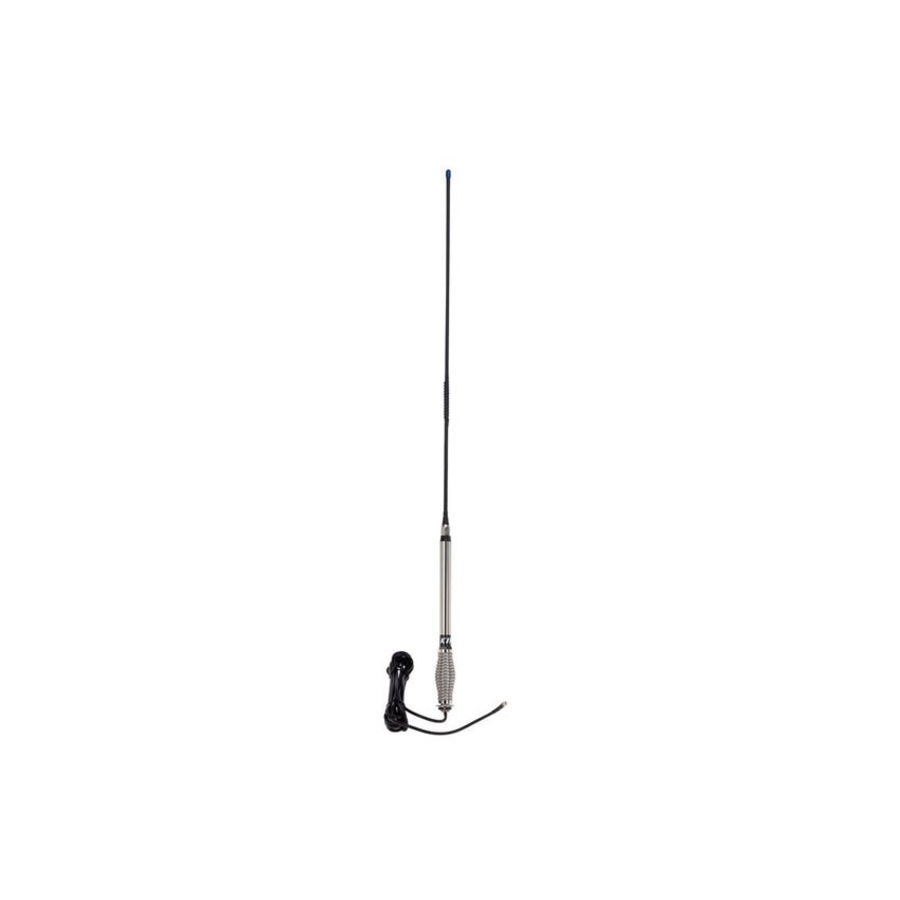

UHF AERIAL | SPRING BASE |  SOLID FIBREGLASS WHIP



6DBi Gain
Extra heavy-duty spring mount

Pairs perfectly with the Adventure Kings UHF CB Radio - 5W. Gives you the ultimate combination of spread and distance, perfect for when you're exploring in the great outdoors.

Antenna Type 6.0 dBi UHF CB Antenna
Antenna Material Upper : FRP rod support with tinned copper shielding
Bottom: Silver finish stainless steel
Spring Base Counter-balanced spring base to absorb vibration and reduce signal noise
Cable Type Low-loss coaxial cable
Connector Type Cable with FME.K connector
Adapter FME.J to SL16.J
Antenna Length 930mm (including spring and base)
Thread Size (Whip) M16
Mounting Options Compatible with bullbar, gutter, or wing mounts (bracket not included)
Warranty 1 Year
