Kings UHF CB Radio - 5W - Remote Display- 80 Channel UHF - Multi Channel Scan

The In-Cab UHF offers 80 channels and 5W of transmitting power, giving you the highest legal public access to radio channels available in Australia. The Adventure Kings In-Cab UHF is an essential part of any 4WD, and you can be rest assured knowing you're always within reach, whether it's a quick check-in with your convoy or an emergency call.

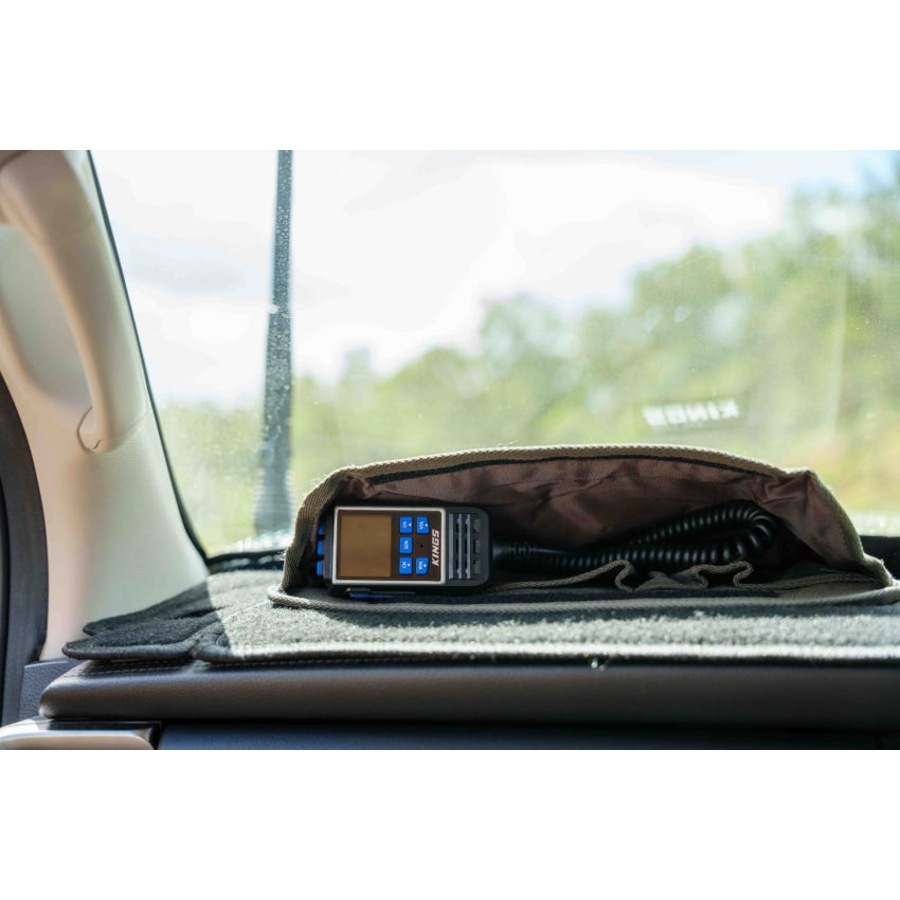

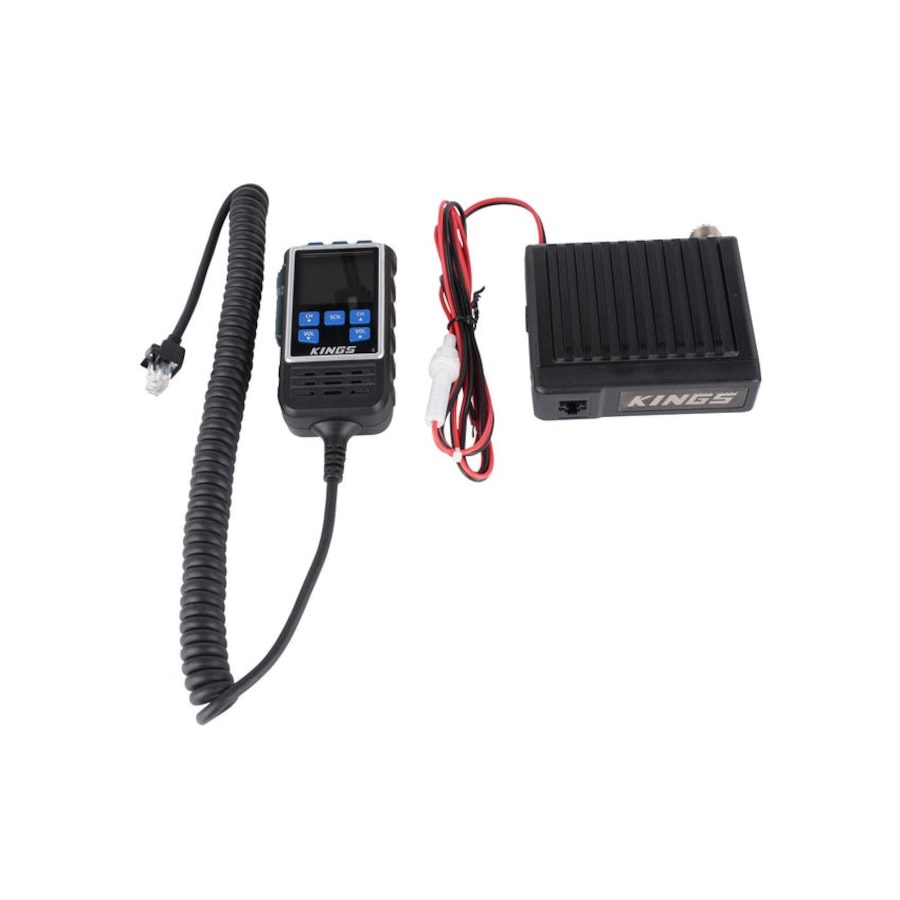

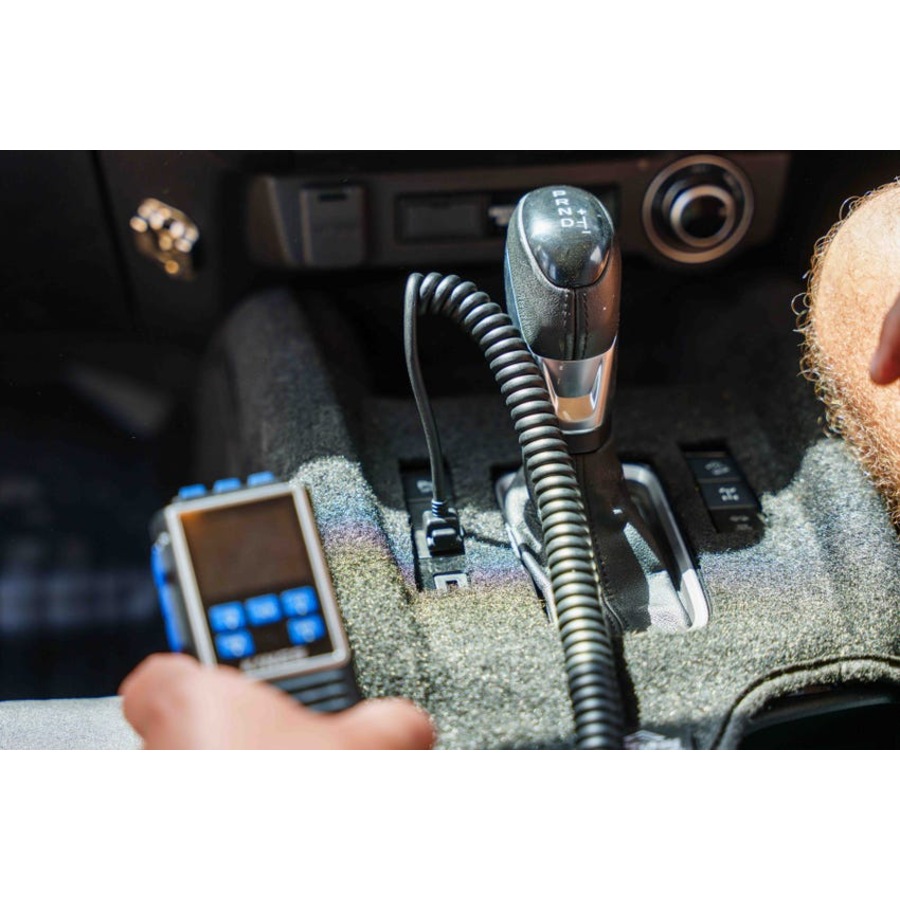

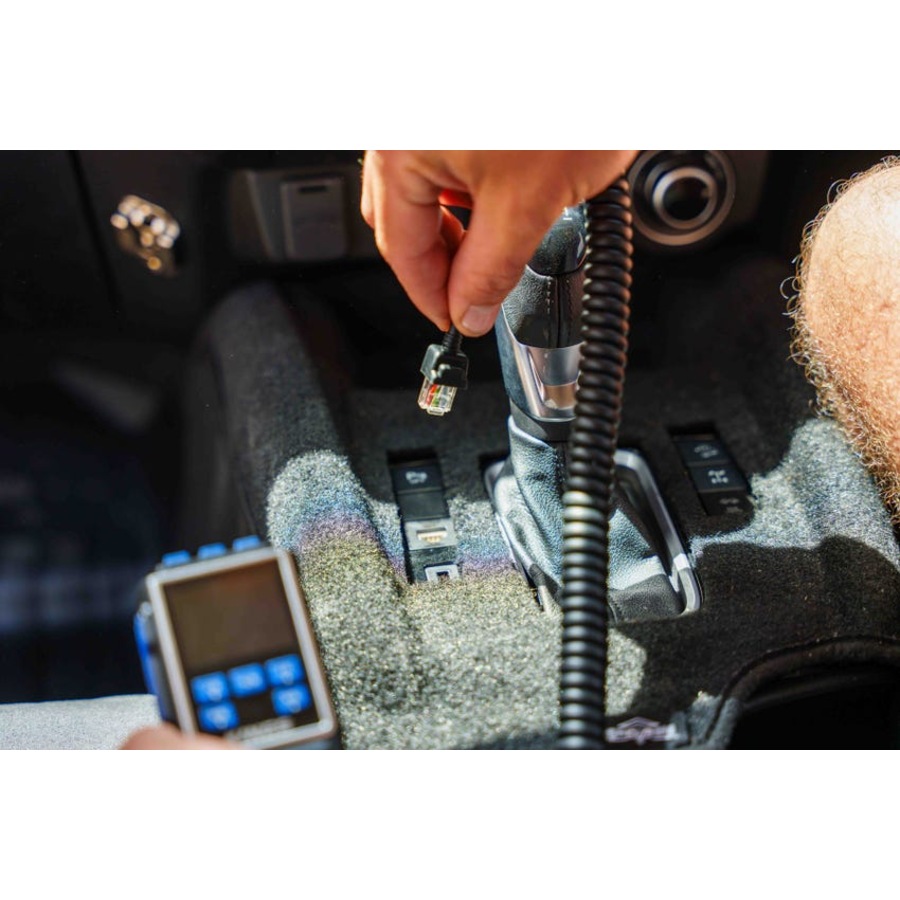

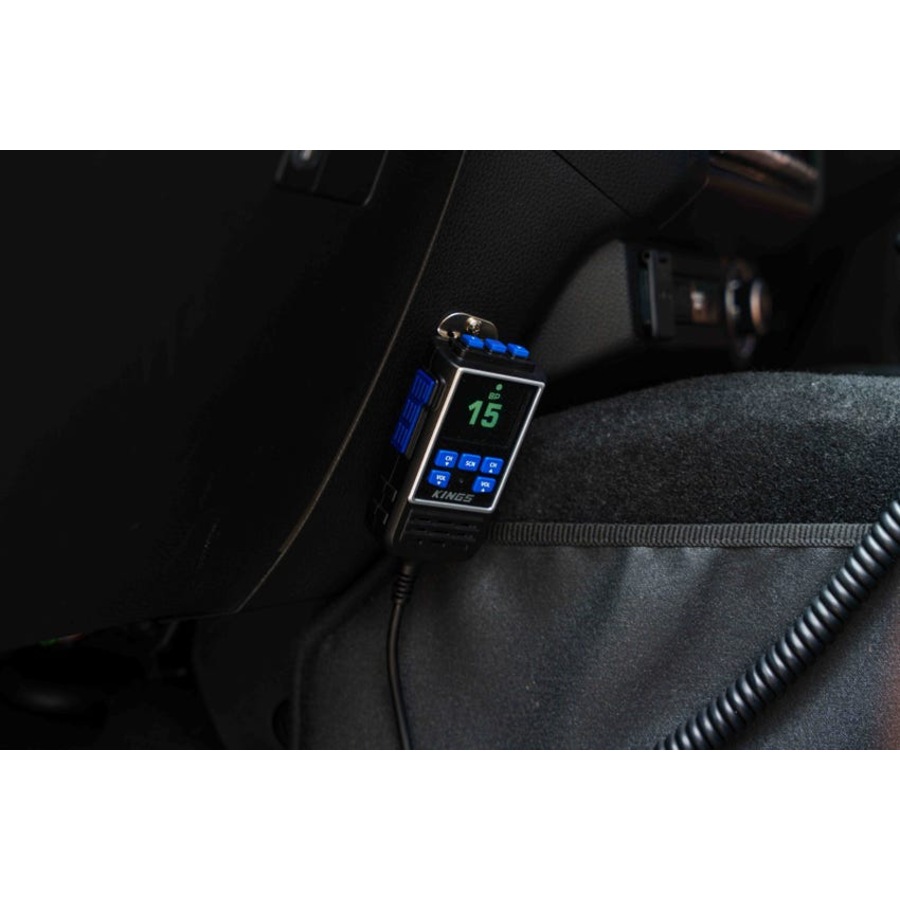

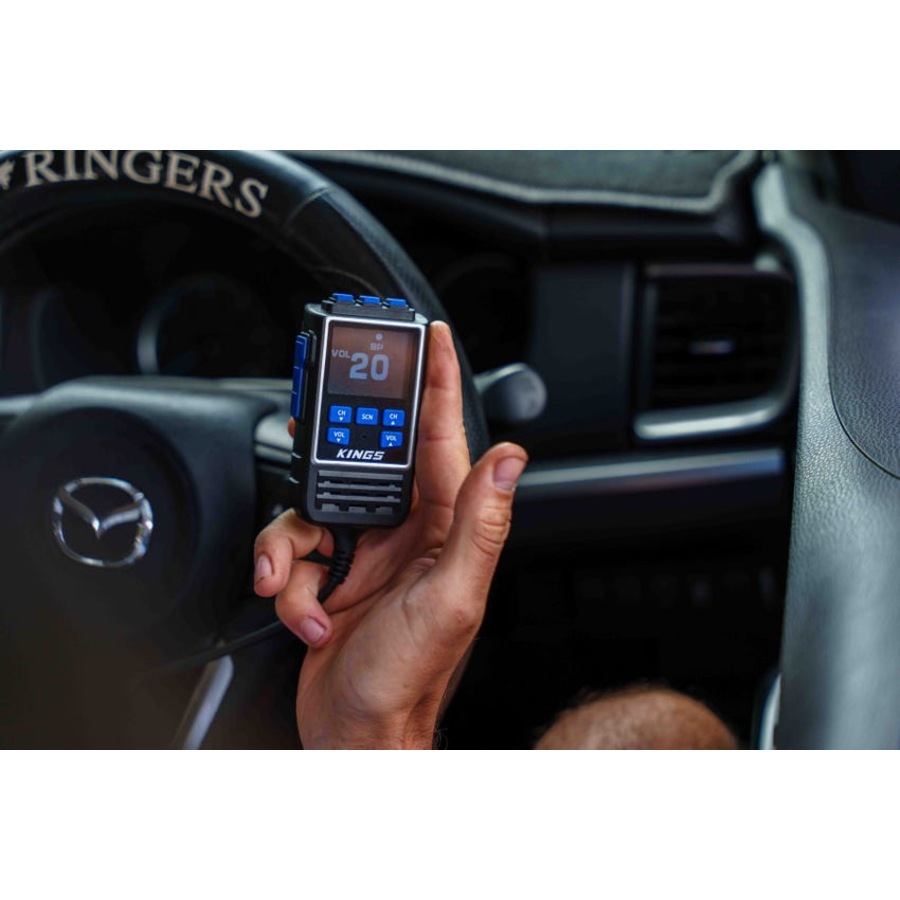

• The UHF Radio comes with all you need to wire it in and get the radio turned on. The included wiring has an inbuilt fuse and a handpiece extension cable, allowing you to mount the transceiver behind the dash and run a port to a switch blank on your vehicle's dash. The included hand-pieced mount allows you to set your radio up on the dash at an easy-to-reach location

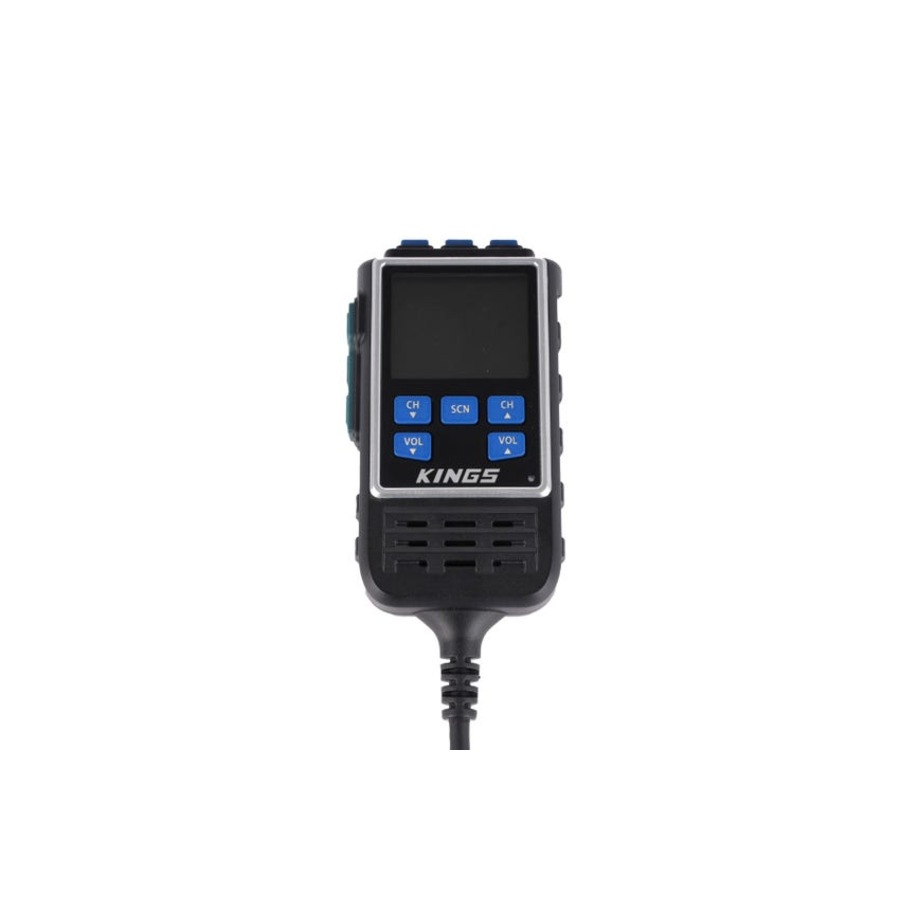

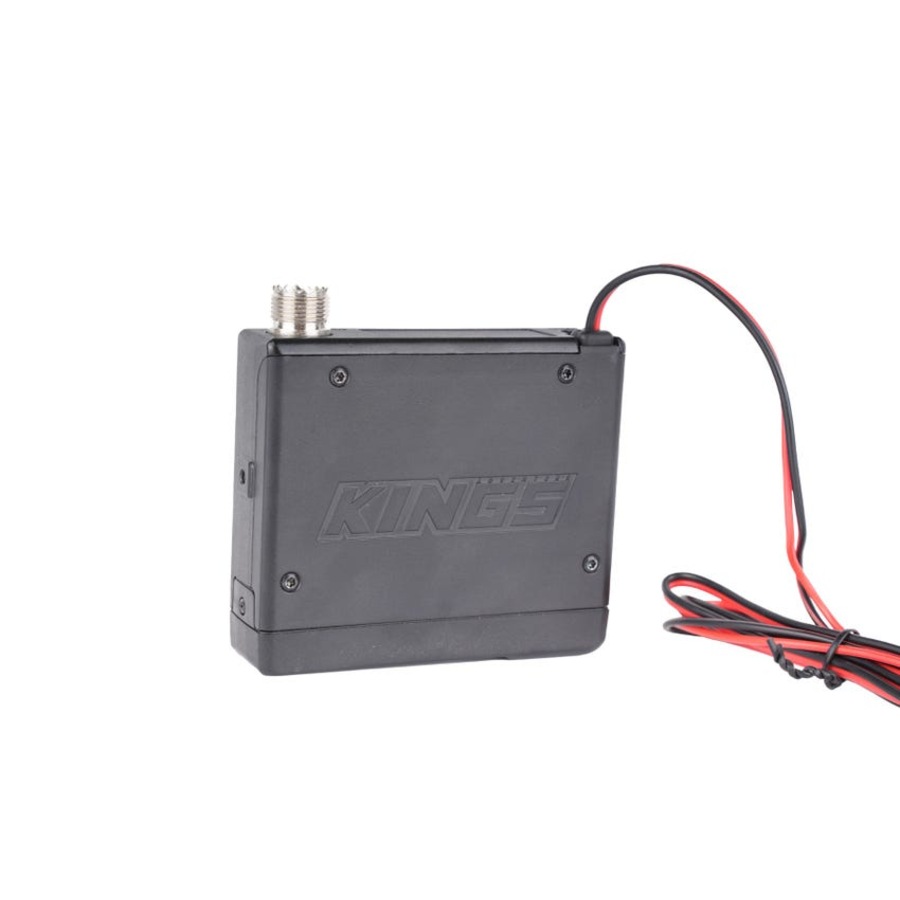

• The Radio transmitter measures 102x97x27mm (including antenna plug). The hand piece is a compact 127x57x32mmc(include plug) with a cable length of 550mm. The optional extension cable extends this cable by up to 2000mm.

KINGS UHF CB RADIO - 5W  SPECIFICATIONS



 In-Cab UHF offers 80 channels and 5W of transmitting power, giving you the highest legal public access to radio channels available in Australia. The Adventure Kings In-Cab UHF is an essential part of any 4WD, and you can be rest assured knowing you're always within reach, whether it's a quick check-in with your convoy or an emergency call.

Transmission Range 476.425 - 477.4125 MHz
Channel Capacity 80 UHF CB channels (75 voice channels)
Channel Spacing 12.5 kHz
Operating Modes Simplex and Repeater (with +750 kHz offset)
Scan Rate 150ms milliseconds per channel
Antenna Impedance 50 Ohms
Voltage Range 10-29V DC
Over-Voltage Protection Integrated diode and voltage regulation system
Over-Current Protection 5 Amp fuse
Polarity Protection Reverse polarity safeguard
Frequency Stability ±5 ppm

RECEIVER SPECIFICATIONS

Sensitivity -119dBm≥12dB SINAD
Audio Output Power 1Watts into an 16Ω
Audio De-emphasis +6 dB per octave from 300 Hz to 3 kHz
Spurious Response Rejection Greater than -57 dBm


TRANSMITTER SPECIFICATIONS

RF Output Power 5 Watts
Modulation Type FM (F3E)
Maximum Deviation ±2.5 kHz
Spurious Emissions Less than -30 dBm
Audio Pre-emphasis +6 dB per octave from 300 Hz to 3 kHz
Current Draw (Transmit) 1.7 Amps with a 50 Ohm antenna load
Warranty 2 Year
