MSI MPG B760I EDGE WIFI DDR5 Mini-ITX Intel Motherboard with Intel Wi-Fi 6E

MPG B760I EDGE WIFI

• Supports 13th /12th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1700 socket
• Supports DDR5 Memory, up to 7200+(OC) MHz
• Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2
• Enhanced Power Design: Direct 8+1+1 phases power, Core Boost, Memory Boost
• Premium Thermal Solution: Enlarged heatsink, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
• 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
• High Quality PCB: 8-layer PCB made by server grade level material
• Pre-installed I/O Shield: Better EMI protection and more convenience for installation

• CPU SUPPORT :Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
  LGA 1700
• Memory :2x DDR5, Maximum Memory Capacity 96GB
  Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
  Max. overclocking frequency:
  • 1DPC 1R Max speed up to 7200+ MHz
  • 1DPC 2R Max speed up to 6600+ MHz
  Supports Dual-Channel mode
  Supports non-ECC, un-buffered memory
  Supports Intel® Extreme Memory Profile (XMP)
• Onboard Graphics :1x HDMI™
  Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
  1x DisplayPort
  Support DP 1.4, maximum resolution of 8K 60Hz*
  *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

• EXPANSION SLOT :1x PCI-E x16 slot
  PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• Storage :2x M.2
  M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
  M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
  4x SATA 6G
• RAID :Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• USB :2x USB 2.0 (Rear)
  2x USB 2.0 (Front)
  4x USB 3.2 Gen1 Type A (Rear)
  2x USB 3.2 Gen1 Type A (Front)
  1x USB 3.2 Gen2 Type A (Rear)
  1x USB 3.2 Gen2 Type C (Rear)
  1x USB 3.2 Gen2 Type C (Front)
• LAN :Realtek® RTL8125BG 2.5Gbps LAN
• WIRELESS / BLUETOOTH :Intel® Wi-Fi 6E
  The Wireless module is pre-installed in the M.2 (Key-E) slot
  Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
  Supports 802.11 a/ b/ g/ n/ ac/ ax
  Supports Bluetooth® 5.3, FIPS, FISMA
  * Wi-Fi 6E 6GHz may depend on every country's regulations and will be ready in Windows 11.
  ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
• Audio :Realtek® ALC897 Codec
  7.1-Channel USB High Performance Audio
• Internal I/O :1x Power Connector(ATX_PWR)
  1x Power Connector(CPU_PWR)
  1x CPU Fan
  1x Pump Fan
  1x System Fan
  2x Front Panel (JFP)
  1x Chassis Intrusion (JCI)
  1x Front Audio (JAUD)
  1x Addressable V2 RGB LED connector (JARGB_V2)
  1x RGB LED connector(JRGB)
  1x TPM pin header(Support TPM 2.0)
  2x USB 2.0 ports
  2x USB 3.2 Gen1 Type A ports
  1x USB 3.2 Gen2 Type C ports
• LED FEATURE :4x EZ Debug LED

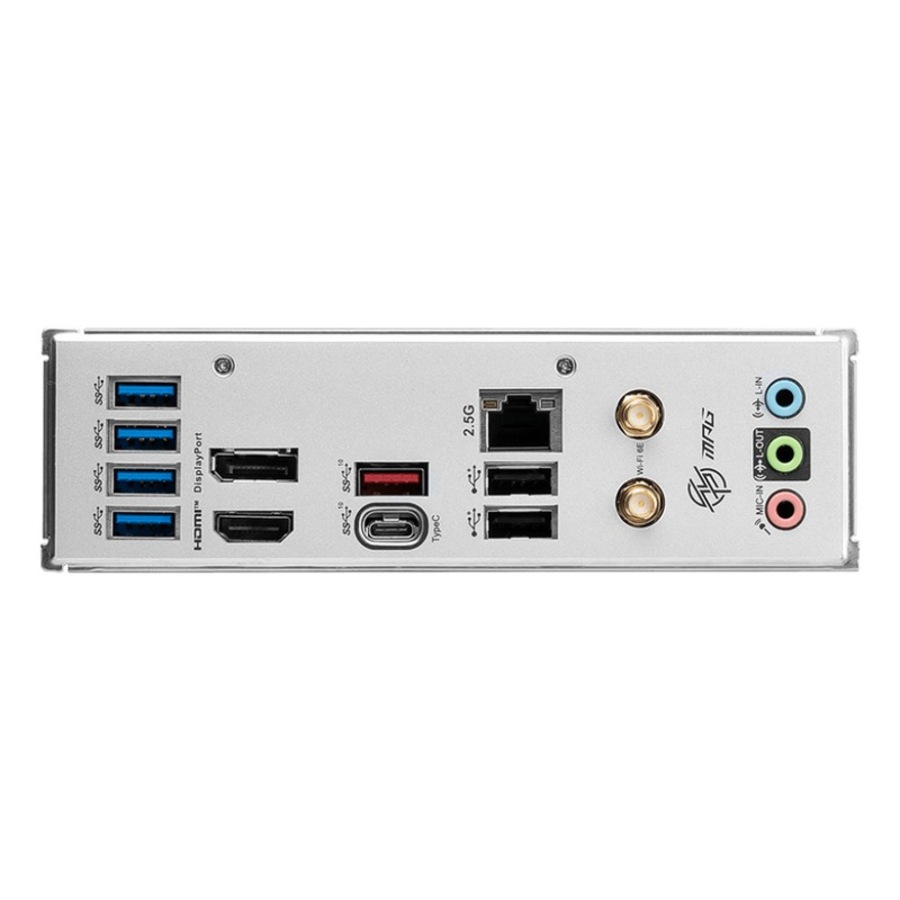

• BACK PANEL PORTS :
  1. USB 3.2 Gen 1 5Gbps
  2. Display Port
  3. USB 3.2 Gen 2 10Gbps
  4. 2.5G LAN
  5. Audio Connectors
  6. HDMI™
  7. USB 3.2 Gen 2 10Gbps (Type-C)
  8. USB 2.0
  9. Wi-Fi / Bluetooth
• OPERATING SYSTEM :Support for Windows® 11 64-bit, Windows® 10 64-bit
• PCB Dimension :Mini-ITX
  170mmx170mm
