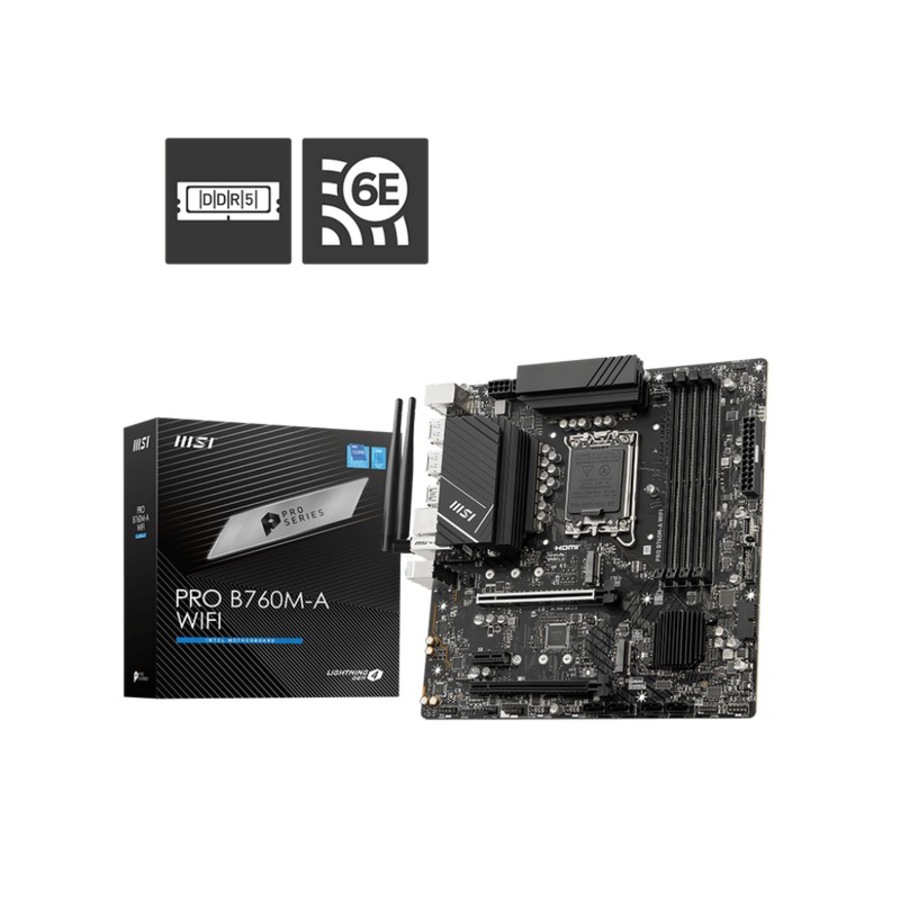

MSI PRO B760M A WIFI DDR5 LGA1700 Motherboard, PCIe 4.0, Wi-Fi 6E & BT5.3 [PRO B760M-A WIFI]

PRO B760M-A WIFI DDR5 LGA1700 Motherboard

PRO B760M-A WIFI

• Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
• Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
• Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
• Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK and additional choke thermal pads are built for high performance system and non-stop gaming experience
• High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
• Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
• Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
• 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

• CPU SUPPORT :Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
  LGA 1700
• Memory :4x DDR5, Maximum Memory Capacity 192GB
  Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
  Max. overclocking frequency:
  • 1DPC 1R Max speed up to 6800+ MHz
  • 1DPC 2R Max speed up to 6400+ MHz
  • 2DPC 1R Max speed up to 6000+ MHz
  • 2DPC 2R Max speed up to 5600+ MHz
  Supports Intel® XMP 3.0 OC
  Supports Dual-Controller Dual-Channel mode
  Supports non-ECC, un-buffered memory
• Onboard Graphics :2x HDMI™
  Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
  2x DisplayPort
  Support DP 1.4, maximum resolution of 4K 60Hz*
  *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• EXPANSION SLOT :2x PCI-E x16 slot
  1x PCI-E x1 slot
  PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
• Storage :2x M.2
  M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
  M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  4x SATA 6G
  * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
• RAID :Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• USB :2x USB 2.0 (Rear)
  4x USB 2.0 (Front)
  2x USB 3.2 Gen1 Type A (Rear)
  4x USB 3.2 Gen1 Type A (Front)
  1x USB 3.2 Gen1 Type C (Front)
  2x USB 3.2 Gen2 Type A (Rear)
• LAN :Realtek® RTL8125BG 2.5G LAN
• WIRELESS / BLUETOOTH :Intel® Wi-Fi 6E
  The Wireless module is pre-installed in the M.2 (Key-E) slot
  Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
  Supports 802.11 a/ b/ g/ n/ ac/ ax
  Supports Bluetooth® 5.3, FIPS, FISMA
  * Wi-Fi 6E 6GHz may depend on every country's regulations and will be ready in Windows 11.
  ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
• Audio :Realtek® ALC897 Codec
  7.1-Channel High Definition Audio
• Internal I/O :1x Power Connector(ATX_PWR)
  2x Power Connector(CPU_PWR)
  1x CPU Fan
  1x Pump Fan
  2x System Fan
  2x Front Panel (JFP)
  1x Chassis Intrusion (JCI)
  1x Front Audio (JAUD)
  1x Com Port (JCOM)
  2x Addressable V2 RGB LED connector (JARGB_V2)
  1x RGB LED connector(JRGB)
  1x TPM pin header(Support TPM 2.0)
  4x USB 2.0 ports
  4x USB 3.2 Gen1 Type A ports
  1x USB 3.2 Gen1 Type C ports
• LED FEATURE :4x EZ Debug LED
• BACK PANEL PORTS :
  1. Keyboard / Mouse
  2. DisplayPort
  3. USB 3.2 Gen 1 5Gbps (Type-A)
  4. 2.5G LAN
  5. Wi-Fi / Bluetooth
  6. Audio Connectors
  7. USB 2.0
  8. HDMI™
  9. USB 3.2 Gen 2 10Gbps (Type-A)
• OPERATING SYSTEM :Support for Windows® 11 64-bit, Windows® 10 64-bit
• PCB Dimension :mATX
  243.84mmx243.84mm
• BOX CONTENT
