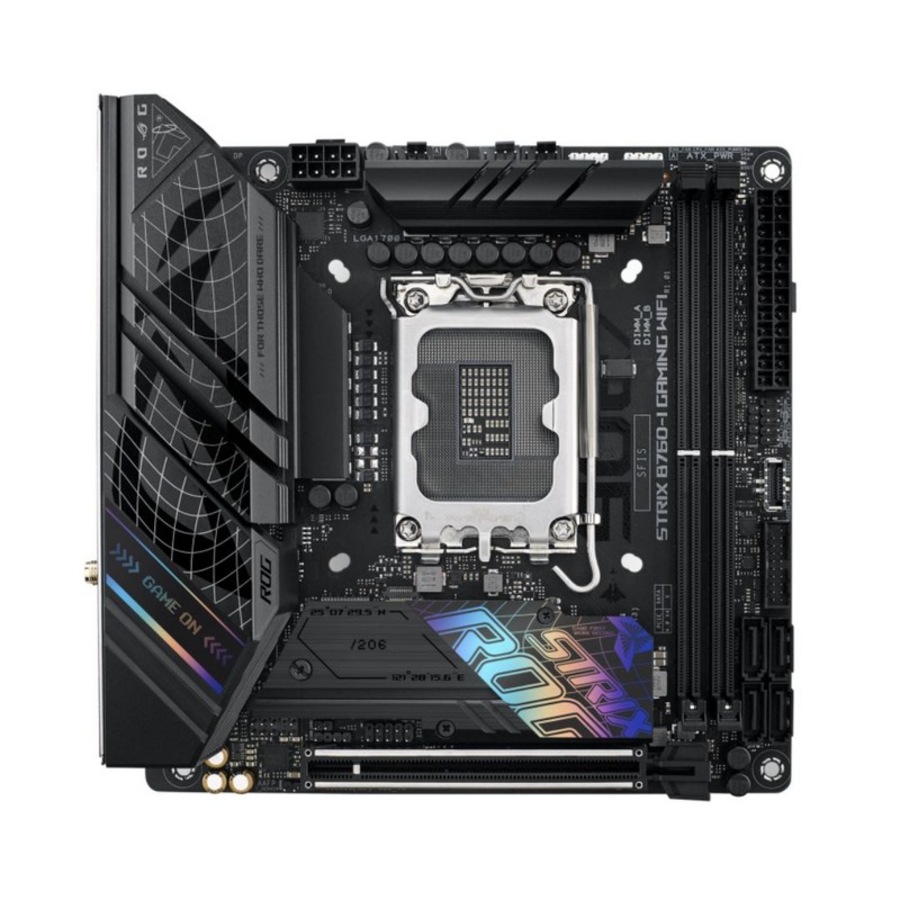

[ROG STRIX B760-I GAMING WIFI] Asus LGA1700 Mini-ITX Motherboard DDR5 Wi-Fi 6E

ASUS ROG STRIX B760-I GAMING WIFI Intel LGA1700 Mini-ITX Motherboard 64GB,2xDDR5,1xPCIe 5.0 x16, 2xM.2,4 xSATA,2.5Gb Ethernet,Wi-Fi 6E

Let your rig run wild with the ROG Strix B760-I, a feisty foundation for your next SFF build. Boasting hyperfast DDR5 memory, low-latency WiFi 6E networking, and a future-ready PCIe 5.0 slot, it sets you up for savage speeds, all while giving you incredible 13th Gen support thanks to its powerful VRM and thermal solution.

• GEN 5 SUPPORT
• USB 3.2 GEN 2X2
• ROBUST POWER SOLUTION
• 7600+ MT/s, AEMP II, XMP
• WiFi 6E
• DIY-FRIENDLY DESIGN
• M.2 Q-LATCH
• Q-LED
• PRE-MOUNTED I/O SHIELD
• POWER ARCHITECTURE

• CPU :Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
  Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  * Refer to Asus official site for CPU support list.
  ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset :Intel® B760 Chipset
• Memory :2 x DIMM, Max. 96GB, DDR5 7600(OC)/ 7466(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600
  (OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  OptiMem II
  * Supported memory types, data rate(Speed), and number of DRAM module vary depen
  ding on the CPU and memory configuration, for more information refer to Asus official site for memory support list.* Refer to Asus official site for the Memory QVL (Qualified Vendors Lists).
• Graphics :
  1 x DisplayPort**
  1 x HDMI®***
  * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  ** Support 4K@60Hz as specified in DisplayPort 1.4
  *** Support 4K@60Hz as specified in HDMI 2.1.
• Expansion Slots :Intel® 13th & 12th Gen Processors*
  1 x PCIe 5.0 x16 slot
  - To ensure compatibility of the device installed, please refer to https:// Asus official site/support/ for the list of supported peripherals.
• Storage :Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
  Intel® 13th & 12th Gen Processors
  M.2_1 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
  Intel® B760 Chipset**
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports
  * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
• Ethernet :1 x Intel® 2.5Gb Ethernet
  ASUS LANGuard
• Wireless & Bluetooth :Wi-Fi 6E
  2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5/6GHz frequency band*
  Bluetooth® v5.3
  * WiFi 6E 6GHz regulatory may vary between countries.
• USB :Rear USB (Total 8 ports)
  1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C®)
  3 x USB 2.0 ports (3 x Type-A)
  Front USB (Total 5 ports)
  1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  1 x USB 2.0 header supports additional 2 USB 2.0 ports
• Audio :ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
  - Impedance sense for front and rear headphone outputs
  - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
  - Supports up to 32-Bit/192 kHz playback*
  Audio Features
  - SupremeFX Shielding Technology
  - Savitech SV3H712 AMP
  - Premium audio capacitors
  * Due to limitations in HAD bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
• Back Panel I/O Ports :
  1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C®)
  3 x USB 2.0 ports (3 x Type-A)
  1 x HDMI® port
  1 x DisplayPort
  1 x Wi-Fi Module
  1 x Intel® 2.5Gb Ethernet
  5 x Audio jacks
• Internal I/O Connectors :Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin Chasis Fan header
  1 x 4-pin AIO Pump header
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  Storage related
  2 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  1 x USB 2.0 headers support additional 2 USB 2.0 ports
  Miscellaneous
  1 x Addressable Gen 2 headers
  1 x Aura RGB header
  1 x Clear CMOS header
  1 x Front Panel Audio header (AAFP)
  1 x S/PDIF Out header
  1 x Speaker header
  1 x 10-1 pin System Panel header
  1 x Thermal Sensor header
• Special Features :Extreme Engine Digi+
  - 5K Black Metallic Capacitors
  ASUS Q-Design
  - M.2 Q-Latch
  - Q-DIMM
  - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  - Q-Slot
  ASUS Thermal Solution
  - M.2 heatsink backplate
  ASUS EZ DIY
  -CPU Socket lever protector
  - ProCool
  - Pre-mounted I/O shield
  - SafeSlot
  - SafeDIMM
  AURA Sync
  - Aura RGB header
  - Addressable Gen 2 header

• Software Features :ROG Exclusive Software
  - GameFirst VI
  - ROG CPU-Z
  - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
  - Sonic Radar III
  - DTS® Sound Unbound
  ASUS Exclusive Software
  Armoury Crate
  - AIDA64 Extreme (60 days free trial)
  - AURA Creator
  - AURA Sync
  - Fan Xpert 4
  - Two-Way AI Noise Cancelation
  - Power Saving
  AI Suite 3
  - Performance And Power Saving Utility
  PC Cleaner
  DIGI+ VRM
  MyAsus
  Norton 360 for Gamers
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
  MemTest86
• BIOS :128 Mb Flash ROM, UEFI AMI BIOS
• Manageability :WOL by PME, PXE
• Accessories :Cables
  2 x SATA 6Gb/s cables
  1 x ROG USB2.0 splitter cable
  1 x Panel cable
  Additional Cooling Kit
  1 x Thermal pad for M.2
  Miscellaneous
  1 x ASUS Wi-Fi moving antennas
  1 x Cable ties package
  1 x M.2 Rubber Package
  2 x Screw packages for M.2 SSD
  1 x M.2 bracket
  1 x ROG key chain
  1 x ROG STRIX stickers
  1 x ROG STRIX thank you card
  Documentation
  1 x User manual
• Operating System :Windows® 11 64-bit, Windows® 10 64-bit
• Form Factor :
  Mini-ITX Form Factor
  6.7 inch x 6.7 inch ( 17 cm x 17 cm )
