Star Tech HD Dual Monitor USB 3.0 Laptop Docking Station w/ HDMI & DVI/VGA RJ45

Star Tech Dual-Monitor USB 3.0 Docking Station with HDMI & DVI/VGA Laptop Docking Station

This USB 3.0 dock combines three USB 3.0 ports, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port, into a single docking station for maximum productivity.

Display Adaptability

Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI, DVI and VGA external monitor outputs. Each video output supports HD video resolutions (2048x1152 max) and HD video playback for an ideal solution to expanding your notebook's video capability.

Available display combinations:

• HDMI + VGA
• HDMI + DVI

Integrated USB Hub

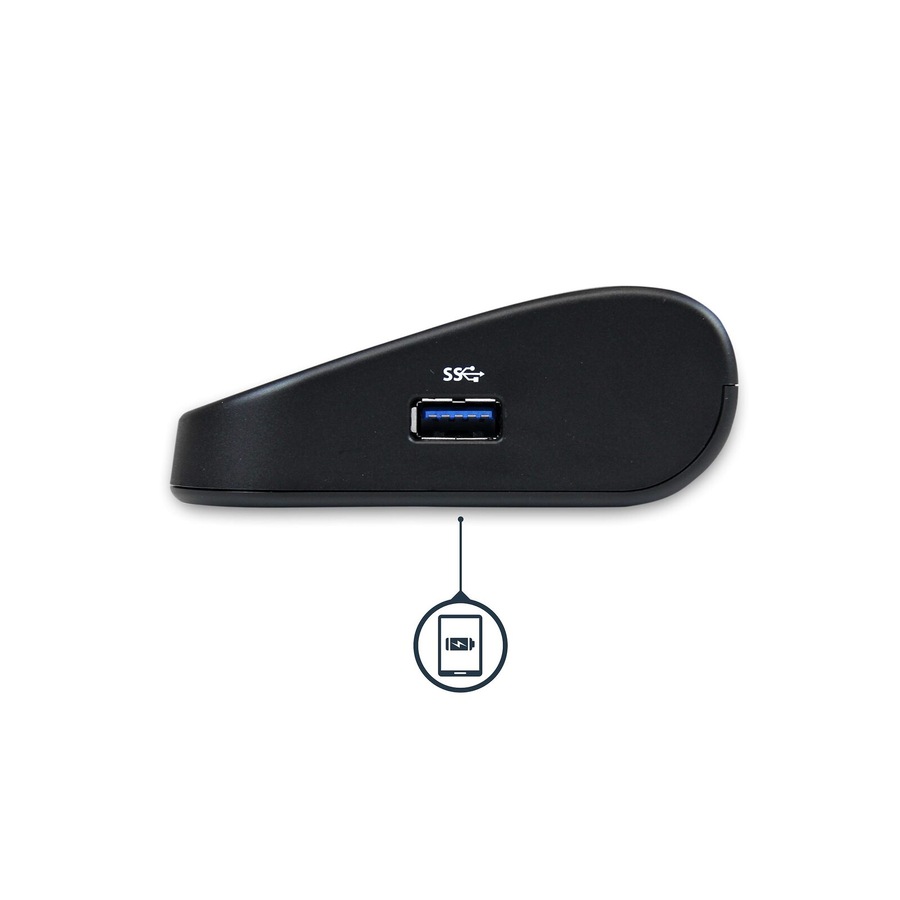

The built-in USB hub features three USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse, as if they are connected directly to your laptop.

Direct Ethernet Connectivity

The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a wired network.

StarTech laptop docking stations can be used for cost savings and faster deployment with just a single cable.

Hardware
Industry Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 3.0

Packaging Information
Package Height: 66 mm [2.6 in]
Package Length: 29.6 cm [11.7 in]
Package Width: 19.5 cm [7.7 in]
Shipping (Package) Weight: 878 g [31 oz]

Performance
Audio Specifications: The HDMI port supports audio output
Auto MDIX: Yes
Compatible Networks: 10/100/1000 Mbps
Full Duplex Support: Yes
Maximum Analog Resolutions: 2048x1152 (VGA)
Maximum Data Transfer Rate: 5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions: 1920x1200 (DVI-D)
1920x1080 (HDMI)
Lower resolutions are also supported.
Type and Rate: USB 3.0 - 5 Gbit/s

Physical Characteristics
Cable Length: 0.9 m [3 ft]
Color: Black
Material: Plastic
Product Height: 4.4 cm [1.7 in]
Product Length: 30.4 cm [12 in]
Product Width: 17.8 cm [7 in]
Weight of Product: 295 g [10.4 oz]

Power
Center Tip Polarity: Positive
Input Current: 0.9 A
Input Voltage: 100 - 240 AC
Output Current: 4 A
Output Voltage: 5 DC
Plug Type: B
Power Consumption (In Watts): 20
Power Source: AC Adapter Included

Prominence
Description CDW 75 - 1st Line: StarTech.com Dual Monitor USB 3.0 Docking Station - HDMI & DVI/VGA - TAA

Software
OS Compatibility: Windows® XP SP3 (32-bit), Vista, 7, 8, 8.1, 10
macOS 10.6 - 10.12, 10.14 - 10.15, 11.0

Special Notes / Requirements
System and Cable Requirements: Available AC electrical outlet : HDMI (and either DVI-D or VGA if dual display is desired) enabled display device(s) e.g. monitor, projector, HTDV, etc. with cables : USB 3.0 enabled computer system with available USB 3.0 port

Hardware
Fast-Charge Port(s): No
Displays Supported: 2
Chipset ID: DisplayLink - DL-3900
Genesys Logic - GL3520
Realtek - RTL8211E
Bus Type: USB 3.0
4K Support: No

Environmental
Storage Temperature: -10°C to 60°C (14°F to 140°F)
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 0~90% RH

Connector(s)

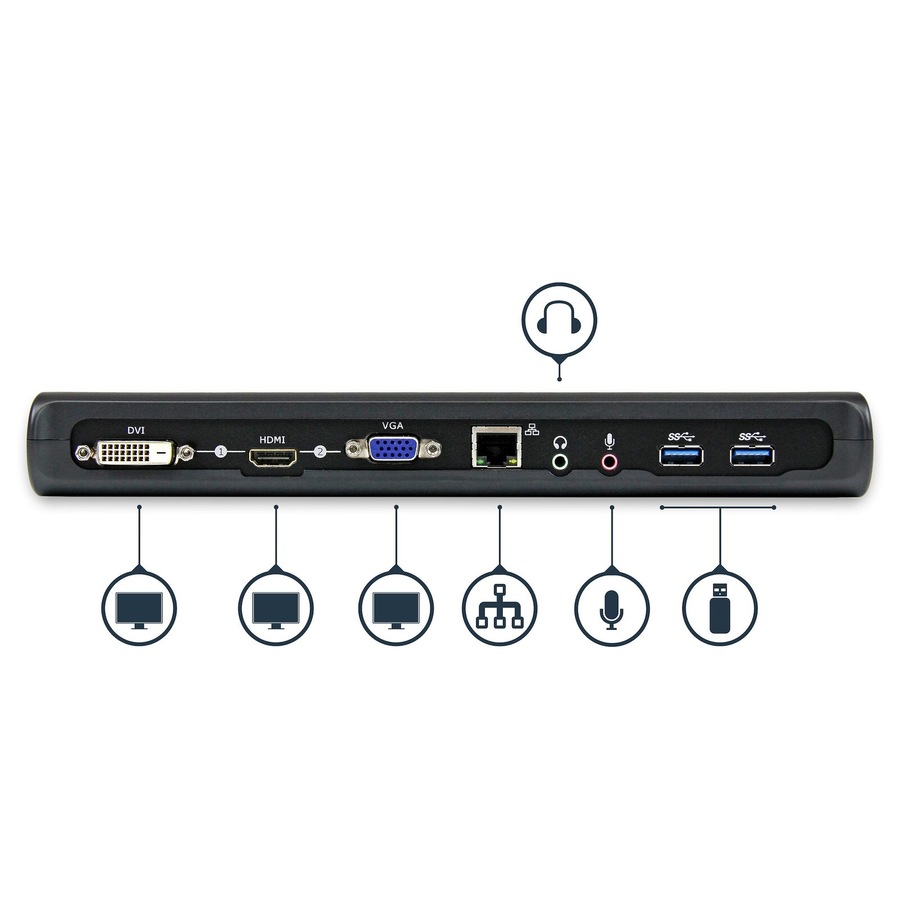

Connector Type(s): VGA (15 pin, High Density D-Sub) Female : USB Type-B (9 pin) USB 3.0 Female : USB Type-A (9 pin) USB 3.0 (5 Gbps) Female : RJ-45 Female : HDMI (19 pin) Female : DVI-D (25 pin) Female : 3.5 mm Mini-Jack (3 Position) Female

What's in the Box
Included in Package: 0.9m USB 3.0 Cable : Docking Station : Installation CD : Instruction Manual : Universal Power Adapter (NA/EU/UK/AU)

This item comes with a 3 Years warranty
