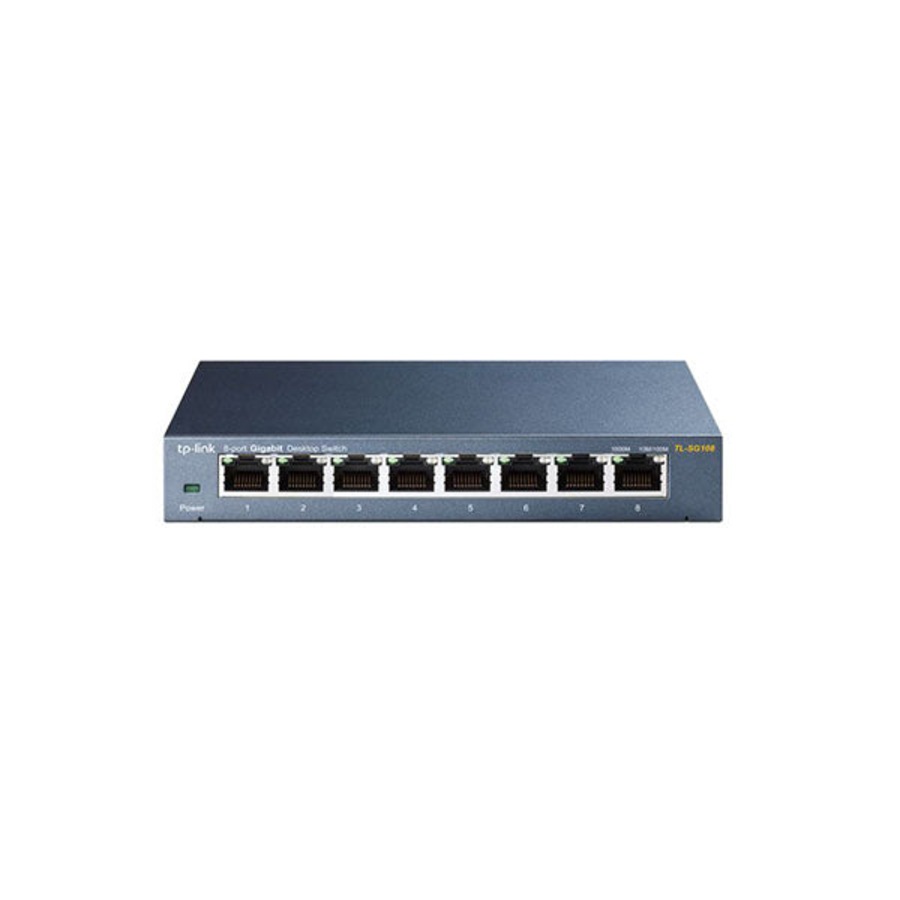

Tp Link 8 Port Gigabit Ethernet Desktop Switch

TP LINK 8 PORT GIGABIT ETHERNET DESKTOP SWITCH

The TP-Link 8-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG108 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG108 can save power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch

Featured with 8 10/100/1000Mbps ports, TL-SG108 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG108 8-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Traffic Optimization

802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.

Easy To Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, the fanless design ensures quiet operation.

FEATURES

8 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX

Green Ethernet technology saves the power up to 82%

IEEE 902..3x flow control provides reliable data transfer

Support 802.1p/DSCP QoS and IGMP snooping function

Steel housing, desktop or wall-mounting design

SPECIFICATIONS

Form Factor: Desktop

PoE: No PoE

SFP: No SFP

Number of Ports: 8-12

Predominant Port Type: Gigabit Copper

Standards and Protocols: IEEE 802.3i / 802.3u / 802.3ab/ 802.3x /802.1p

Interface: 8 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity: Fanless

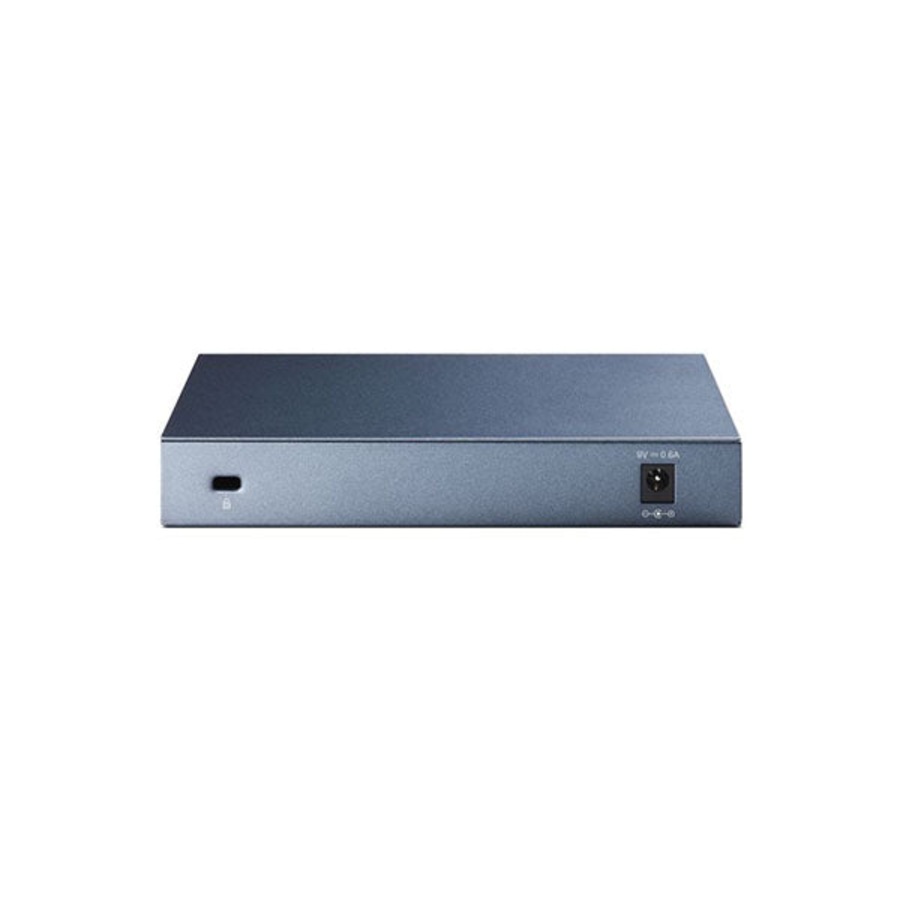

External Power Supply: External Power Adapter (Output: 9VDC / 0.6A)

Buffer Size: 1.5Mb

LED Indicator: System Power Link, Speed and activity indicators per port built into each RJ-45 port

Dimensions ( W x D x H ): 6.2 x 4.0 x 1.0 in. (158 x 101 x 25 mm)

Max Power Consumption: 3.31W(220V/50Hz)

Max Heat Dissipation: 11.29BTU/h

Performance

Packet Forwarding Rate: 11.9Mpps

MAC Address Table: 4K

Packet Buffer Memory: 1.5Mb

Jumbo Frame: 16KB

Software Features

Advanced Features: Green Technology, saving power up to 82%, 802.3X Flow Control, 802.1p/DSCP QoS, IGMP Snooping

Transfer Method: Store and Forward

Others

Certification: CE, FCC ,RoHS

Environment Operating Temperature: 0oC~40oC (32oF~104oF)

Storage Temperature: -40oC~70oC (-40oF~158oF)

Operating Humidity: 10% ~ 90%, non-condensing

Storage Humidity: 5%~90% non-condensing

PACKAGE CONTENTS

1 x Tp Link 8 Port Gigabit Ethernet Desktop Switch

1 x Power Adapter

1 x Installation Guide
