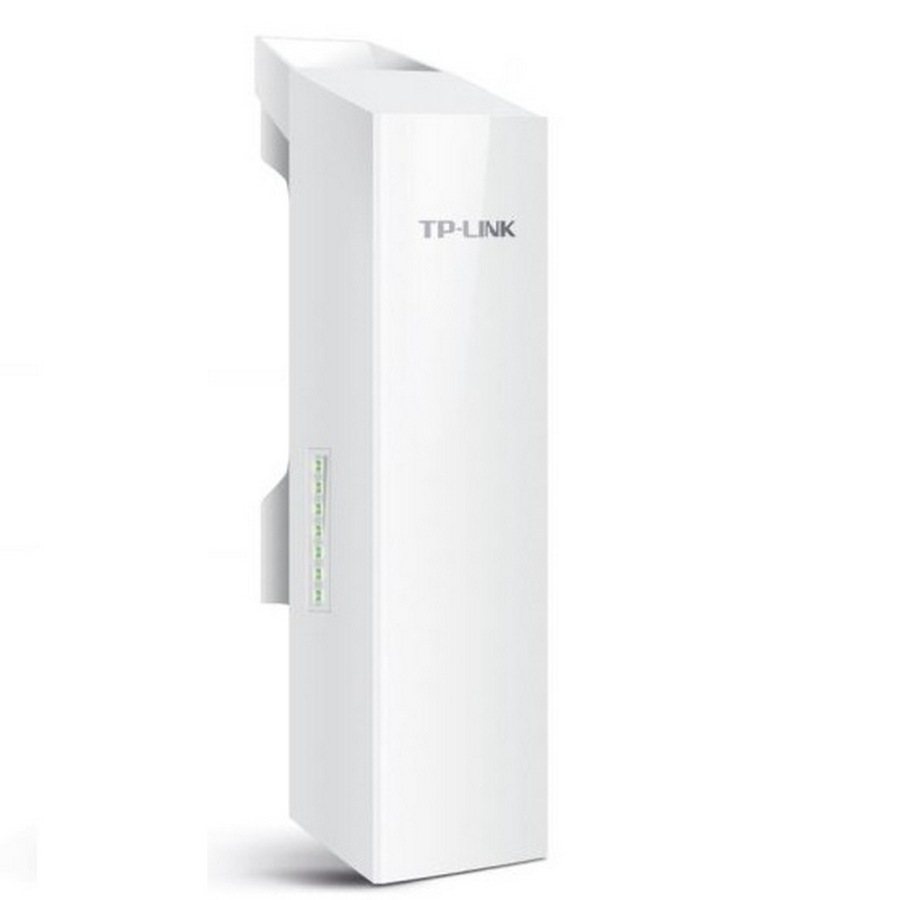

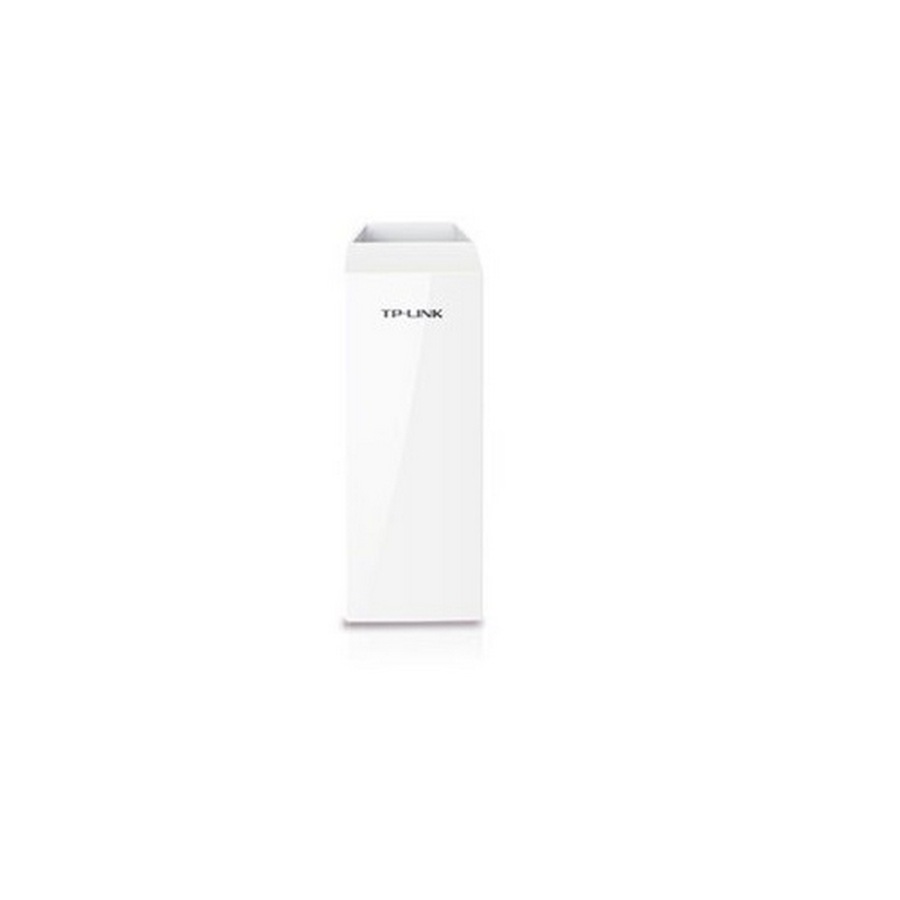

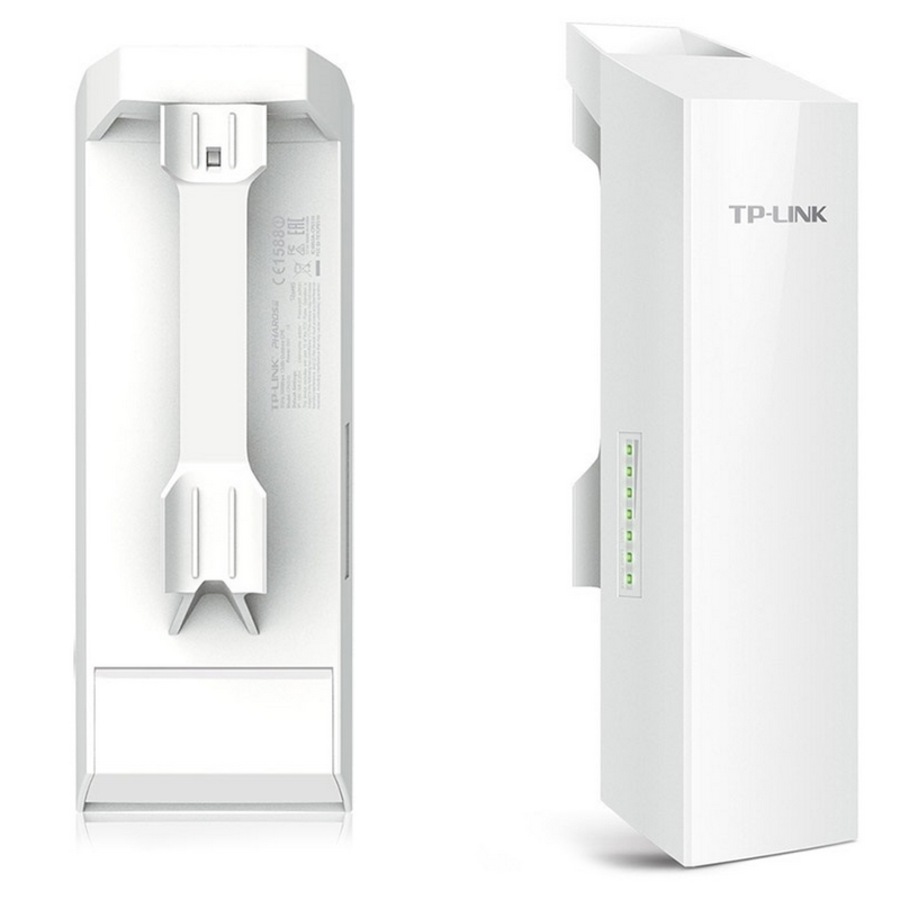

TP-Link CPE510 5Ghz 300Mbps 13dBi Outdoor CPE Wireless Access Point AP Repeater
110 pts
Collect a minimum of 1x base points- Shipping fee calculated at checkout
- ETA 28 Apr 2026 - 04 May 2026Estimated time of arrival Tuesday 28 Apr 2026 to Monday 04 May 2026
- Sold and shipped by Australia Tech Gears
TP-Link CPE510 5GHz 300Mbps 13dBi Outdoor CPE
- Built-in 13dBi 2x2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 26dBm/200mw
- System-level optimisations for more than 15km long-range wireless transmission
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
- Centralised Management System - Pharos Control
- AP / Client / AP Router / AP Client Router (WISP) operation modes
- Passive PoE Adapter supports up to 60 metres Power over Ethernet deployment and allows the device to be reset remotely
HARDWARE FEATURES
- Processor :Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc
- Memory :64MB DDR2 RAM, 8MB Flash
- Interface :1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 Grounding Terminal
1 Reset Button - Power Supply :Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC - Power Consumption :9.8 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. - Dimensions ( W x D x H ) :224 x 79 x 60 mm
- Antenna Type :Built-in 13dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 45° (H-Plane) / 45° (E-Plane)
Note: For more details, please refer to datasheet - Protection :15KV ESD Protection
6KV Lightning Protection - Enclosure :Outdoor ASA stabilized plastic material
IPX5 waterproof Certification
WIRELESS FEATURES
- Wireless Standards :IEEE 802.11a/n (with Pharos MAXtream disabled)
- Proprietary Protocol :TDMA Mode (with Pharos MAXtream enabled)
- Wireless Speeds :Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic) - Frequency :5.15~5.85GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. - Transmission Power :26dBm/398mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.
SOFTWARE FEATURES
- Wireless Configurations :Pharos MAXtream TDMA Technology
802.11a/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia - Management :Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server - System Tools :Wireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute - System-level Optimizations :Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog
POE ADAPTER FEATURES
- Dimensions(W x D x H) :85.8x43.9x29.7 mm
- Interfaces :1 AC Jack with Earth Ground
1 10/100Mbps Shielded Ethernet Port (Power + Data)
1 10/100Mbps Shielded Ethernet Port (Data) - Button :Remote Reset Button
- Power Status LEDs :Green
- Input :100-240VAC, 50/60Hz
- Output :24VDC, 0.5A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) - Efficiency :>80%
- Certifications :CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
OTHERS
- Certification :CE, FCC, RoHS, IPX5
- Package Contents :Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide - System Requirements :Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. - Environment :Operating Temperature: -40?~70? (-40?~158?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
