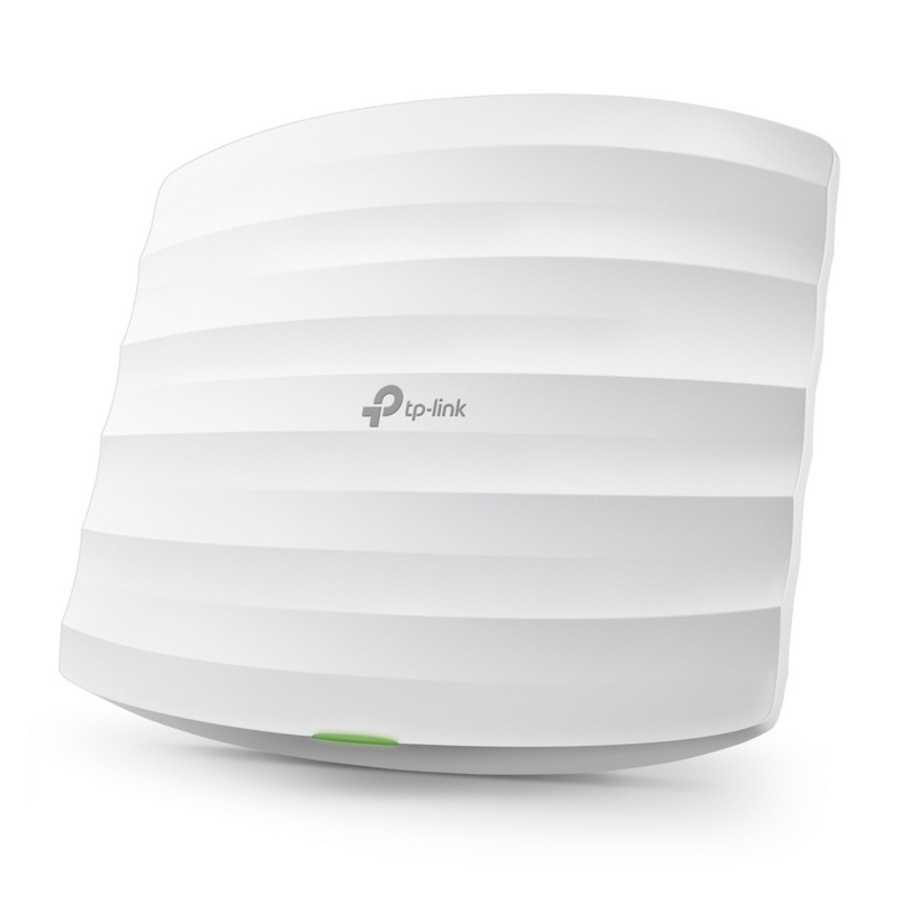

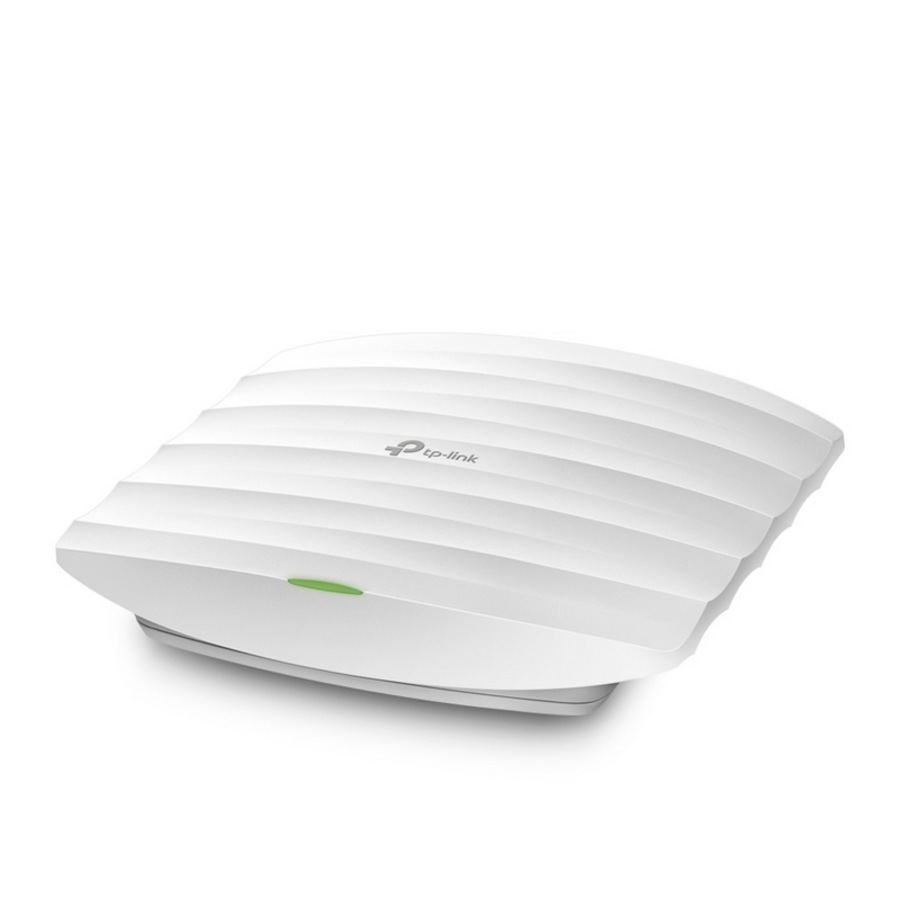

TP-Link EAP223 Omada AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

TP-Link EAP223, AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

• Fast Dual-Band Wi-Fi:Simultaneous 450 Mbps on 2.4 GHzand 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds.
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
• Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
• Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.*
• PoESupport: Support bothstandard 802.3af/at and Passive PoE (PoE adapter is not included)for flexible installations.
• Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
• Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.
• Learn more about Omada Cloud SDN>

HARDWARE FEATURES

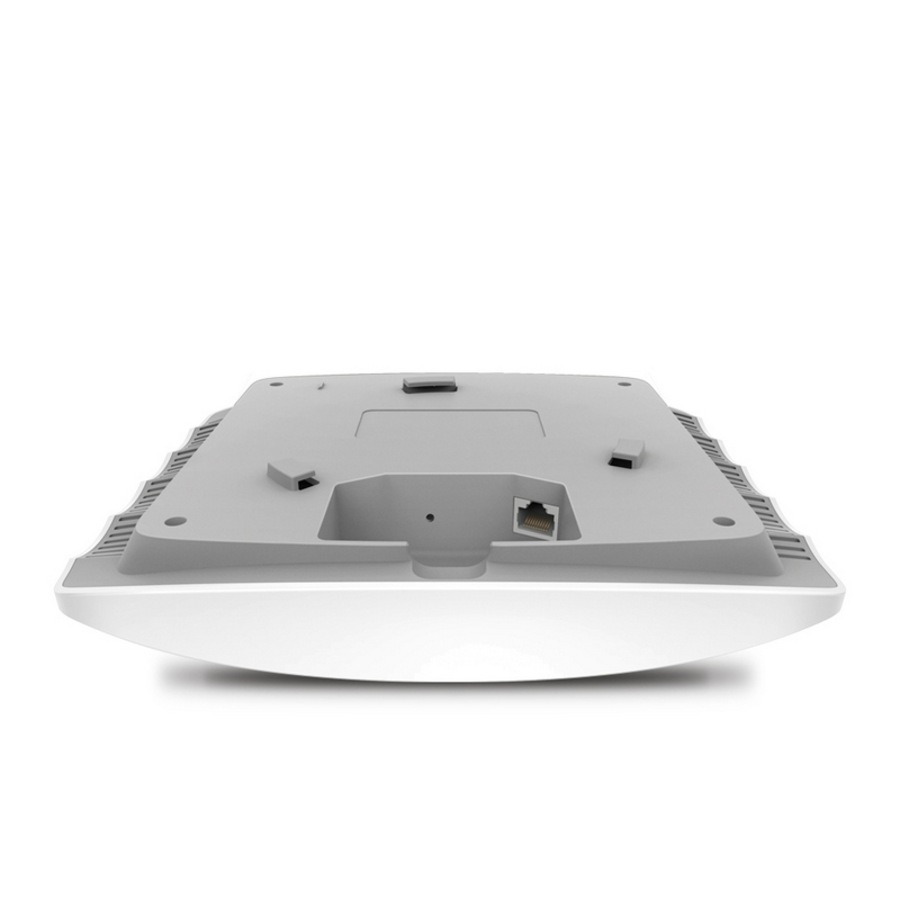

• Interface :Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af/at PoE and Passive PoE)
• Physical Security Lock :Yes
• Button :Reset
• Power Supply :- 802.3af/at PoE- 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter IS NOT Included)
• Power Consumption :EU: 9.7W
  US: 12.1W
• Dimensions ( W x D x H ) :8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
• Antenna Type :3 Internal Omni
  • 2.4 GHz: 4 dBi
  • 5 GHz: 5 dBi
• Mounting :Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

• Wireless Standards :IEEE 802.11ac/n/g/b/a
• Frequency :2.4 GHz and 5 GHz
• Signal Rate :• 5 GHz:Up to 867 Mbps
  • 2.4 GHz:Up to 450 Mbps
• Wireless Functions :• Multiple SSIDs (Up to 15 SSIDs, 8 for 2.4GHz band, 7 for 5GHz band)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS(WMM)
  • Seamless Roaming*
  • Omada Mesh*
  • Band Steering
  • Load Balance
  • MU-MIMO
  • Airtime Fairness
  • Beamforming
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
• Wireless Security :• Captive Portal Authentication*
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Rogue AP Detection
  • 802.1X Support
• Transmission Power :• CE:
  ≤20 dBm(2.4 GHz, EIRP)
  ≤23 dBm(5 GHz, EIRP)
  • FCC:
  ≤24 dBm(2.4 GHz)
  ≤22 dBm(5 GHz)

MANAGEMENT

• Omada App :Yes
• Centralized Management :• Omada Hardware Controller OC300
  • Omada Hardware Controller OC200
  • Omada Software Controller
  • Omada Cloud-Based Controller
• Cloud Access :Yes, through
  • OC300
  • OC200
  • Omada Software Controller
  • Omada Cloud-Based Controller
• Email Alerts :Yes
• LED ON/OFF Control :Yes
• Management MAC Access Control :Yes
• SNMP :v1,v2c
• System Logging Local/Remote Syslog :Local/Remote Syslog
• SSH :Yes
• Web-based Management :HTTP/HTTPS
• L3 Management :Yes
• Multi-site Management :Yes
• Management VLAN :Yes
• Zero-Touch Provisioning :Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS

• Certification :CE, FCC, RoHS
• Package Contents :• AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP223
  • Mounting Kits
  • Installation Guide
• System Requirements :Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
• Environment :• Operating Temperature: 0-40 ? (32-104 ?)
  • Storage Temperature: -40-70 ? (-40-158 ?)
  • Operating Humidity: 10-90% RH non-condensing
  • Storage Humidity: 5-90% RH non-condensing
