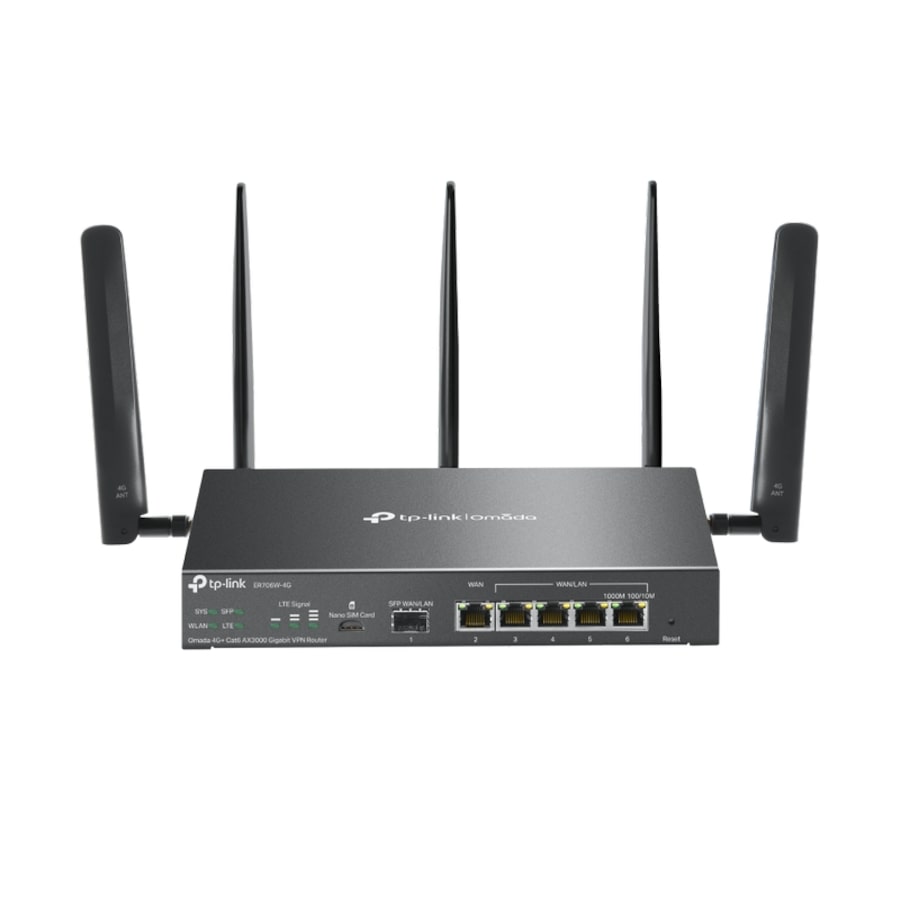

TP-Link ER706W-4G Omada 4G+ Cat6 AX3000 Gigabit VPN Router

TP-Link ER706W-4G, Omada 4G+ Cat6 AX3000 Gigabit VPN Router

• Support 4G+ Cat6:Insert a Nano SIM card to enjoy up to 300 Mbps.**
• AX3000 Dual-Band WiFi 6: Supports2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz*
• 6 Gigabit Ethernet Ports: Provide high-speed wired connectivity.
• 5 High-Gain Detachable Antennas:Extend and concentrate the Wi-Fi signals.
• Centralized Management: Cloud access and the Omada app for easy management.
• Omada Mesh:Seamlessly connects to EAPs that support mesh technology.*?
• High-SecurityVPN: SupportsIPSec / SSL / WireGuard/ OpenVPN / PPTP / L2TP VPN.?
• Learn more about Omada Cloud SDN>?

4G

• Network Type :LTE Band of EU:
  4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz)
  4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)
  3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8
  (2100/1800/850/900 MHz)
  Carrier Aggregation:
  B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
  B3+B3/B5/B7/B8/B20/B28/B38/B40/B41
  B5+B5/B7/B38/B40/B41
  B7+B7/B8/B20/B28/B32
  B8+B32/B38/B40/B41
  B20+B32/B38/B40
  B28+B32/B38/B40/B41
  B38+B38
  B40+B40
  B41+B41
• SIM Type :1x Nano SIM Card
• Frequency :Downlink: 300 Mbps;
  Uplink: 50 Mbps

SECURITY

• Access Control :Source/Destination IP Based Access Control
• Filtering :Web Group Filtering^†
  URL Filtering
  Web Security^†
• ARP Inspection :Sending GARP Packets
  ARP Scanning^†
  IP-MAC Binding
• Attack Defense :TCP/UDP/ICMP Flood Defense
  Block TCP Scan (Stealth FIN/Xmas/Null)
  Block Ping from WAN

HARDWARE FEATURES

• Interface :1 Gigabit SFP WAN/LAN Port
  1 Gigabit WAN Port
  4 Gigabit LAN/WAN Ports
• Network Media :10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
  100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
  1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
• Button :Reset Button
• Power Supply :12VDC / 2A Power Adapter
• Wi-Fi Frequency & Signal Rate :2.4 GHz: 574 Mbps
  5 GHz: 2402 Mbps (HE160)
• Flash :128 MB NAND
• DRAM :512 MB DDR4
• LED :SYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
• Dimensions ( W x D x H ) :8.9 x 5.2 x 1.4 in (226 x 131 x 35 mm) (Antenna dimensions are not
  included)
• Antenna :Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas
  LTE: Two 4.0dBi omnidirectional detachable antennas
• Mounting :Desktop/Wall-Mounting
• Max Power Consumption :EU: 17.3W

PERFORMANCE

• GRE :Unencrypted: 545.3Mbps
  Encrypted: 282.6Mbps
• WireGuard VPN :387.7Mbps
• Concurrent Session :150,000
• New Sessions /Second :5,100
• NAT (Static IP) :947.1Mbps / 940.1Mbps
• NAT(DHCP) :949.2Mbps / 941.1Mbps
• NAT(PPPoE) :942.6Mbps / 941.1Mbps
• NAT (L2TP) :875.4Mbps / 892.0Mbps
• NAT (PPTP) :881.2Mbps / 895.8Mbps
• IPsec VPN Throughput :ESP-SHA1-AES256: 652.2Mbps
  ESP-SHA256-AES256: 654.4Mbps
  ESP-SHA384-AES256: 646.5Mbps
  ESP-SHA512-AES256: 670.5 Mbps
• OpenVPN :115.5Mbps
• L2TP VPN Throughput :Unencrypted: 990.0Mbps
  Encrypted: 475.0Mbps
• PPTP VPN Throughput :Unencrypted: 1177.9Mbps
  Encrypted: 177.4Mbps
• SSL VPN Throughput :122.5Mbps
• 66 Byte Packet forwarding rate :1,453,489 pps / 1,453,488 pps
• 1,518 Byte Packet forwarding rate :81274 pps / 91275 pps

WIRELESS FEATURES

• Advanced Functions :Seamless Roaming
  Mesh (with EAP that supports Mesh)
  OFDMA
  Beamforming
  MU-MIMO
  Rate Limit: Based on SSID/Client
  Airtime Fairness
  Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
  Multiple SSIDs: 16 in total (8 per radio)
• Guest Network :Support

BASIC FUNCTIONS

• WAN Connection Type :Static IP
  Dynamic IP
  PPPoE (supports MRU Configuration)
  PPTP
  L2TP
• MAC Clone :Modify WAN Address
• DHCP :DHCP Server
  DHCPv6 PD Server (only in Standalone Mode)
  DHCP Options Customization
  DHCP Address Reservation
  Multi-IP Interfaces
  Multi-Net DHCP
• SMS :Receive / Send SMS
• IPv6 :StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
• VLAN :802.1Q VLAN
• IPTV :IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FUNCTIONS

• ACL :IP/Port/Protocol/Domain Name Filtering
• Advanced Routing :Static Routing
  Policy Routing
  RIP^†
  OSPF^†
• Bandwidth Control :IP-Based Bandwidth Control
• Load Balance :Intelligent Load Balance
  Application Optimized Routing
  Link Backup(Timing, Failover)
  Online Detection
• NAT :One-to-One NAT
  Multi-Net NAT
  Virtual Server
  Port Triggering^†
  NAT-DMZ
  FTP/H.323/SIP/IPSec/PPTP ALG
  UPnP
• Session Limit :IP-Based Session Limit

VPN

• GRE :Only in Standalone Mode
• SSL VPN :50 Tunnels
• IPsec VPN :100 IPSec VPN Tunnels
  LAN-to-LAN, Client-to-LAN
  Main, Aggressive Negotiation Mode
  DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
  IPsec Failover
  IKE v1/v2
  MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
  NAT Traversal (NAT-T)
  Dead Peer Detection (DPD)
  Perfect Forward Secrecy (PFS)
• PPTP VPN :PPTP VPN Server
  PPTP VPN Client (10)^?
  50 Tunnels
  PPTP with MPPE Encryption
• L2TP VPN :L2TP VPN Server
  L2TP VPN Client (10)^?
  50 Tunnels
  L2TP over IPSec
• OpenVPN :OpenVPN Server
  OpenVPN Client (5)^?
  55 OpenVPN Tunnels
  "Certificate + Account" Mode
  Full Mode

AUTHENTICATION

• Web Authentication :No Authentication
  Simple Password^§
  Hotspot (Local User / Voucher^§/ SMS^§/ Radius^§)
  External Radius Sever
  External Portal Sever^§
  LDAP

MANAGEMENT

• Omada App :Yes.
• Centralized Management :Omada Cloud-Based Controller
  Omada Hardware Controller (OC300)
  Omada Hardware Controller (OC200)
  Omada Software Controller
• Cloud Access :Yes.
• Service :Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
• Maintenance :Web Management Interface
  Remote Management
  Export & Import Configuration
  SNMP v1/v2c/v3
  Diagnostics (Ping & Traceroute)^†
  NTP Synchronize^†
  Port Mirroring
  CLI (only in Standalone Mode)
  Syslog Support
• Zero-Touch Provisioning :Yes. Require the use of Omada Cloud-Based Controller.
• Management Features :Automatic Device Discovery
  Intelligent Network Monitoring
  Abnormal Event Warnings
  Unified Configuration
  Reboot Schedule
  Captive P
